Yard Machines 21A-24MB700 (2017) Tiller

Model: 21A-24MB700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

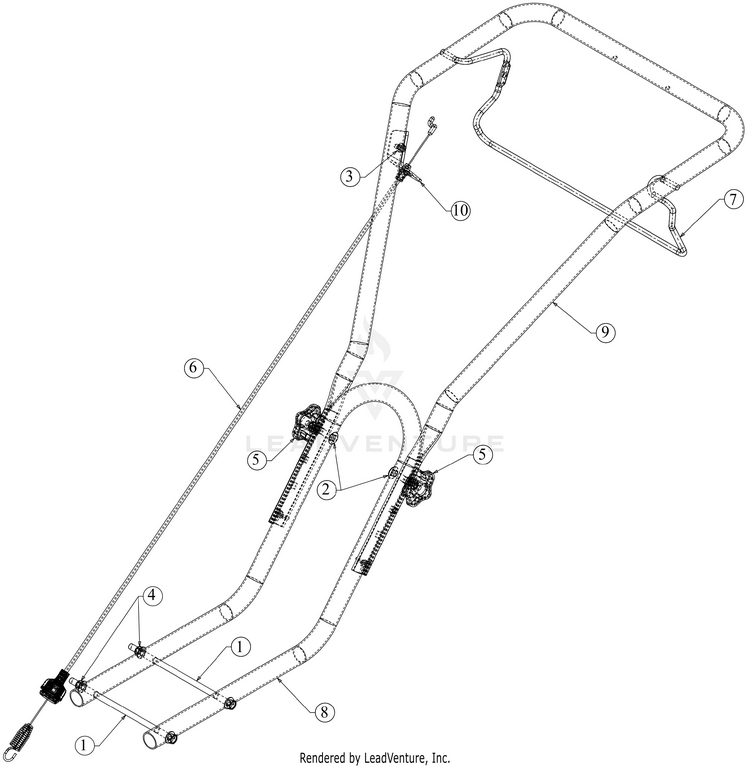

Handle

...
...
1
SCREW 5/16-18 x 7.5 GR5 MTD-710-04398
...
2
BOLT 5/16-18 X 2.00 GR5 MTD-710-0487
...
3
SCREW 1/4-20 X.500 MTD-710-0599
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
5
STAR KNOB 5/16-18 MTD-720-04072A
...
6
CLUTCH FORWARD CABLE MTD-946-04626
...
7
CLUTCH BAIL MTD-747-04508-0637
...
8
LOWER HANDLE MTD-749-04281-0637
...
9
UPPER HANDLE MTD-749-04282-0637
...
10
CABLE MOUNTING BRACKET MTD-786-04307-0637
