Yard Machines 21A-24MA700 (2014) Tiller

Model: 21A-24MA700 (2014)

Back To Assemblies

Save Part Not Listed?
product name

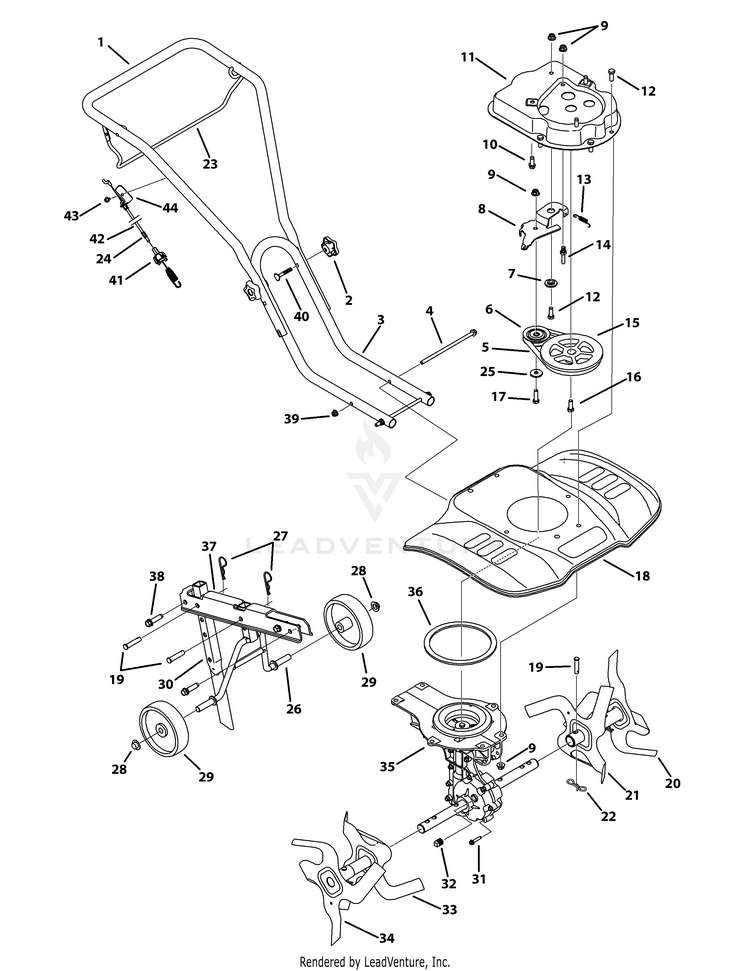

General Assembly

...
...
1
UPPER HANDLE MTD-749-04282-0637
...
2
Star Handle Knob MTD-720-04072A
...
3
LOWER HANDLE MTD-749-04281-0637
...
4
SCREW 5/16-18 x 7.5 GR5 MTD-710-04398
...
5
V-Belt MTD-954-04123
...
6
Idler Pulley MTD-756-04163
...
7
Shoulder Spacer MTD-748-04125
...
8
Idler Bracket MTD-686-04080
...
9
Flange Lock Nut x 3/8-16 MTD-712-04065
...
10
TT Screw 3/8-16 x 1.00 MTD-710-0654A
...
11
Belt Cover MTD-786-04303-0638
...
12
Hex Cap Screw 3/8-16 1.00 MTD-710-0514
...
13
Extension Spring MTD-732-0418
...
14
Stud x 33 x 1.5 x 3/8-16 MTD-738-04139
...
15
Flywheel Pulley MTD-756-04217
...
16
Hex Cap Screw 3/8-24 x 1.00 MTD-710-0591
...
17
Hex Cap Screw 3/8-16 x 1.55 MTD-710-0520
...
18
TINE SHIELD 24" (MTD RED) MTD-786-04256-0638
...
19
Clevis Pin MTD-711-0415
...
20
Outer Tine Assembly LH MTD-642-0005-0637
...
21
Inner Tine Assembly LH MTD-642-0003-0637
...
22
Cotter Pin, Bow Tie MTD-714-04043
...
23
CLUTCH BAIL MTD-747-04508-0637
...
24
Retaining Ring MTD-716-0208
...
25
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
26
Rear Wheel Tube Assembly MTD-686-04130-0637
...
27
Cotter Pin MTD-714-3020
...
28
Push Cap MTD-726-0299
...
29
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
30
DEPTH STAKE TUBE (BLACK JACK) MTD-749-04265-0691
...
31
TT Screw x 1/4-20 x 1.25 MTD-710-0809
...
32
Pipe Plug 3/8 NPT MTD-737-04202
...
33
Inner Tine Assembly RH MTD-642-0002-0637
...
34
Outer Tine Assembly RH MTD-642-0004-0637
...
35
Case Assembly MTD-918-04276B
...
36
Gasket MTD-721-04157
...
37
Wheel Bracket MTD-786-04296-0637
...
38
TT Screw 3/8-16 1.50 MTD-710-1007
...
39
Flange Lock Nut 5/16-18 MTD-712-04063
...
40
Carriage Bolt MTD-710-0487
...
41
Clutch Cable Fitting MTD-946-04626
...
42
Clutch Cable MTD-946-04626
...
43
TT Screw 1/4-20 x .50 MTD-710-0599
...
44
Cable Mount Bracket MTD-786-04307-0637
