Yard Machines 21A-121R129 (2004) Tiller

Model: 21A-121R129 (2004)

Save Part Not Listed?
product name

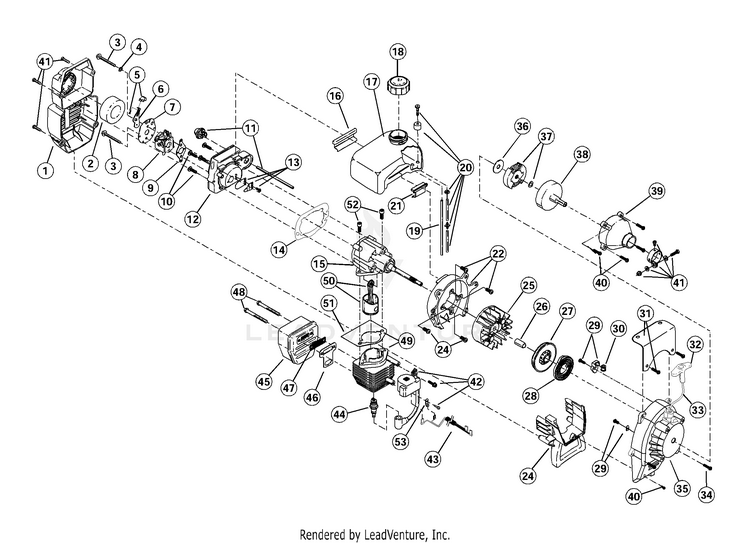

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
CARBURETOR ASSEMBLY W/FUEL LINE MTD-753-04333
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE MTD-753-04369
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B MTD-753-04306
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-683065
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, FUEL TANK GUA MTD-791-180317
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
SCREW:10-32X.625:8PH MTD-791-181912
...
35
STARTER HOUSING ASSEMBLY MTD-791-182776
...
36
Washer MTD-9162-1
...
37
Starter Clutch Assembly MTD-753-05860
...
38
Clutch Drum Assembly MTD-791-153592
...
39
ASSEMBLY, CLUTCH HOUSING RYOBI USA MTD-791-180098
...
40
Clutch Cover Screw MTD-791-181345
...
41
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
42
IGNITION MODULE ASSEMBLY MTD-753-04337
...
43
LEAD, WIRE DUAL 36 MTD-791-182880
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASSEMBLY MTD-791-182174
...
46
Muffler Gasket MTD-753-04619
...
47
SCRN:SPK ARST:A-31 MTD-791-182747
...
48
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
49
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
50
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
51
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
52
Cylinder Bolt MTD-791-182723
...
53
TAB, GROUND MTD-791-611063
...
xx
ENGINE GASKET KIT MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Zama) Not Shown MTD-791-180090
...
xx
Gasket-Diaphragm Repair Kit (Zama) Not Shown MTD-791-180091
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC;CLU:6 L MTD-753-04359
...
xx
Clutch Springs (Qty. 2) Not Shown MTD-791-181599

General Assembly

...
...
1
THROTTLE TRIGGER & CABLE ASSEMBLY MTD-791-182881
...
2
ASSEMBLY, HANDLE BAR (includes 3 & 4) MTD-791-182882
...
3
GRIP, RUBBER 5" LG MTD-791-182675
...
4
CAP, PLUG BLACK MTD-791-182676
...
5
WASH, FLAT SPECIAL MTD-4150
...
6
Bolt MTD-791-182899
...
7
Knob MTD-791-182677
...
8
ASSEMBLY, DRIVE SHAFT HOUSING MTD-791-180943
...
9
SHAFT, DRIVE MTD-791-181577
...
10
Handle Bracket Assembly (includes 11-16) MTD-791-683295
...
11
Screw MTD-791-181811
...
12
Handle Clamp MTD-791-181812
...
13
Handle Clamp MTD-791-181813
...
14
Handle Clamp MTD-791-181814
...
15
Nut MTD-791-181815
...
16
GRIP, MAIN HANDLE MTD-791-181575
...
17
HANDLEBAR, LOWER CUL MTD-791-182900
...
18
HARDWARE, MTD-791-182681
...
19
ASSEMBLY:BRACKET MTG SC SE MTD-791-147467
...
20
GD MT:HDWR KIT MTD-753-04266
...
21
GUARD, TILLER TIRE MTD-791-182683
...
22
BRACKET ASSEMBLY:WHEEL:CULT MTD-753-05020
...
23
ASSEMBLY, CULTIVATOR WHEEL MTD-791-180944
...
24
GEARBOX ASSEMBLY COMPLETE MTD-753-04489
...
25
SCREW #10-24X11/16 T-25 MTD-791-182195
...
26
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
27
ASSEMBLY, TINE FASTENER MTD-791-147473
...
28
TINE, LT/OUTER OR MTD-791-182729
...
29
TINE, LT/INNER OR MTD-791-182730
...
30
Switch MTD-791-182405
...
xx
2-CYCLE OIL Optional Accessory; Not Shown MTD-791-147543
