Yard Machines 18A-407-062 (2002) Electric Mower

Model: 18A-407-062 (2002)

Save Part Not Listed?
product name

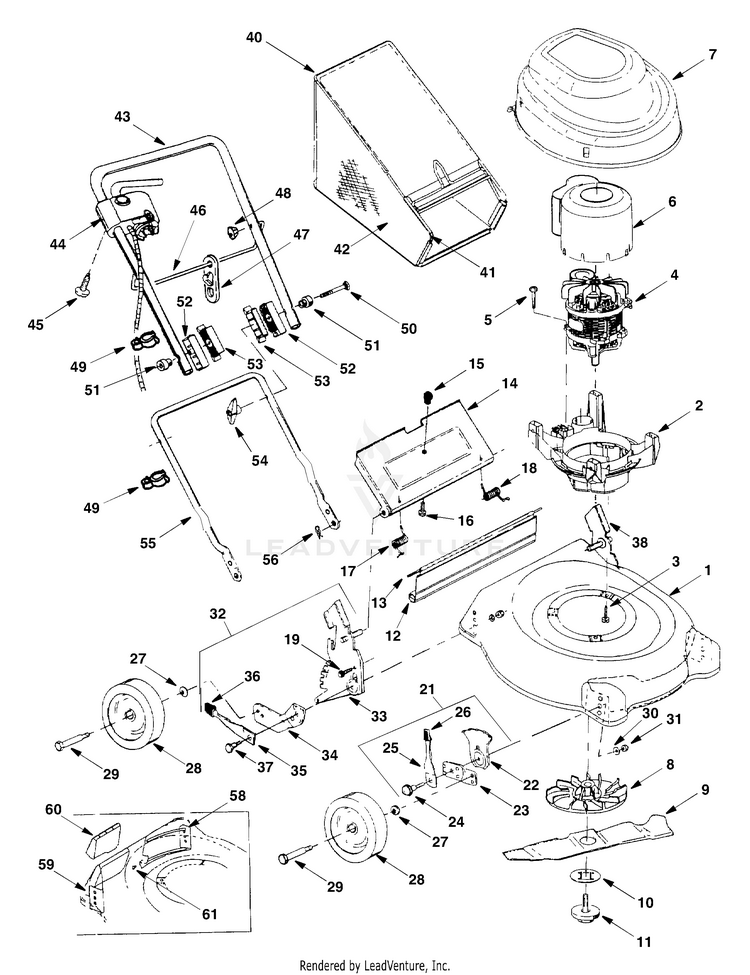

General Assembly

...
...
1
19" DECK ASSEMBLY MTD-782-0054B
...
2
Motor Support MTD-731-2399
...
3
SCREW MTD-710-1756
...
4
ELECTRIC MOTOR MTD-924-0309
...
5
SCREW MTD-710-1756
...
6
AIR GUIDE COVER MTD-731-2400
...
7
HOOD MTD-731-2383-0637
...
8
ELECTRIC FAN ASSEMBLY MTD-631-0132
...
9
19" BLADE (MULCH) MTD-942-0826
...
10
Locking Plate MTD-782-7051
...
11
BLADE SCREW MTD-624-0075
...
12
FLAP MTD-731-1261
...
13
FLAP WIRE MTD-732-0712
...
14
CHUTE DOOR MTD-782-7025-0637
...
15
KNOB MTD-720-0275
...
16
Truss Screw, 10-24 x .38" MTD-710-0192
...
17
Door Spring, RH MTD-732-0678
...
18
SPRING-DOOR (LH) MTD-932-0677
...
19
Washer Hd Screw, 1/4-14 x .625 MTD-710-0896
...
21
Height Adj. Ass'y. Comp. (R.H.) (Shown) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not shown); (Both Include Ref #22-26) MTD-753-06761
...
22
Height Adjustment Plate MTD-787-01290A
...
23
Pivot Bar MTD-15262B
...
24
Shoulder Bolt MTD-738-0507B
...
25
Front Spring Lever (Incl #26) MTD-94832
...
26
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
27
Spring Washer MTD-736-0105
...
28
Wheel MTD-734-1987
...
29
Axle Bolt MTD-738-0102
...
30
BELL WASHER MTD-936-0356
...
31
Nut MTD-712-0798
...
32
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) (Includes #33-37) MTD-682-0516-0637
...
33
Handle Bracket, RH MTD-682-0514-0637
...
34
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON MTD-14766
...
35
SPRING LEVER MTD-732-0417A
...
36
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
37
Shoulder Bolt MTD-738-0507B
...
38
Handle Bracket, LH MTD-682-0513-0637
...
?39
KIT-HANDLE BRACKET (Includes #34-38) MTD-753-05994
...
40
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0325-0637
...
41
FRONT CATCHER FRAME MTD-764-0326
...
42
BAG REPLACEMENT KIT 19" MTD-753-04867
...
43
UPPER HANDLE MTD-749-1310-0637
...
44
SWITCH-PLUG COMBO MTD-925-04074
...
45
SCREW MTD-710-1757
...
46
GUIDE ROD MTD-747-1094
...
47
CORD RESTRAINT MTD-726-0368
...
48
Wing Nut MTD-720-0279
...
49
Cable Guide MTD-731-2422
...
50
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
51
INSULATOR KNOB MTD-731-1388
...
52
Height Adjuster, Upper Handle MTD-731-1268
...
53
LOWER HANDLE INSULATOR MTD-731-1267
...
54
Star Knob MTD-720-04072A
...
55
LOWER HANDLE MTD-749-1318-0637
...
56
Internal Cotter Pin MTD-714-0104
...
?57
FRONT BAFFLE MTD-782-5025-0637
...
58
REAR BAFFLE MTD-782-5026-0638
...
59
Mulching Baffle - R.R. MTD-782-5004B
...
60
MULCH PLUG MTD-731-2386
...
61
Tap Screw, 1/4-14 x .625" MTD-710-1017

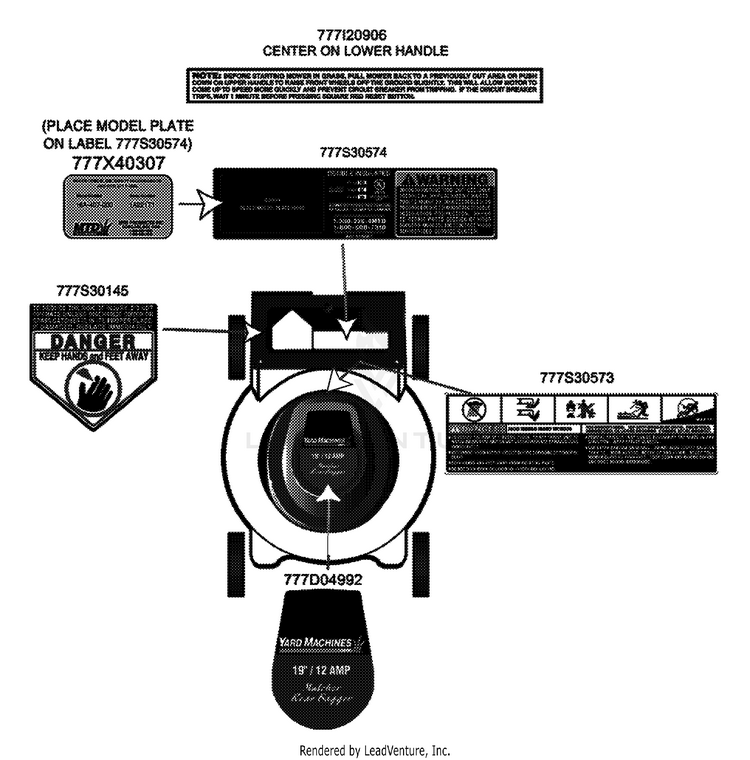

Labels

...
...
777I20906
LABEL-LWR HNDL BE MTD-777I20906
...
777X40307
Labels Place Model Plate on label 777S30574 MTD-777X40307
...
777I20906
LABEL-LWR HNDL BE MTD-777I20906
...
777S30574
Labels MTD-777S30574
...
777S30145
LABEL MTD-977S30145
...
777S30573
LABEL-DECK SIDE MTD-777S30573
...
777D04992
LABEL-MOTOR COVER MTD-777D04992
