Yard Machines 14AS848H022 (2000) Garden Tractor

Model: 14AS848H022 (2000)

Back To Assemblies

Save Part Not Listed?
product name

Electrical

...
...
7250561A
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
7250996A
UNKNOWN MTD-725-0996A
...
7251426
Solenoid MTD-925-1426A
...
7251657A
Safety Switch MTD-925-1657A
...
7251657A
Safety Switch MTD-925-1657A
...
7251381
FUSE-20A MTD-925-1381
...
7250925
Ammeter MTD-925-0925
...
7251717
Switch, Ignition MTD-925-1717
...
7251303
Outer Seat Spring Switch MTD-925-1303
...
7251439
Seat Sw. MTD-725-1439
...
7251713
REVERSE SAFETY SWITCH MTD-725-1713

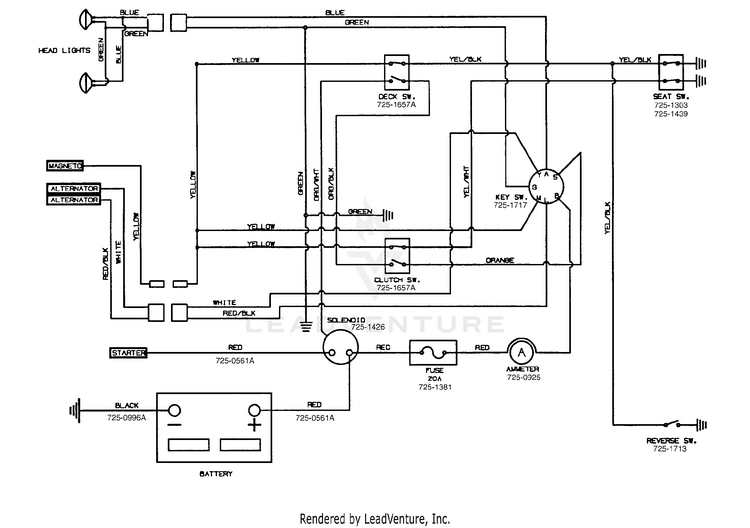

Schematic Image Zoomed
