Yard Machines 14AS845H000 (2002) Garden Tractor

Model: 14AS845H000 (2002)

Back To Assemblies

Save Part Not Listed?
product name

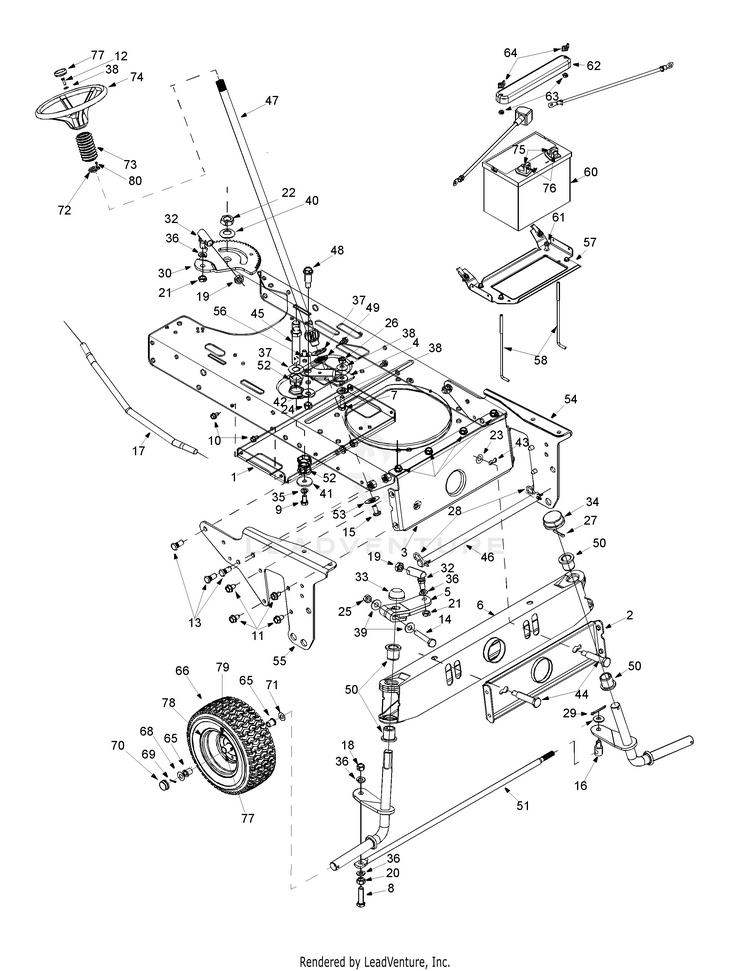

Axle & Wheels Front, Steering, Battery

...
...
1
IDLER BRACKET MTD-16888A-0637
...
2
PIVOT SUPPORT BRACKET BLACK MTD-16889A-0637
...
3
Pivot Bar Support Brkt.-Rear MTD-16890A-0637
...
4
BRACKET-BE MTD-16894
...
5
STEERING ARM ASSEMBLY BLACK MTD-983-0061A-0637
...
6
Pivot Bar MTD-683-0128B
...
7
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
8
Hex Bolt 3/8-24 x 1.50" MTD-710-0459A
...
9
Hex Bolt 5/16-18 x 0.625" MTD-710-0538
...
10
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
11
TT Screw 5/16-18 x 0.625" MTD-710-0604A
...
12
Hex Bolt 5/16-18 x 1.0" MTD-710-0643
...
13
SCREW 3/8-24 x .80 MTD-710-0793
...
14
Hex Bolt 3/8-24 x 2.5" MTD-710-1257
...
15
Pan Hd. Machine Screw MTD-710-1309
...
16
FERRULE 3/8-24 x .375 MTD-711-1661
...
17
Steering Drag Link MTD-711-1106A
...
18
Hex Lock Nut 3/8-24 MTD-712-0214
...
19
Hex Jam Nut 7/16-20 MTD-912-0240
...
20
Hex Nut 3/8-24 MTD-712-0241
...
21
Lock Nut MTD-712-0262
...
22
HEX JAM NUT 5/8-18 MTD-712-0318
...
23
Flange Lock Nut 3/8-16 MTD-912-0431
...
24
HEX NUT 3/8-16 GR5 MTD-712-3017
...
25
Lock Nut MTD-712-3054
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121
...
28
Hairpin Clip MTD-714-0149B
...
29
Cotter Pin MTD-714-0470
...
30
Steering Gear Segment: 25T MTD-717-0943C
...
?31
Loctite (TM) MTD-721-0139
...
32
Ball Joints MTD-923-0448A
...
33
Push Cap MTD-726-0341
...
34
Hub Cap MTD-931-0484A
...
35
Lock Wash. 5/16" I.D. MTD-936-0119
...
36
Lock Washer MTD-736-0169
...
37
Flat Washer MTD-736-0187
...
38
Beleville Washer MTD-736-0242
...
39
FLAT WASHER .38X.88 MTD-736-0267
...
40
Bell Washer MTD-736-0317
...
41
Flat Washer MTD-736-0343
...
42
Bell Washer MTD-736-0452
...
43
Grease: Alvania (TM) MTD-737-3007
...
44
Shoulder Screw MTD-738-0527
...
45
STEERING SEGMENT MTD-738-0768
...
46
ROD-DECK CONNECTING MTD-738-0777A
...
47
Steering Shaft Ass'y. MTD-938-0963
...
48
Shoulder Screw, .50 x .925, 3/8-16 MTD-738-0966A
...
49
BRG:HEX FLNG 5/8 MTD-941-0656A
...
50
FLANGE BEARING .760 ID MTD-741-0660A
...
51
TIE ROD MTD-747-1267
...
52
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
53
Cap, 1.25 x .16 MTD-948-0389
...
54
PIVOT SUPPORT BRACKET (LH) MTD-783-0337
...
55
PIVOT SUPPORT BRACKET (RH) MTD-783-0338
...
56
STEERING BRACE MTD-783-0465-0637
...
57
PLATE MTD-783-0346A
...
58
HOLD DOWN BATTERY ROD MTD-911-0222A
...
60
BATTERY MTD-925-1707D
...
61
Hex Washer B-Tap Scr. MTD-710-0896
...
62
BATTERY COVER MTD-731-1683
...
63
Hex Nut MTD-712-0271
...
64
WING NUT 1/4-20 MTD-712-3087
...
65
FLANGE BEARING MTD-741-0516B
...
66
Wheel See "Wheels Front" illustration and parts list MTD-NA
...
?67
SPRING CLIP MTD-727-0425A
...
68
Flat Washer MTD-736-0316
...
69
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121
...
70
Hub Cap MTD-931-0484A
...
xx
Hub Cap (Gray) MTD-734-1615A
...
xx
HUB CAP W/ MTD-734-1614A
...
xx
HUB CAP-YELLOW MTD-934-1788A
...
71
Flat Washer MTD-736-0188
...
72
Flange Bearing (Style A only) MTD-741-0587
...
73
STEERING BELLOW 9" MTD-931-0954
...
xx
STEERING BELLOW MTD-731-0559B
...
74
Steering Wheel (4 Spoke) MTD-931-0027A
...
75
Hex Lock Nut MTD-712-0291
...
76
Hex Bolt 1/4-20 x .75" MTD-710-3015
...
77
Steering Wheel Cap MTD-931-0220
...
xx
Steering Wheel Cap (Square) MTD-731-1459A
...
78
See "Wheels Front" illustration and parts list MTD-NA
...
79
TUBELESS VALVE MTD-934-0255
...
80
Oval Hd. C-Sunk Screw MTD-710-0837
...
81
End Cap, Pivot Bar (w/ Fitting) MTD-931-1291A
...
82
Grease MTD-737-3007
...
83
AXLE ASSEMBLY LH: FRONT MTD-638-0007A
...
xx
AXLE ASSEMBLY (RH) MTD-938-0008A
