Yard Machines 14AS825H062 (2002) Garden Tractor

Model: 14AS825H062 (2002)

Back To Assemblies

Save Part Not Listed?
product name

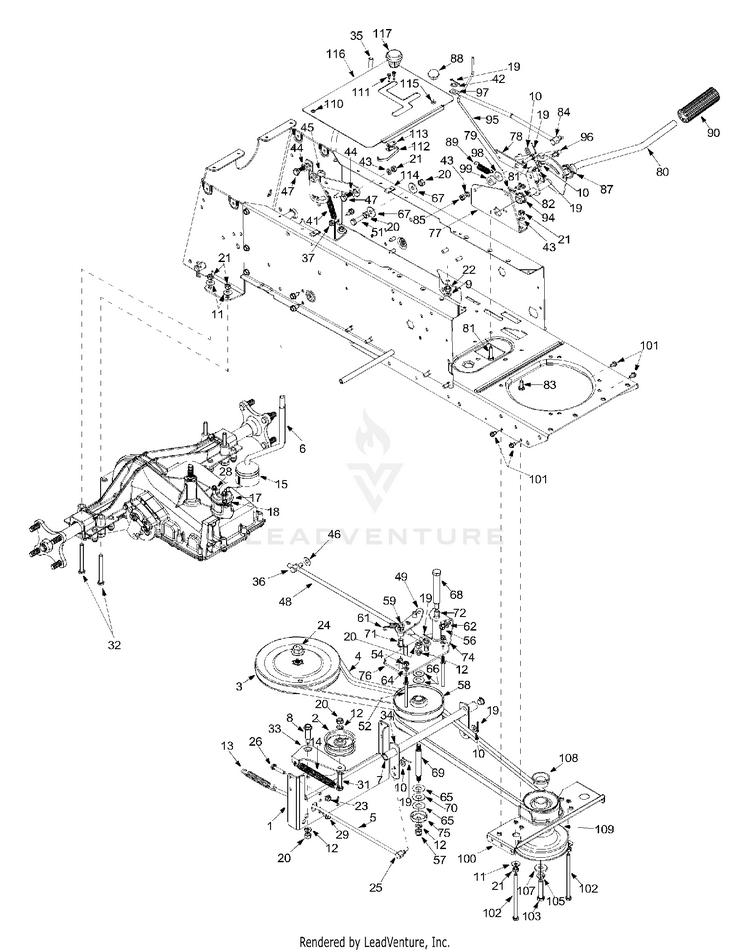

Drive, Controls, PTO

...
...
1
TRANS. TORQUE BRKT. MTD-783-0402A
...
2
Flat Idler Pulley MTD-756-04224
...
3
Transmission Pulley, 8.5 MTD-956-0665
...
xx
Spline Pulley Hub, 5/8 (Not Shown) MTD-718-04407
...
4
BELT .700 x 46" MTD-954-0446
...
5
BRAKE ROD MTD-747-0998
...
6
SHIFT LEVER 2SPD MTD-747-0981
...
7
Flange Bearing MTD-741-0491
...
8
SHOULDER SCREW .50 MTD-738-1014
...
9
L-Wash. 1/4" I.D. MTD-936-0329
...
10
FLAT WASHER MTD-736-0275
...
11
Bell Washer MTD-736-0242
...
12
Lock Washer MTD-736-0169
...
13
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
14
EXTENSION SPRING MTD-932-0384
...
15
BOOT SHIFT MTD-721-0450
...
?16
PULLEY HUB MTD-918-0771A
...
17
SHIFT COVER MTD-718-0505
...
18
Insert: Shifter MTD-718-0504
...
19
Cotter Pin MTD-714-0111
...
20
HEX NUT 3/8-16 GR5 MTD-712-3017
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
HEX NUT MTD-712-3006
...
23
HEX FLANGE NUT MTD-712-3004A
...
24
Hex Flange Nut, 7/16-20 MTD-912-0702
...
25
Ferrule MTD-711-1155
...
26
Hex Screw 5/16-18 X 1.375" MTD-710-3083
...
?27
Ab Screw 5/16-12 X 0.75" MTD-710-0726
...
28
Tt Screw 1/4-20 X 0.75" MTD-710-0642
...
29
Tt Screw 5/16-18 X 0.625" MTD-710-0604A
...
?30
Hex Screw 1/4-20 X 2.0" MTD-710-0501
...
31
Hex Screw 3/8-16 X 1.75" MTD-710-0347
...
32
Hex Screw 5/16-18 X 3.0" MTD-710-0189
...
33
BRACKET ASSEMBLY (POWDER BLACK) MTD-983-0154-0637
...
34
CROSS BRKT. TUBE ASS'Y. MTD-650-0006
...
35
SPEED LEVER ASSEMBLY MTD-647-0011
...
36
FERRULE 3/8-24 x .375 x 1.31 LG MTD-911-0723A
...
37
Hex Lock Nut 5/16-18 MTD-712-0429
...
?39
Hairpin Clip MTD-714-0104
...
41
Extension Spring 3.97" Lg. MTD-932-0429A
...
42
Fl-Wash. MTD-936-0117
...
43
Lock Wash. 5/16" I.D. MTD-936-0119
...
44
Spr. Wash. 7/16" I.D. MTD-936-0141
...
45
Flat Washer MTD-736-0192
...
46
FLAT WASHER .38X.88 MTD-736-0267
...
47
Shoulder Screw MTD-738-0296
...
48
LINK-SPEED CONTROL MTD-747-0729
...
49
TORQUE BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0115-0637
...
?50
Hex Screw 5/16-24 X 0.75" MTD-710-0157
...
51
Hex Screw 3/8-16 X 1.25" MTD-710-3005
...
52
Belt Keeper, .25 DIA X 3.0 MTD-911-1000
...
?53
Hex Nut 3/8-24 MTD-712-0241
...
54
HEX NUT MTD-712-3006
...
56
Hex Nut 5/16-24 Thd. MTD-912-3057
...
57
Hex Lock Nut 3/8-24 MTD-712-3061
...
58
V-PULLEYAR MTD-717-1578
...
59
Push Cap MTD-726-0100
...
?60
Ext. Spring .94" O.D. x 6.7 MTD-732-0459C
...
61
EXTENSION SPRING MTD-732-0568
...
62
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
UNKNOWN MTD-NA
...
65
Flat Washer 1.0" X 0.56" MTD-736-0355
...
66
Flat Washer 0.570" X 1.120" 0.062" MTD-736-0414
...
67
Bell Wash .396" X 1.140" X 0.095" MTD-736-0452
...
68
SHOULDER SCREW .625 x 3.50:3/8-2 MTD-738-0779
...
69
Shaft MTD-738-0956
...
70
THRUST BEARING MTD-941-0405
...
71
FLANGE BEARING MTD-741-0419
...
72
NYLINER BEARING MTD-741-0495
...
?73
Variable Speed Belt MTD-954-0280A
...
74
BRACKET SUPPORT MTD-17180
...
75
Retainer Cup MTD-17485
...
76
CONTROL BRKT. ASSY: VARIABLE SPEED MTD-683-0114
...
77
MOUNTING BRACKET MTD-16924A
...
78
BRACKET-LOCKOUT MTD-16980A
...
79
Plate: Sw MTD-17962
...
80
PEDAL ASS'Y. MTD-647-0021
...
81
Hex Screw 5/16-18 X 1.25" MTD-710-0528
...
82
Ab Screw MTD-710-0589
...
83
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
84
Ferrule 3/8-24 Thd. MTD-911-0832
...
85
UNKNOWN MTD-NA
...
87
Hairpin Clip MTD-714-0115
...
88
THROTTLE KNOB MTD-720-0166
...
89
EXTENSION SPRING MTD-932-0395
...
90
FOOT PAD MTD-735-0239A
...
94
FLANGE BEARING MTD-941-0225
...
95
ROD-PEDAL LOCK MTD-747-0644
...
96
BRAKE ROD LINK MTD-747-0724A
...
97
SPEED CONTROL LINK MTD-747-0726A
...
98
Shoulder Spacer MTD-748-0234
...
99
SPACER MTD-750-0214
...
100
BRACKET-BELT GUARD MTD-17358D-0637
...
101
Tt Screw 1/4-20 X 0.5" MTD-710-0500
...
102
Hex Screw 5/16-18 X 5.25" MTD-710-0833
...
103
Hex Screw 7/16-20 X 2.0" MTD-710-1002
...
105
Lock Washer 7/16 MTD-736-0171
...
107
Flat Washer 0.450 x 1.250 MTD-736-0322
...
108
Spacer MTD-750-0956
...
109
Engine Pulley MTD-756-0989
...
110
B Screw #10-16 x 0.5" MTD-710-0351
...
111
AB Screw #8-18 x 0.5" MTD-710-0227
...
112
REVERSE SAFETY SWITCH MTD-725-1713
...
113
Insulatop Nut Plate MTD-926-0320
...
114
Speed Nut: U Type MTD-726-0139
...
115
BUSHING MTD-731-0405
...
116
SHIFT COVER 2-SPD MTD-783-0348
...
117
Knob MTD-920-0232
