Yard Machines 14AS825H062 (2002) Garden Tractor

Model: 14AS825H062 (2002)

Back To Assemblies

Save Part Not Listed?
product name

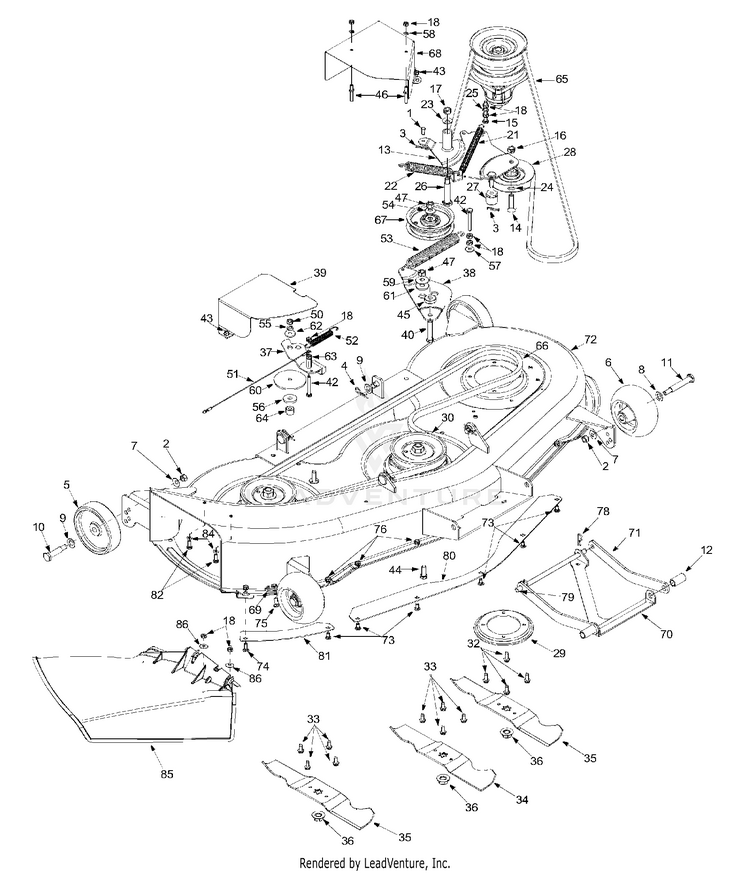

Deck Assembly H

...
...
1
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
2
HEX NUT 3/8-16 GR5 MTD-712-3017
...
3
Hairpin Clip MTD-714-0104
...
4
Click Pin MTD-714-0145
...
5
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
6
Deck Wheel w/Insert 5" Dia. MTD-753-04856A
...
7
Spring Washer MTD-736-0105
...
8
Flat Washer MTD-736-0160
...
9
Flat Washer MTD-736-0192
...
10
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
11
Shoulder Bolt MTD-938-3056
...
12
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A
...
13
IDLER BRACKET ASSEMBLY MTD-94076A-0637
...
14
Hex Screw: Special 3/8-24 x 1.50" MTD-710-0459A
...
15
Hex Screw 1/4-20 x 2.0" MTD-710-0501
...
16
Lock Nut 3/8-24 MTD-712-0214
...
17
Lock Nut 3/8-16 MTD-712-0375
...
18
HEX NUT MTD-712-3006
...
20
CONVOLUTED CONDUIT (Not shown) MTD-731-0757
...
21
Spring, Extension, .50 Dia. x 6.37 MTD-732-0308A
...
22
Spring, Extension MTD-932-0478
...
23
Bell Washer MTD-736-0105
...
24
Flat Washer MTD-736-0300
...
25
L-Wash. 1/4" I.D. MTD-936-0329
...
26
Shoulder Bolt MTD-738-0129
...
27
Spacer MTD-948-0278
...
28
Idler Pulley MTD-756-0487
...
29
PLATE-SPINDLE MTD-17982-0637
...
30
Spindle Assembly, 5.00 Dia. MTD-918-0240C
...
?31
Double Pulley Spindle Assembly MTD-918-0241B
...
32
TT Screw 5/16-18 x 0.875" MTD-710-0650
...
33
LD SCrew 5/16-18 x 0.75" MTD-710-1260A
...
34
Blade 14.88" Lg. (Middle) MTD-942-0645
...
35
46" BLADE (STAR) MTD-742-0611A-0637
...
36
HEX NUT MTD-712-0417A
...
37
Deck Brake Brkt. Ass'y. MTD-97116
...
38
Idler Bracket MTD-17213A-0637
...
39
RH Belt Cover, Deck 46" MTD-17258E
...
40
Hex Screw 3/8-24 x 2.0" MTD-710-0151
...
?41
Hex Screw 5/16-24 x 1.75" MTD-710-0409
...
42
Hex Screw 1/4-20 x 2.0" MTD-710-0501
...
43
TT Screw 1/4 - 20 x 0.5" MTD-710-0599
...
44
Hex Screw 3/8 - 24 x 1.0" MTD-710-1039
...
45
Spacer MTD-711-0242
...
46
Belt Guard Pin 1/4" Dia. MTD-911-0993
...
47
Hex Nut 3/8 - 24 MTD-712-0241
...
?48
Lock Nut 1/4 - 20 MTD-712-0291
...
50
Hex Nut 5/16-24 Thd. MTD-912-3057
...
51
CABLE ASSEMBLY MTD-727-0426
...
52
Extension Spring 3.97" Lg. MTD-932-0429A
...
53
Extension Spring 6.17" Lg. MTD-932-0594A
...
54
Bell Washer MTD-736-0105
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
FLAT WASHER .406 ID X 1 1/4 OD MTD-736-0247
...
57
SPRING WASHER BELL MTD-736-0270
...
58
L-Wash. 1/4" I.D. MTD-936-0329
...
59
Bell Washer MTD-736-0331
...
60
FLAT WASHER .323 ID x 3 x .125 MTD-736-0416
...
61
Shld. Spacer .625" I.D. MTD-938-0347
...
62
Spacer MTD-748-0234
...
63
Spacer MTD-750-0434
...
64
Spacer MTD-750-0890
...
65
V-Belt MTD-954-0350
...
66
V-Belt MTD-954-0349
...
67
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
68
Belt Cover MTD-783-0066A
...
69
Retainer Hook Bracket MTD-96606
...
70
BRACE-DIAGONAL MTD-17264
...
71
STABILIZER-DECK MTD-17347-0637
...
72
Deck Assembly MTD-683-0068B
...
73
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
74
Carriage Screw 1/4 - 20 x 0.75" MTD-710-0703
...
75
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
76
Sems Nut MTD-712-0271
...
?77
LOCK NUT 1/4 MTD-912-3027
...
78
Hairpin Clip MTD-714-0149B
...
79
CONNECTING ROD MTD-738-0392
...
80
Center Skirt MTD-783-0141
...
81
Skirt-Right Hand MTD-783-0142-0637
...
82
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
84
Push Nut MTD-726-0233
...
85
CHUTE ASSEMBLY MTD-631-05229
...
86
SPRING WASHER BELL MTD-736-0270
