Yard Machines 14AS825H062 (2001) Garden Tractor

Model: 14AS825H062 (2001)

Back To Assemblies

Save Part Not Listed?
product name

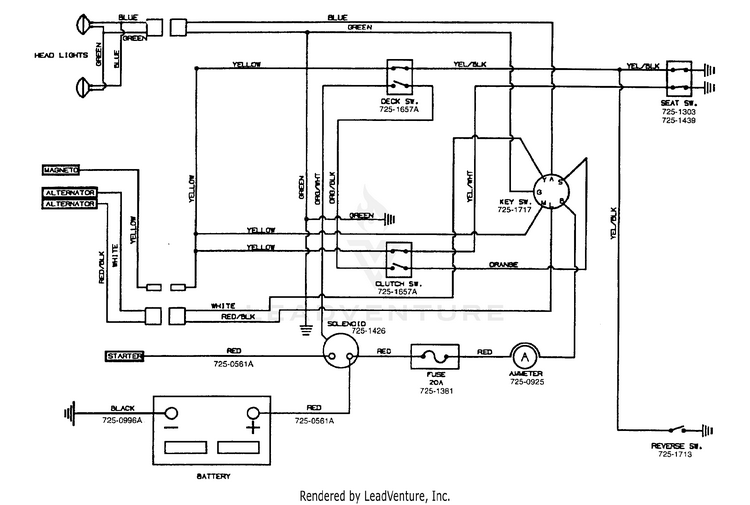

Electrical Schematic

...
...
725-0996A
Battery - Black MTD-725-0996A
...
725-0561A
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
725-1426
Solenoid MTD-925-1426A
...
725-0561A
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
725-1381
FUSE-20A MTD-925-1381
...
725-1657A
Safety Switch MTD-925-1657A
...
725-1657A
Safety Switch MTD-925-1657A
...
725-1717
Switch, Ignition MTD-925-1717
...
725-0925
Ammeter MTD-925-0925
...
725-1713
REVERSE SAFETY SWITCH MTD-725-1713
...
725-1439
SWITCH-SEAT SPRING MTD-725-1439
...
725-1303
Outer Seat Spring Switch MTD-925-1303
