Yard Machines 14AS825H062 (2001) Garden Tractor

Model: 14AS825H062 (2001)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

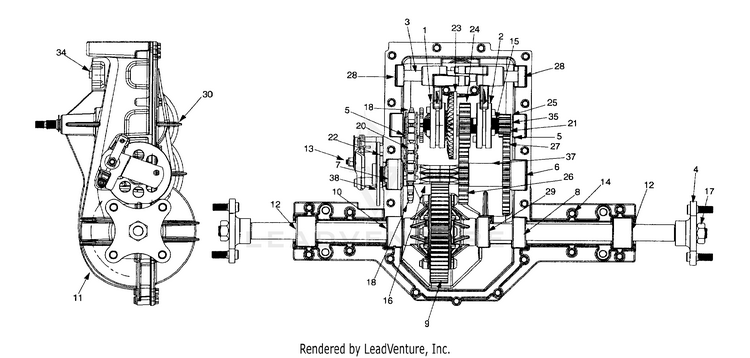

Transmission Assembly

...
...
1
REVERSE COLLAR ASSEMBLY MTD-618-0225
...
2
Collar Assembly-Hi-Lo MTD-618-0226
...
3
FORK ASSEMBLY-SHIFT MTD-618-0227A
...
4
WHEEL HUB ASSEMBLY MTD-618P0579B
...
5
DRIVE SHAFT BLOCK ASSEMBLY MTD-618-0284
...
6
OUTPUT BLOCK ASSEMBLY MTD-618-0285
...
7
OUTPUT BEARING SEAL BLOCK ASSEMBLY MTD-618-0286
...
8
INBOARD BLOCK ASSEMBLY MTD-618-0287
...
9
DIFFERENTIAL AXLE ASSEMBLY MTD-918-0368A
...
10
AXLE BLOCK ASSEMBLY MTD-618-0302
...
11
UPPER HOUSING ASSEMBLY MTD-619-0034
...
12
AXLE BLOCK ASSEMBLY MTD-641-0002A
...
13
RIGHT HAND BRAKE ASSEMBLY MTD-961-0012
...
14
TT Tap Scr. 1 /4-20 x 1" MTD-710-0788
...
15
DRIVE SHAFT MTD-711-1051A
...
16
OUTPUT SHAFT (RH) MTD-711-1216
...
17
Hex Nut 3/4-16 MTD-712-1329
...
18
SPROCKET-9T MTD-913-0446
...
?19
16-TOOTH SPROCKET MTD-713-0447
...
20
ENDLESS CHAIN .625 MTD-913-0448
...
21
Snap Ring MTD-916-0131
...
22
BRAKE PUCK MTD-917-0678
...
23
SPUR GEAR 41T MTD-917-1438A
...
24
SPUR GEAR 20T MTD-917-1439A
...
25
SPUR GEAR 10T MTD-717-1440
...
26
SPUR GEAR 27T MTD-717-1441
...
27
SPUR GEAR 37T MTD-717-1442
...
28
SHIFTER BRG. BLOCK MTD-718-0537
...
29
INNER AXLE BEARING MTD-718-0500
...
30
LOWER HOUSING MTD-719-0385
...
?31
MAIN GASKET MTD-721-0468
...
?32
AXLE GASKET (LH) MTD-721-0469
...
?33
AXLE GASKET (RH) MTD-721-0470
...
34
Shipping Plug MTD-731-1898
...
35
Fl-Wash. 5/8" I.D. x 1" O.D. MTD-736-0337
...
37
SPACER 1.13 ID x 1 MTD-750-1033A
...
38
Disc Brake MTD-761-0215
...
?39
Model I.D. Label (Not Shown) MTD-777X4001
...
xx
TRANSMISSION ASSEMBLY MTD-918-0301A
