Yard Machines 14AS825H000 (2000) Garden Tractor

Model: 14AS825H000 (2000)

Back To Assemblies

Save Part Not Listed?
product name

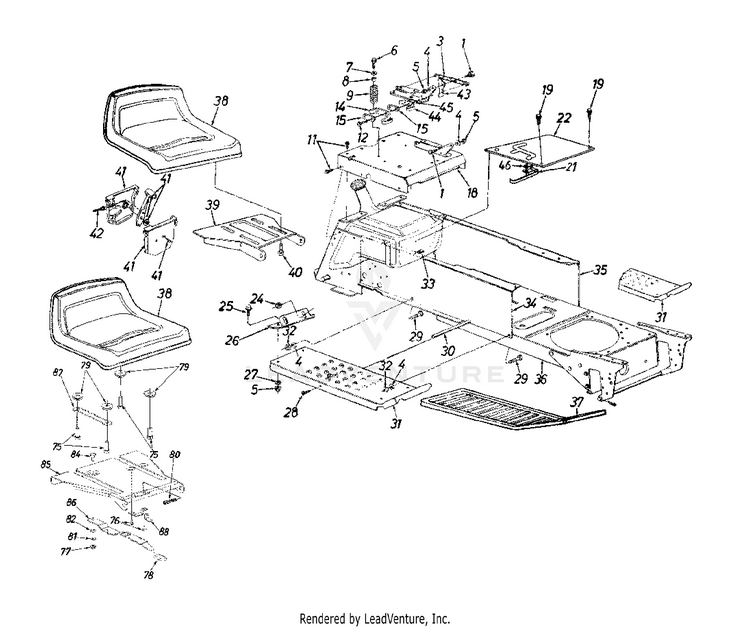

Seat, Fuel Tank, Frame

...
...
1
Shld. Bolt .437" Dia. x .162" MTD-738-0296
...
3
Extension Spring MTD-932-0581B
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Hex Wash. Hd. Tap Scr. 5/16 -18 x .7" MTD-710-0650
...
7
Fl-Wash. .344" I.D. MTD-736-0159
...
8
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
9
COMPRESSION SPRING MTD-732-0588
...
11
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" MTD-710-0726
...
12
Hx Wash. Hd. AB-Tap Scr. #8 x .5" Lg. MTD-710-0227
...
14
Outer Seat Spring Switch MTD-925-1303
...
15
Insulator Plate MTD-726-0279
...
18
PIVOT BRACKET ASSEMBLY MTD-983-0108A-0637
...
19
Truss Mach. B-Tap Scr. MTD-710-0351
...
?20
BUSHING MTD-731-0405
...
21
REVERSE SAFETY SWITCH MTD-725-1713
...
22
SHIFT COVER 2-SPD (Style 0, 3, 5, 8, 9) MTD-783-0348
...
xx
SHIFT COVER 2-SPD (Style 4, 6) MTD-783-0430
...
24
Hex Sems Nut 1/4-20 MTD-712-0271
...
25
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
26
BRACKET-FENDER (RH) MTD-15846
...
xx
Fender Bracket-L.H. MTD-15847
...
xx
BRACKET-FENDER (RH) (Style 4, 6, 9) MTD-17406
...
xx
FENDER BRACKET - L.H (Style 4, 6, 9) MTD-17407
...
27
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
28
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
29
Rib Neck Bolt 5/16-24 x .75" Lg. MTD-710-1012
...
30
ROD-RUNNING BOARD MTD-738-0435
...
31
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) MTD-16921
...
32
Hex Nut 5/16-24 Thd. MTD-912-3057
...
33
Speed Nut #10Z MTD-726-0139
...
34
FRAME (RH) S MTD-17360C
...
35
FRAME (LH) S MTD-17361D
...
36
FRAME-LOWER MTD-17359C
...
37
LARGE FOOT PAD (Optional) MTD-731-1052
...
38
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
xx
SEAT MTD-957-0360A
...
xx
MEDIUM BACK SEAT (Yellow) MTD-957-04011
...
xx
Seat - 14-1/4" High MTD-957-0350
...
xx
Seat - 14-1/4" High (Yellow) MTD-957-0350
...
39
SEAT PIVOT BRACKET MTD-783-0039A
...
40
Hex Tap Scr. 3/8-16 x .62" Lg. MTD-710-0870
...
41
Throttle Control Box Ass'y. MTD-831-0823A
...
42
Throttle Wire MTD-946-0634
...
xx
Throttle Control Wire 39" Lg. MTD-946-0630A
...
43
BRACKET-SEAT LIFT MTD-17239C
...
44
Seat Spring Switch MTD-725-1439
...
45
Insulator Boss Plate MTD-726-0278
...
46
Insulatop Nut Plate MTD-926-0320
...
75
Hex Bolt 3/8-16 x 1" Lg. Optional MTD-710-0514
...
76
Hex Washer B-Tap Scr. #10-16 x .38" Optional MTD-710-1268
...
77
LOCK NUT 1/4 Optional MTD-912-3027
...
78
Seat Adj. Grip Optional MTD-720-0309A
...
79
KIT-ADJUSTABLE SEA Optional MTD-753-0842
...
80
Compression Spring 1.5" Lg. Optional MTD-732-0499
...
81
Spring Wash. .265 I.D. x .562 O.D. Optional MTD-936-0175
...
82
Fl-Wash. .344" I.D. x .62" O.D. Optional MTD-736-0204
...
84
Shld. Bolt .34" x 1/4 -20 Thd. Optional MTD-738-0137A
...
85
SEAT PIVOT BRACKET Optional MTD-783-0607
...
86
LEVER SEAT Optional MTD-783-0609
...
87
SEAT SELECTOR Optional MTD-783-0610
...
88
Seat Stop Optional MTD-783-0611
