Yard Machines 13DF675G062 (2002) Lawn Tractor

Model: 13DF675G062 (2002)

Back To Assemblies

Save Part Not Listed?
product name

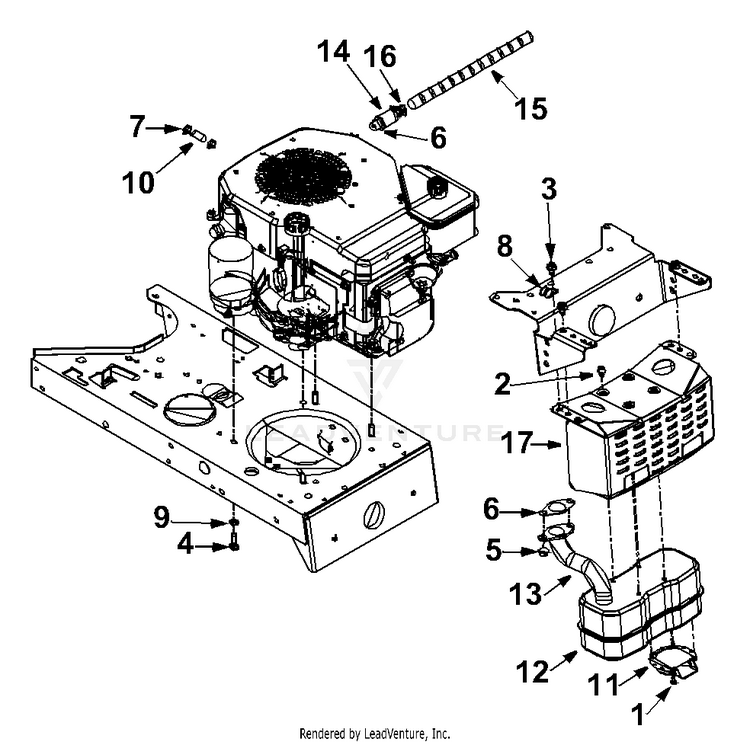

Engine Accessories Kohler

...
...
1
Hex Tap Scr. #8-32 x .38" Lg. MTD-710-0148
...
2
Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Hex Wash. TT-Tap Scr. 5.16-18 x .62" MTD-710-0604A
...
4
Hex Bolt M8 x 1.25 MTD-710-3206A
...
5
Hex Flange Nut M8 Thd. MTD-712-3086
...
6
Gasket, Exhaust Manifold MTD-KH-12-041-03
...
7
Hose Clamp MTD-726-0205
...
8
Clamp MTD-726-0272
...
9
External L-Wash. 5/16" I.D. MTD-736-0607
...
10
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
11
Muffler Deflector MTD-751-0564B
...
12
Single Inlet Muffler MTD-951-0617C
...
13
EXHAUST PIPE MTD-751-0621A
...
14
Oil Drain Valve MTD-951-10517A
...
15
Oil Drain Hose MTD-751-3141-14
...
16
Oil Drain Cap MTD-751-3142
...
17
Muffler Heat Shield MTD-783-0615E-0637
