Yard Machines 13BC762F000 (2017) Walk Behind Mower

Model: 13BC762F000 (2017)

Back To Assemblies

Save Part Not Listed?
product name

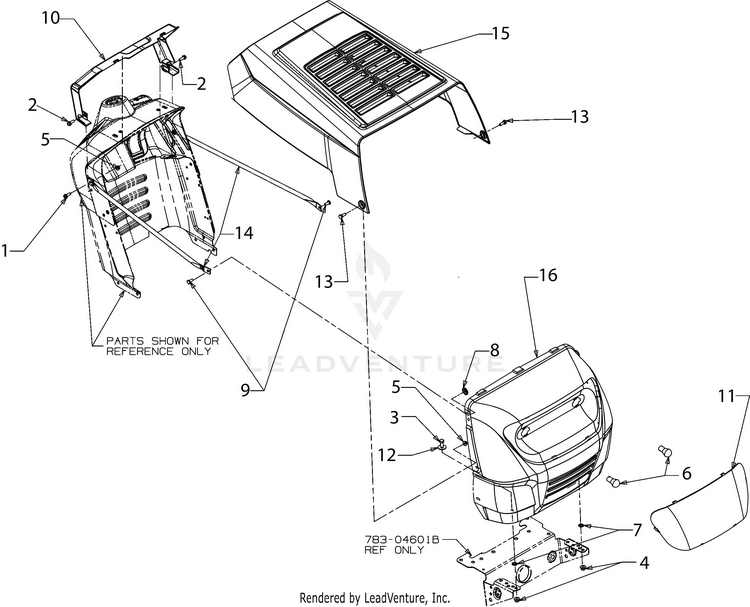

Hood & Grille

...
...
1
SCREW 1/4-20 x .750 MTD-710-0642
...
2
SCREW 1/4-15 x .750 MTD-710-0895
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
5
FLANGE LOCK NUT MTD-712-04064
...
6
MINIATUURE BULB 12V MTD-925-0963
...
7
PUSH NUT MTD-726-0201
...
8
Nut, Push-on, .25 Dia. MTD-726-04012
...
9
FLAT HEAD RIVET MTD-728-0162
...
10
DASH COLLAR MTD-731-05012B
...
11
LENS STYLE 2 MTD-731-06042
...
12
FLAT WASHER 344X1.00 MTD-736-3078
...
13
SHOULDER SCREW MTD-938-0952A
...
14
GRILLE SUPPORT ROD MTD-749-04220-0637
...
15
HOOD- 0 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-04608
...
16
GRILL-2 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-05656A
