Yard Machines 13BC762F000 (2017) Walk Behind Mower

Model: 13BC762F000 (2017)

Back To Assemblies

Save Part Not Listed?
product name

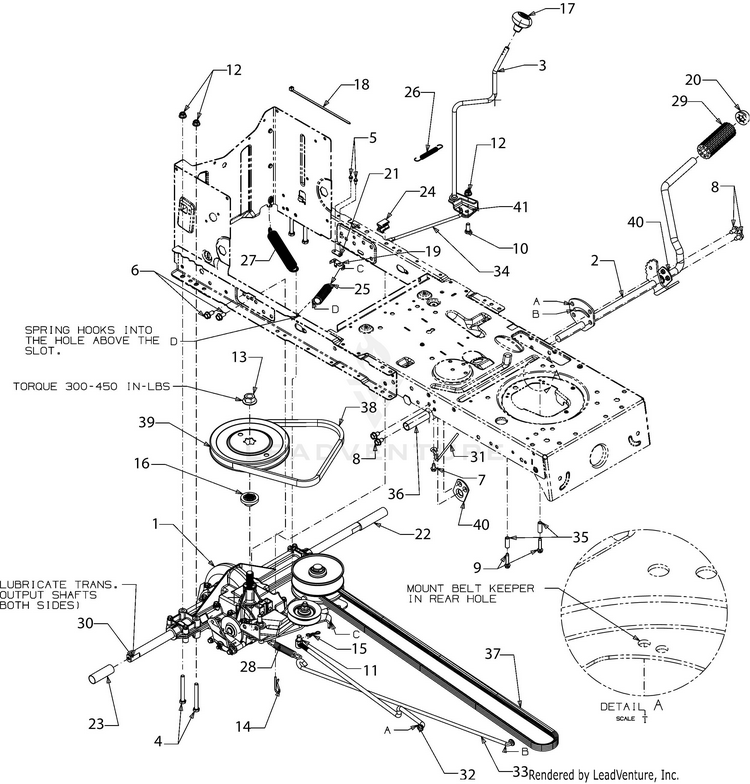

Drive

...
...
1
TRANSAXLE MTD-618P09815
...
1
VARIABLE SPEED PULLEY (4.75 OD) (Not Shown) MTD-656P05011
...
1
VARIABLE SPEED BRACKET (Not Shown) MTD-783-04567B
...
1
HEX SCREW 3/8-16 x 1.75 GR5 (Not Shown) MTD-710-0347
...
1
SCREW 5/16-18 x .375 (Not Shown) MTD-710-04731
...
1
SCREW 5/16-24 x .750 GR5 (Not Shown) MTD-710-0627
...
1
SCREW 1/4-20 x 1.50" (Not Shown) MTD-710-0778
...
1
SCREW 1/4-20 x 2.375 (Not Shown) MTD-710-1206
...
1
SCREW 5/16-18 x .750 (Not Shown) MTD-710-1260A
...
1
SCREW 1/4-20 X1.625 (Not Shown) MTD-710-1325
...
1
CROSS PIN .500 x 2.75 (Not Shown) MTD-711-04769
...
1
INPUT SHAFT (Not Shown) MTD-711-1109
...
1
NUT (Not Shown) MTD-712-04065
...
1
ACTUATING ARM (RH) (Not Shown) MTD-717-0700
...
1
PINION INPUT 14T (Not Shown) MTD-717-1464
...
1
ANTI ROTATION BRACKET (Not Shown) MTD-718-0150
...
1
BEARING CUP (Not Shown) MTD-718-04261
...
1
CLUTCH COLLAR (Not Shown) MTD-718-04381P
...
1
OIL SEAL (Not Shown) MTD-721-0213
...
1
WIRE RING (Not Shown) MTD-732-0614
...
1
WASHER-5/16 x 1.25X 1.27 (Not Shown) MTD-736-0343
...
1
FLAT WASHER (Not Shown) MTD-736-0371
...
1
FLAT WASHER .632X1.00X.16 (Not Shown) MTD-736-04296
...
1
THRUST WASHER (Not Shown) MTD-736-0494
...
1
FLANGE BEARING 5/8 x 3/4 x 15/16 (Not Shown) MTD-741-04442
...
1
SLEEVE BEARING .75X1.00X1.00 (Not Shown) MTD-741-05060
...
1
FLANGE BEARING .625X.75X.75 (Not Shown) MTD-741-05096
...
1
DETENT BALL .250 (Not Shown) MTD-741-0862
...
1
BRACKET ASSEMBLY (Not Shown) MTD-753-05147
...
1
V-IDLER PULLEY A x 3.06 OD (Not Shown) MTD-756-04325
...
1
BRAKE DISC (Not Shown) MTD-761-0202
...
1
DETENT SHAFT ASSEMBLY (Not Shown) MTD-911-05050A
...
1
FWD/REV SHAFT ASSEMBLY (Not Shown) MTD-911-05051
...
1
NUT (Not Shown) MTD-912-0273
...
1
Retaining Ring 7/16" Ext. (Not Shown) MTD-716-0108
...
1
"E" - Ring (Not Shown) MTD-716-0231
...
1
BEVEL GEAR 42T (Not Shown) MTD-917-04479B
...
1
BRAKE PUCK (Not Shown) MTD-917-0678
...
1
PUCK PLATE (Not Shown) MTD-917-0682
...
1
MITER GEAR 10T (Not Shown) MTD-917-1446B
...
1
UPPER HOUSING ASSEMBLY (Not Shown) MTD-919-04187A
...
1
LOWER HOUSING (Not Shown) MTD-919-04329B
...
1
SEAL .750 x 1.00 x .125 (Not Shown) MTD-921-0338
...
1
DETENT SHAFT SPRING (Not Shown) MTD-932-05125
...
1
TORSION SPRING (Not Shown) MTD-932-0742
...
1
THRUST WASHER (Not Shown) MTD-936-0335
...
1
FLAT WASHER (Not Shown) MTD-936-0336
...
1
FLAT WASHER (Not Shown) MTD-936-0337
...
1
FLAT WASHER (Not Shown) MTD-936-0349
...
1
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. (Not Shown) MTD-736-0351
...
1
Fl-Wash. .760" I.D. x 1.5" O.D. (Not Shown) MTD-736-0445
...
1
THRUST WASHER (Not Shown) MTD-936-0492
...
1
THRUST WASHER (Not Shown) MTD-936-0493
...
1
THRUST WASHER (Not Shown) MTD-736-0495
...
1
SHOULDER SPACER (Not Shown) MTD-938-0347
...
1
NEEDLE BEARING (Not Shown) MTD-941-0335
...
1
Actuating Pin 5/16" Dia. (Not Shown) MTD-741-0343
...
1
BALL BEARING (Not Shown) MTD-941-0600
...
1
RIGHT HAND BRAKE (Not Shown) MTD-961-0001
...
1
BRAKE YOKE (Not Shown) MTD-961-0198B
...
2
PEDAL ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-647-04034C
...
3
SHIFT LEVER ASSEMBLY MTD-647-04266B
...
4
HEX SCREW 5/16-18 x 2.75 MTD-710-0176
...
5
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
SCREW 1/4-20 X.500 MTD-710-0599
...
8
SCREW 5/16-18 x .625 MTD-710-0604A
...
9
SCREW 1/4-20 x 1.25 MTD-710-0809
...
10
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
11
FERRULE 3/8-24 x .375 MTD-711-06103
...
12
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
13
FLANGE NUT W/HUB MTD-712-0700
...
14
COTTER PIN MTD-914-0209
...
15
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
16
PULLEY HUB MTD-718-04407
...
17
SHIFT KNOB MTD-720-04028
...
18
7" CABLE TIE MTD-725-0157
...
19
SAFETY SPRING SWITCH MTD-725-1644
...
20
PUSH CAP MTD-726-0214
...
21
INSULATOR PLATE MTD-926-0320
...
22
SLEEVE MTD-731-04602
...
23
SLEEVE MTD-731-04604
...
24
SHIFT ROD BEARING MTD-731-06894A
...
25
EXTENSION SPRING MTD-732-04306
...
26
EXTENSION SPRING .38 OD x 3.25 LG MTD-732-04488
...
27
EXTENSION SPRING .94 x 6.75 MTD-732-04746
...
28
EXTENSION SPRING MTD-732-0716D
...
29
FOOT PAD MTD-735-0239A
...
31
BELT KEEPER ROD MTD-747-04969
...
32
VARIABLE SPEED ROD MTD-747-05186
...
33
BRAKE ROD MTD-747-05188
...
34
SHIFT ROD MTD-747-05244
...
35
SPACER MTD-750-0566A
...
36
SPACER-5/8 ID x 2. MTD-750-0802
...
37
V-BELT 70.90 MTD-954-04249A
...
37
GENUINE FACTORY PARTS® Transmission Drive Belt 754-0429A, 954-04249A Retail Packaged Part MTD-490-501-F006
...
38
V-BELT 5L x 35.25 MTD-954-05040
...
38
Troy-Bilt TRANSMISSION DRIVE BELT (-05040) Retail Packaged Part MTD-490-501-Y087
...
39
V- PULLEY W/HUB MTD-956-04002
...
40
PEDAL SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04536B
...
41
SHIFT ADJUSTMENT BRACKET MTD-783-04595A
