Yard Machines 13BC762F000 (2016) Lawn Tractor

Model: 13BC762F000 (2016)

Back To Assemblies

Save Part Not Listed?
product name

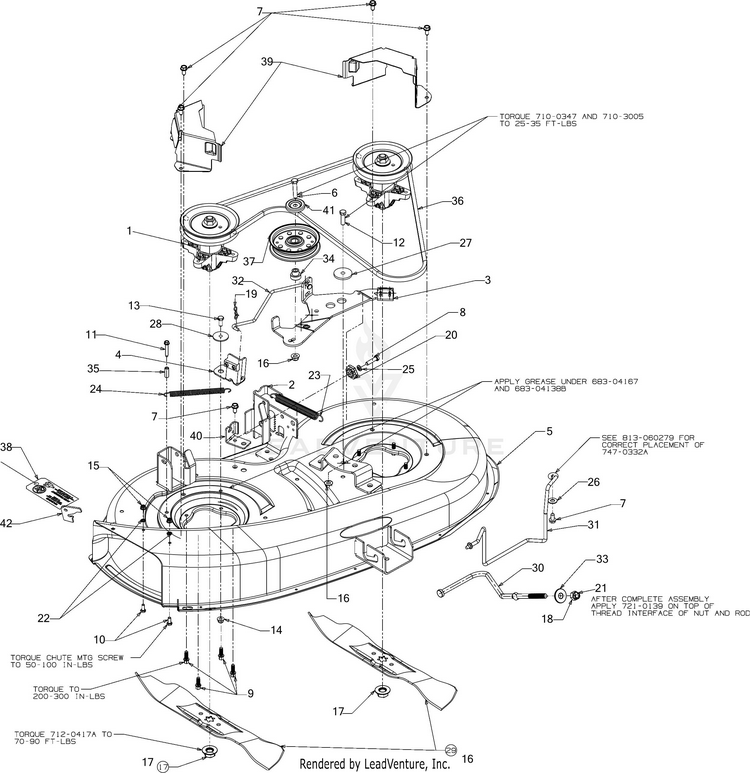

Deck

...
...
1
SPINDLE ASSEMBLY MTD-918-04474B
...
1
FLANGE NUT 5/8-18 Not Shown MTD-712-05134
...
1
FLAT WASHER .760ID X1.49OD x .06 Not Shown MTD-736-0188
...
1
SPACER .8 x 1.1 x 1.322 LG Not Shown MTD-750-1000
...
1
DECK PULLEY 5.75 DIA Not Shown MTD-756-05097
...
1
SHIELD-BRG DECK Not Shown MTD-783-08435
...
1
SPINDLE SHAFT 5.50 Not Shown MTD-938-04241
...
1
BALL BEARING Not Shown MTD-741P0919B
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
42" DECK BRAKE ASSEMBLY MTD-683P04138C
...
3
IDLER BRACKET Not Shown MTD-783-04491F
...
4
Brake Assembly, Deck MTD-983-04167
...
4
POP RIVET Not Shown MTD-928-0173
...
4
SPINDLE BRAKE PAD Not Shown MTD-761-04017
...
3
POP RIVET Not Shown MTD-928-0173
...
3
SPINDLE BRAKE PAD Not Shown MTD-761-04017
...
5
38" Deck Assembly MTD-983-04263-0637
...
6
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
7
SCREW 5/16-18 x .750 MTD-710-04484
...
8
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
9
SCREW 5/16-18 x .875 MTD-710-06322
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
11
SCREW 1/4-20 x 1.50" MTD-710-0778
...
12
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
15
FLANGE LOCK NUT MTD-712-04064
...
16
NUT MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
NUT MTD-712-04243
...
19
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
20
DECK ADJUSTMENT GEAR MTD-917-04074
...
38
(NOT SERVICEABLE) (NOT SERVICEABLE) MTD-NA
...
22
RETAINER-BOLT .25ID x .50OD MTD-726-0233
...
23
EXTENSION SPRING MTD-732-04280B
...
24
EXTENSION SPRING MTD-732-04287
...
25
LOCK WASHER 5/16 MTD-936-0119
...
26
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
27
SHOULDER SPACER MTD-738-04162C
...
28
SHOULDER SPACER MTD-738-04166
...
29
19.38" BLADE (3N1) MTD-942-0610A
...
29
Genuine Factory Parts 38" BLADE SET(STAR) Retail Packaged Part MTD-490-110-M114
...
29
38" BLADE SET (0610A) Retail Packaged Part MTD-490-110-M078
...
30
FRONT DECK ADJUSTMENT ROD MTD-747-04322
...
31
BELT KEEPER ROD MTD-747-04332A
...
32
BRAKE CONTROL ROD MTD-747-04381
...
33
LIFT PIVOT CUP MTD-748-04069A
...
34
SHOULDER SPACER MTD-748-05029A
...
35
SPACER MTD-750-0566A
...
36
V-BELT A SEC x 77.15 MTD-954-04062
...
36
BELT-DECK DRIVE 38" LT-5 NLAUD Retail Packaged Part MTD-490-501-M043
...
36
BELT-DECK DRIVE 38" LT-5 NLAUD Retail Packaged Part MTD-490-501-M043
...
37
IDLER PULLEY 4.25 DIA MTD-756-05042
...
39
BELT COVER MTD-783-04602C-0637
...
40
DECK CABLE BRACKET (POWDER BLACK) MTD-783-04740-0637
...
41
IDLER PULLEY CAP MTD-783-08389
...
42
(NOT SERVICEABLE) (NOT SERVICEABLE) MTD-NA
...
21
LOCTITE SEALANT (NOT SERVICEABLE) (NOT SERVICEABLE) MTD-NA
