Yard Machines 13BC762F000 (2016) Lawn Tractor

Model: 13BC762F000 (2016)

Back To Assemblies

Save Part Not Listed?
product name

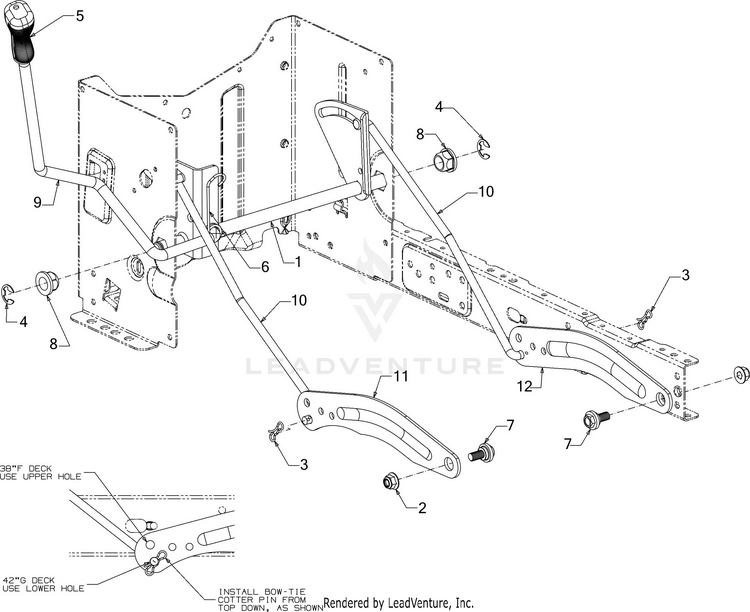

Deck Lift

...
...
1
LIFT SHAFT ASSEMBLY MTD-683-04155A-0637
...
2
NUT MTD-712-04065
...
3
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
4
E-RING MTD-716-0106A
...
5
HANDLE GRIP MTD-720-0311
...
6
TORSION SPRING MTD-732-04225
...
7
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
8
FLANGE BEARING MTD-941-0225
...
9
DECK LIFT HANDLE MTD-747-04282
...
10
LIFT ROD MTD-747-04393
...
11
DECK LIFT ARM (RH) MTD-783-04494C-0637
...
12
DECK LIFT ARM (LH) MTD-783-04711C-0637
