Yard Machines 13BC762F000 (2015) Lawn Tractor

Model: 13BC762F000 (2015)

Back To Assemblies

Save Part Not Listed?
product name

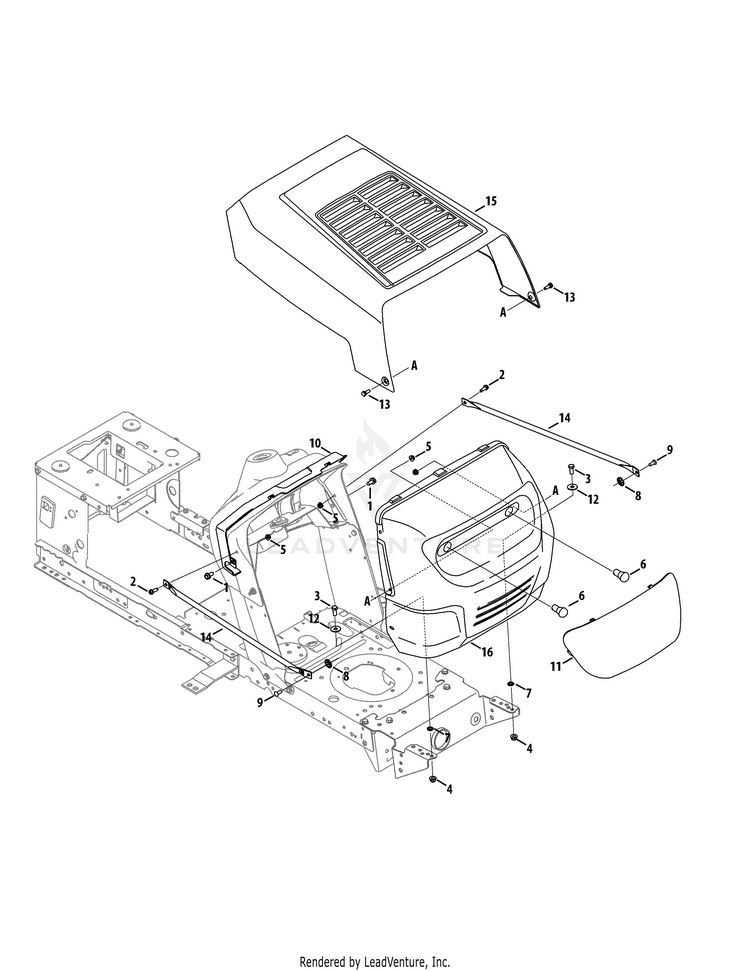

Hood 2 Style

...
...
1
Screw, 1/4-15 x .750 MTD-710-0895
...
2
Screw, 1/4-20 x .750 MTD-710-0642
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
Flangelock Nut, 5/16-18 MTD-712-04063
...
5
Flangelock Nut, 1/4-20 MTD-712-04064
...
6
Miniature Lamp 12V Socket MTD-925-0963
...
7
Speed Nut, .3125 MTD-726-0201
...
8
Nut, Push-on, .25 Dia. MTD-726-04012
...
9
Flat Head Rivet, 1/4" MTD-728-0162
...
10
Dash MTD-731-05012B
...
11
Lens MTD-731-06042
...
12
Flat Washer, .344 x 1.0 x .063 MTD-736-3078
...
13
Shoulder Bolt, 1/4-20 x .375 x .125 MTD-938-0952A
...
14
Grill Support Rod MTD-749-04220-0637
...
15
Hood MTD-783-04608-0638
...
16
Grill MTD-783-05656A-0638
