Yard Machines 13B2775S000 (2016) Attachment

Model: 13B2775S000 (2016)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

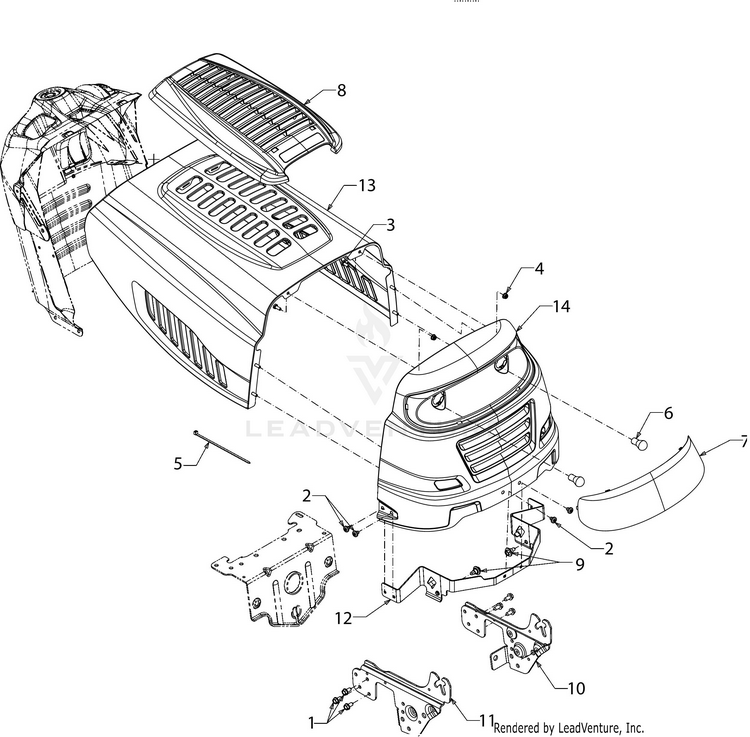

Hood & Grille

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 5/16-18 x .375 MTD-710-04593
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
FLANGE LOCK NUT MTD-712-04064
...
5
7" CABLE TIE MTD-725-0157
...
6
MINIATUURE BULB 12V MTD-925-0963
...
7
GRILLE LENS 1 STYLE MTD-731P04949A
...
8
HOOD COVER MTD-731-05522A
...
9
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
10
SUPPORT BRACKET (LH) MTD-783-05327B-0637
...
11
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
12
HOOD PIVOT BRACKET MTD-783-05454-0637
...
13
HOOD-5-STYLE MTD-783-05683-0638
...
14
GRILLE-1 STYLE MTD-783-05685A-0638
