Yard Machines 13AT604G755 (2004) Lawn Tractor

Model: 13AT604G755 (2004)

Back To Assemblies

Save Part Not Listed?
product name

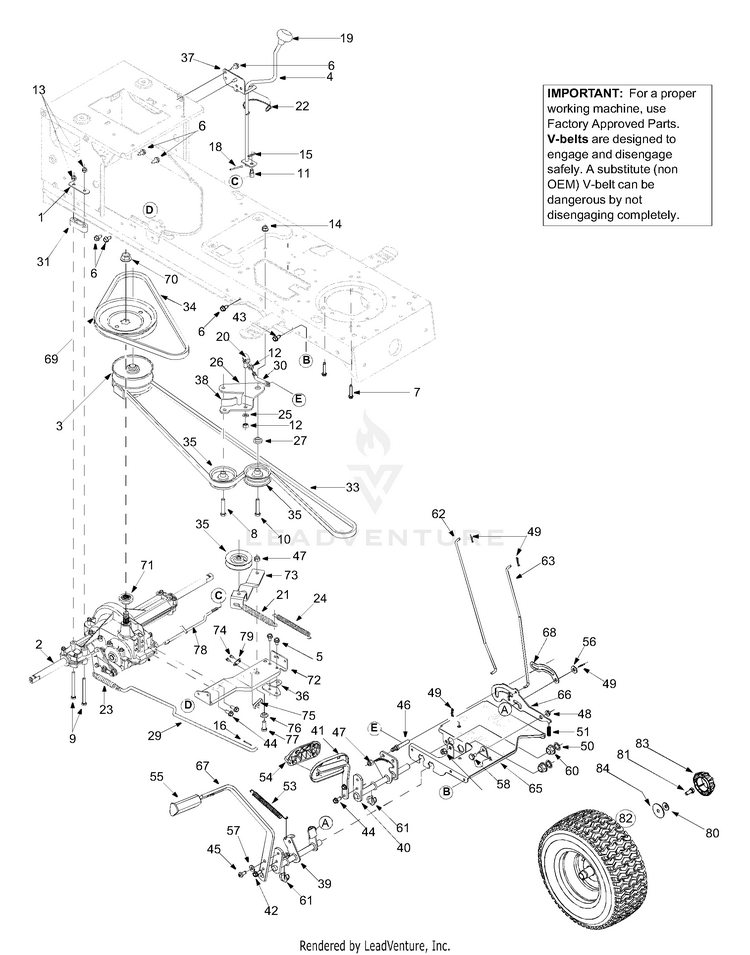

Drive, Controls, Wheels Front

...
...
1
Transaxle Mounting Bracket MTD-17840-0637
...
2
Transmission Assembly MTD-753-05851
...
3
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
xx
SERVICE REPLACEMENT KITLAC (Not shown) MTD-753-06035
...
xx
Hex Bolt 5/16-24 x .75" Lg. (Not shown) MTD-710-0627
...
xx
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. (Not shown) MTD-710-0642
...
xx
Cup-Bearing (Not shown) MTD-718-04012
...
xx
Washer-FL .322 ID x 1.25 x .060 (Not shown) MTD-736-0362
...
xx
Bearing-Ball (Not shown) MTD-941-0600
...
4
Shift Lever Assembly MTD-647-04020
...
5
TT Screw 5/16-18 x 0.5 MTD-710-0607
...
6
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
7
TT Screw 1/4-20 x 1.25 MTD-710-0809
...
8
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
9
Hex Bolt 5/16-18 x 3.5 MTD-710-1266
...
10
Hex Bolt 3/8-16 x 2.0 MTD-710-3144
...
11
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
12
Hex Nut 3/8-24 MTD-712-0241
...
13
Hex Lock Nut 5/16-18 MTD-712-0429
...
14
Flange Lock Nut 3/8-16 MTD-912-0431
...
15
Hairpin Clip MTD-714-0104
...
16
Cotter Pin MTD-714-0111
...
17
Cotter Pin MTD-914-0209
...
18
Cotter Pin MTD-714-0470
...
19
Shift Knob MTD-720-04028
...
20
Ball Joint, 3/8-24 MTD-923-3018
...
21
EXTENSION SPRING MTD-932-0384
...
22
Spring Clip MTD-732-0525
...
23
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
24
Extension Spring MTD-732-0963
...
25
Lock Washer 3/8 MTD-736-0169
...
26
Grease MTD-737-3007
...
27
Shoulder Spacer MTD-738-0372B
...
28
Rod, Shift MTD-747-04146C
...
29
BRAKE ROD MTD-747-04164
...
30
IDLER ADJUSTMENT ROD MTD-747-1127
...
31
Transaxle Spacer MTD-948-0334
...
32
Spacer MTD-750-0566A
...
33
Drive Belt MTD-954-0467A
...
34
Variable-speed Belt MTD-954-0468
...
35
Flat Idler Pulley MTD-756-04224
...
xx
SCREW 3/8-16X1.25 (Not shown) MTD-710-3290
...
36
SHIFT BRACKET MTD-783-04283
...
37
SHIFT BRACKET F-N-R MTD-783-04360
...
38
Double Idler Bracket: Center MTD-783-04442
...
39
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
40
SPEED CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0032A-0637
...
41
CONTROL PEDAL ASSEMBLY MTD-683-0266
...
42
TT Screw 5/16-18 x 0.875 MTD-710-0650
...
43
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
44
LD Screw 5/16-18 x 0.75 MTD-710-1260A
...
45
TT Screw 5/16-18 x 0.75 MTD-710-1611B
...
46
KIT-NEUT RTN BRACKET MTD-753-04872
...
47
Hex Lock Nut 3/8-16 MTD-712-0130
...
48
HEX FLANGE NUT MTD-712-3004A
...
49
Cotter Pin MTD-714-0104
...
50
Push Nut MTD-712-04016
...
51
SPRING MTD-732-0335
...
53
Extension Spring MTD-732-0963
...
54
Control Pad MTD-735-0662
...
55
Brake Pedal Pad MTD-735-3049A
...
56
Flat Washer MTD-736-0262
...
57
FLAT WASHER MTD-936-3008
...
58
Shoulder Bolt MTD-938-0155
...
60
FLANGE BEARING MTD-941-0225
...
61
Hex Flange Bearing: Split MTD-741-3065B
...
62
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
65
Steering Support Bracket MTD-783-04612-0637
...
66
LOCKOUT BRACKET MTD-783-0732A
...
67
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
68
KIT-NEUTRAL RETURN BRACKET MTD-783-0780B
...
69
Pulley, V-Type, 7.25 dia. MTD-956-04002
...
70
Flange Nut 9/16-18 MTD-712-0700
...
71
Spline Pulley Hub, 5/8 MTD-718-04407
...
72
TORQUE BRACKET KIT MTD-753-05343
...
73
TORQUE BRACKET KIT MTD-753-05343
...
74
AB Screw #8-18 x 0.5 MTD-710-0227
...
75
SAFETY SPRING SWITCH MTD-725-1644
...
76
SPACER MTD-950-0736
...
77
Hex Bolt 3/8-16 x 1.0 MTD-710-0514
...
78
Rod, Shift MTD-747-04146C
...
79
Insulatop Nut Plate MTD-926-0320
...
80
Bell Washer MTD-736-0242
...
81
Hex Cap Screw MTD-710-0627
...
82
Wheel Assembly MTD-634-0104
...
xx
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
xx
TUBELESS VALVE MTD-934-0255
...
xx
TIRE-20X8 MULTI TRAC MTD-734-1730
...
83
HUB CAP MTD-731-2290B
...
84
Flat Washer MTD-736-0430
