Yard Machines 13AS698G088 (2001) Lawn Tractor

Model: 13AS698G088 (2001)

Back To Assemblies

Save Part Not Listed?
product name

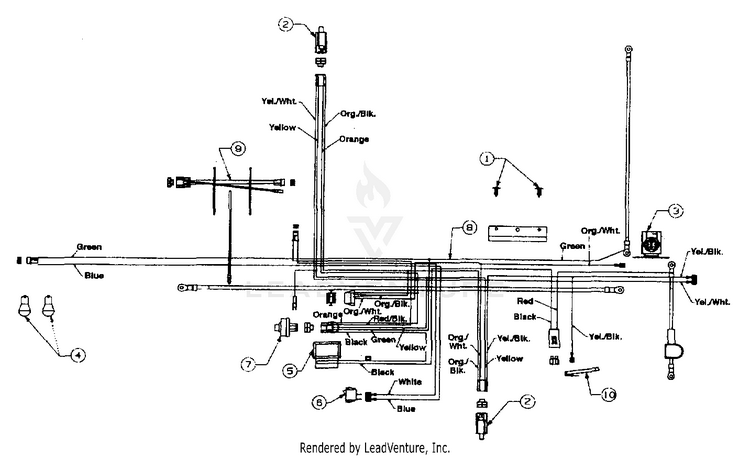

Electrical (Kohler)

...
...
1
Ratchet MTD-726-3046
...
2
Safety Switch MTD-925-1657A
...
3
Solenoid MTD-925-1426A
...
4
Miniature Lamp 12V Socket Type MTD-925-0963
...
5
Ammeter MTD-925-0925
...
6
Light Switch MTD-925-0634
...
7
Ignition Switch MTD-925-0267B
...
8
HARNESS ASSEMBLY MTD-629-0303B
...
9
HARNESS ADAPTER MTD-629-0209
...
10
HARNESS ASSEMBLY-MONIT MTD-629-0132
Schematic Image Zoomed
