Yard Machines 13AS695H372 (1998) Lawn Tractor

Model: 13AS695H372 (1998)

Back To Assemblies

Save Part Not Listed?
product name

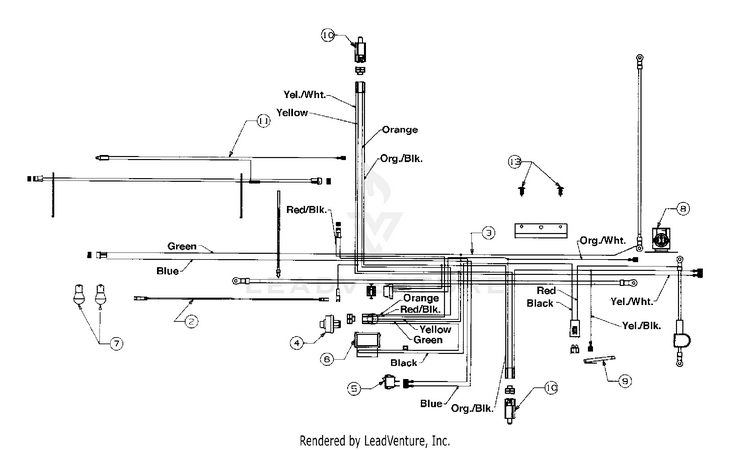

Electrical/Switches (Twin Cylinder)

...
...
2
HARNESS ADAPTER MTD-629-0208
...
3
HARNESS Code N MTD-929-0302E
...
xx
HARNESS ASSEMBLY Code N MTD-629-0301E
...
4
Ignition Switch MTD-925-0267B
...
5
Light Switch MTD-925-0634
...
6
Ammeter MTD-925-0925
...
7
Miniature Lamp 12V Socket Type MTD-925-0963
...
8
Solenoid MTD-925-1426A
...
9
Safety Switch (Reverse) MTD-725-1643
...
10
Safety Switch MTD-925-1657A
...
11
HARNESS ADAPTER MTD-929-0125
...
13
Ratchet MTD-726-3046
