Yard Machines 13AS679G062 (1999) Lawn Tractor

Model: 13AS679G062 (1999)

Back To Assemblies


product name

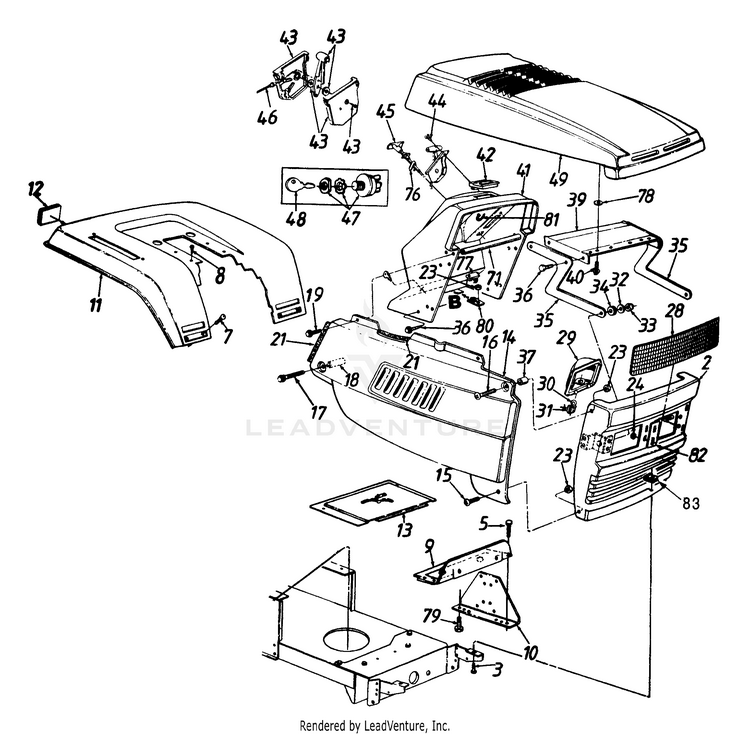

Hood Style 9

...
...
2
UNKNOWN MTD-NA

...
3
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0376

...
5
Hex Wash. Hd. Scr. 5/16" x .5" Lg. MTD-710-0603

...
7
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286

...
8
Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg. MTD-710-0726

...
9
FUEL TANK SUPPORT MTD-17633A

...
10
DASH SUPPORT BRACKET MTD-17300D

...
11

...
12
Reflector (Optional) MTD-930-3000

...
13
Shift Cover MTD-17286B-0637

...
14
SIDE PANEL (RH) MTD-16725

...
xx
PANEL-SIDE (LH) (Not Shown) MTD-17309B

...
xx
SIDE PANEL (RH) MTD-16725

...
xx
PANEL-SIDE (LH) MTD-17309B

...
15
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286

...
16
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A

...
17
Hex Wash. TT-Tap Scr. 1/4-20 x MTD-710-1026

...
18
SPACER-.260 ID x 1.32 LG x 16 MTD-750-0768

...
19
Hex Rolling Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642

...
21
Trim Strip 18" Lg. MTD-731-0511-18

...
23
Hex Sems Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0271

...
24
Speed Nut 5/16" Thd. MTD-726-0201

...
?25
SEMS NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0265

...
?27
GRILLE ASS'Y. MTD-17410

...
28
HEADLIGHT LENS MTD-931-1044

...
29
HEADLIGHT HOUSING MTD-931-0705

...
30
Miniature Lamp 12V Socket Type MTD-925-0963

...
31
SHORT LAMP SOCKET MTD-925-1650

...
32
Bell-Wash. .345" I.D. x .88" MTD-736-0242

...
33
Hex L-Nut 5/16-18 Thd. MTD-712-0429

...
34
RUBBER WASHER MTD-735-0126A

...
35
HOOD HINGE MTD-783-0190

...
36
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" MTD-710-0599

...
37

...
39
HOOD PLATE MTD-16903A

...
40
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
41
DASH PANEL 9 STYLE MTD-931-1048B

...
42

...
43
Throttle Control Box Ass'y. MTD-831-0823A

...
44
Mach. Scr. #10 x .44" Lg. MTD-710-0919

...
45
Choke Control 23" MTD-946-0616A

...
xx
Choke Control 38" Lg. MTD-746-0614A

...
xx
CHOKE CONTROL CABLE 29'' MTD-746-3021

...
xx
CHOKE CONTROL 20" MTD-746-0720

...
46
Throttle Control Wire 18.5" MTD-946-0638

...
xx
Throttle Wire MTD-946-0634

...
xx
Throttle Control Wire 18.5" MTD-946-0638

...
47
Ignition Switch MTD-925-0267B


...
49
HOOD 9-STYLE (RED) MTD-931-1491A



...
xx
HOOD-EVERGREEN MTD-731-1704A

...
xx
HOOD 9-STYLE (GLOSS BLACK) MTD-931-1893A

...
71
TUBE-GRILLE SUPPORT MTD-749-0814

...
?73
External L-Wash. 5/16" I.D. MTD-736-0607

...
76
CLIP-CHOKE RETAINER MTD-17782

...
77
Light Switch MTD-925-0634

...
78
Fl-Wash. .406" I.D. x .812" O.D. MTD-736-3010

...
79
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206

...
80
DASH TAB MTD-783-0013

...
81
Cable Tie MTD-725-0157

...
82
LABEL-CHROME MTD-777-8568A

...
83
U-Nut 5/16-18 Thd. MTD-726-0211
