Yard Machines 13AM775S000 (2017) Lawn Tractor

Model: 13AM775S000 (2017)

Back To Assemblies

Save Part Not Listed?
product name

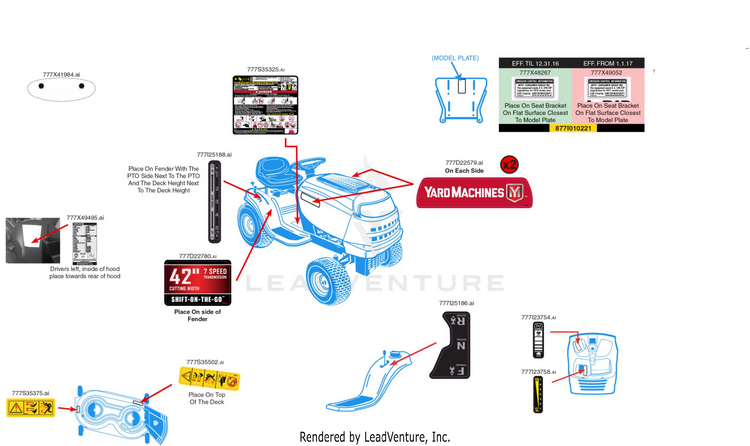

Label Map

...
...
xx
LABEL-YARD MACHINES 5 STY HOODSD LT5 MTD-777D22579
...
xx
LABEL-42" 7 SPD FENDER LT5 MTD-777D22780
...
xx
LABEL-RIDER:SECURE WHEEL MTD-777I22773
...
xx
LABEL-RIDER LT-5 THROTTLE MTD-777I23754
...
xx
LABEL-RIDER LT-5 7 SPD MTD-777I23758
...
xx
LABEL-RIDER CPX F-N-R MTD-777I25186
...
xx
LABEL-RIDER CPX HEIGHT PTO MTD-777I25188
...
xx
LABEL-SAFETY STANDARD MTD-777S35325
...
xx
LABEL-RIDER SAFETY OFF SIDE DECK MTD-777S35375
...
xx
LABEL-CHUTE SAFETY MTD-777S35502
...
xx
LABEL:RIDER 1&5-STYLE GRILL MTD-777X41984
...
xx
LABEL-PARTS YARDMACH M775S LT5 MTD-777X49495
...
xx
LABEL-RDR EMISSIONS 2016 MTD-777X48267
...
xx
LABEL-RDR EMISSIONS 2017 MTD-777X49052
