Yard Machines 13AM772F000 (2009) Lawn Tractor

Model: 13AM772F000 (2009)

Back To Assemblies

Save Part Not Listed?
product name

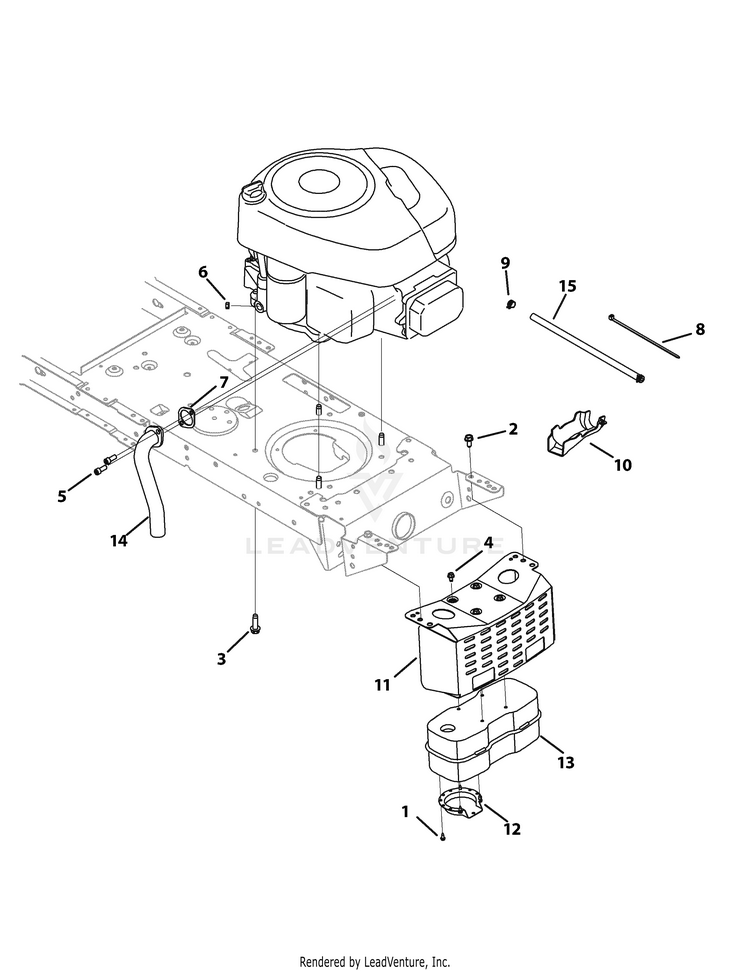

Engine Accessories B&S Model 28 w Low Muffler

...
...
1
Screw, 8-18 x .500 MTD-710-0227
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
SCREW 3/8-16 X 1 MTD-710-04683C
...
4
Screw, 1/4-20 x .500 MTD-710-0599
...
5
Socket Screw, 5/16-18 x .750 MTD-710-1214
...
6
Sems Nut, 1/4-20 MTD-712-0271
...
7
Exhaust Gasket, 10 HP Briggs MTD-BS-692236
...
8
Cable Tie MTD-725-0157
...
9
Hose Clamp, .490 Diameter MTD-726-0205
...
10
Oil Drain Sleeve MTD-731-05628
...
11
Muffler Bracket MTD-783-0615E-0637
...
12
Muffler Deflector MTD-751-0564B
...
13
Single Inlet Muffler MTD-951-0617C
...
14
EXHAUST PIPE MTD-751-0619B
...
15
FUEL HOSE 1/4-36" MTD-751-22813-36
