Yard Machines 13AM475F000 (1998) Lawn Tractor

Model: 13AM475F000 (1998)

Back To Assemblies

Save Part Not Listed?
product name

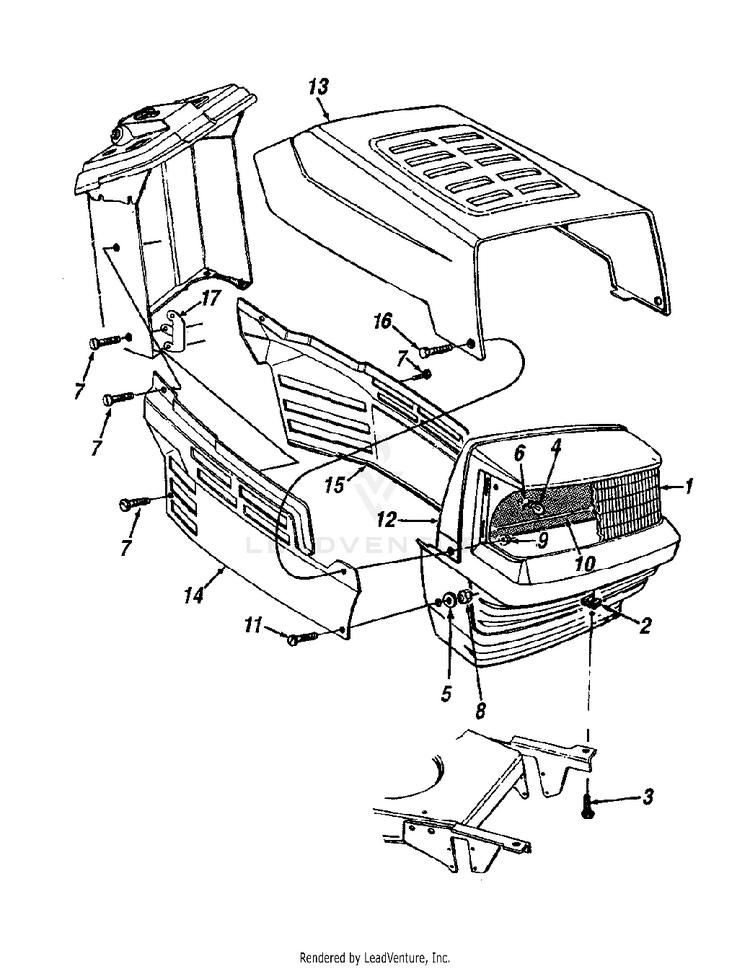

Hood (Style 5)

...
...
1
Lens MTD-931-1099A
...
2
U-Nut 5/16-18 Thd. MTD-712-0211
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
Miniature Lamp 12V Socket Type MTD-925-0963
...
5
SPRING WASHER BELL MTD-736-0270
...
6
SQ HEADLIGHT SOCKET MTD-925-1651
...
7
Hex TT-Tap. Screw 1/4-20 x .5" MTD-710-0599
...
8
HEX NUT MTD-712-3006
...
9
LOCK NUT 1/4 MTD-912-3027
...
10
LABEL-REFLECTIVE MTD-777X40318
...
11
Pan Hd. Scr. 1/4-20 x .75" MTD-710-0924
...
12
GRILLE-10 STYLE MTD-931-1097G
...
13
HOOD-STY O W/LOUVERS MTD-783-0250
...
14
SIDE PANEL (RH) MTD-783-0150A
...
15
SIDE PANEL (LH) MTD-783-0151
...
16
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
17
MOUNTING BRACKET MTD-783-0284
