Yard Machines 13AL450C700 (1997) Lawn Tractor

Model: 13AL450C700 (1997)

Back To Assemblies

Save Part Not Listed?
product name

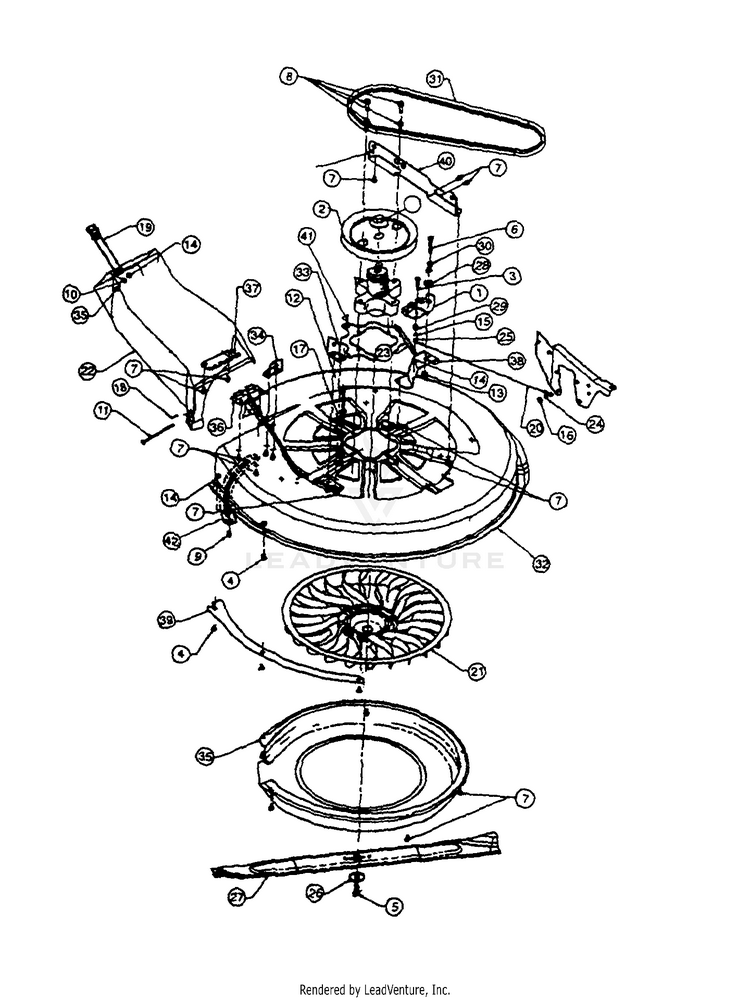

Mowing Deck C: 30-inch

...
...
1
Deck Brake Brkt. Ass'y. MTD-97116
...
2
SPINDLE ASSEMBLY. W/PULLEY MTD-618-0139
...
3
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
4
Carriage Scr. 1/4-20 x .62" MTD-710-0134
...
5
Hex Bolt 7/16-20 x 1.0" MTD-710-0314
...
6
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
7
Hex Washer Hd. TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
8
Hex Washer Hd. TT-Tap Scr. 5/16-18 x 1" MTD-710-0602
...
9
Hex Carriage Scr. MTD-710-0703
...
10
Hex screw 1/4-20 x .75 MTD-710-3015
...
11
CLEVIS PIN MTD-911-1054
...
12
GUARD PIN MTD-711-1065
...
13
SEMS NUT 5/16-18 MTD-712-0265
...
14
Lock Nut 1/4-20 MTD-712-0324
...
15
HEX NUT MTD-712-3006
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Top Lock Hex Jam Nut 5/16-18 MTD-712-3046
...
18
Cotter Pin 3/32" Dia. MTD-714-0507
...
19
Retainer Strap Assembly MTD-923-0383
...
20
BRAKE CABLE 16.47" MTD-727-0470
...
21
DECK FAN MTD-931-1583
...
22
30" REAR DISCHARGE CHUTE MTD-731-1605F
...
23
EXTENSION SPRING MTD-732-0604
...
24
Flat Washer .344" 1.0. x .62" O.D. MTD-736-0204
...
25
Flat Washer .283 x .75 x .030 MTD-736-0342
...
26
Belle. Washer MTD-736-0510
...
27
30" BLADE MTD-942-04058
...
28
Shoulder Spacer MTD-748-0234
...
29
SPACER MTD-750-0555
...
30
SPACER MTD-750-0755
...
31
V-BELT B SEC 50IN MTD-954-0445
...
32
DECK:FAN:30" RD MTD-783-0247B
...
33
BRACKET-HANGER MTD-783-0248
...
34
BRACKET-HANGER MTD-783-0249
...
35
FAN SHROUD MTD-783-0289-0637
...
36
BRACKET-DE MTD-783-0291
...
37
PIVOT TUBE BRACKET MTD-783-0292
...
38
SUPPORT BRACKET MTD-783-0295
...
39
Deck Skirt MTD-783-0401
...
40
DECK HANGER BRACKET MTD-783-0304A
...
41
Reinf. Plate MTD-783-0571
...
42
Chute Support MTD-783-0572
