Yard Machines 13AI699H062 (1999) Lawn Tractor

Model: 13AI699H062 (1999)

Back To Assemblies

Save Part Not Listed?
product name

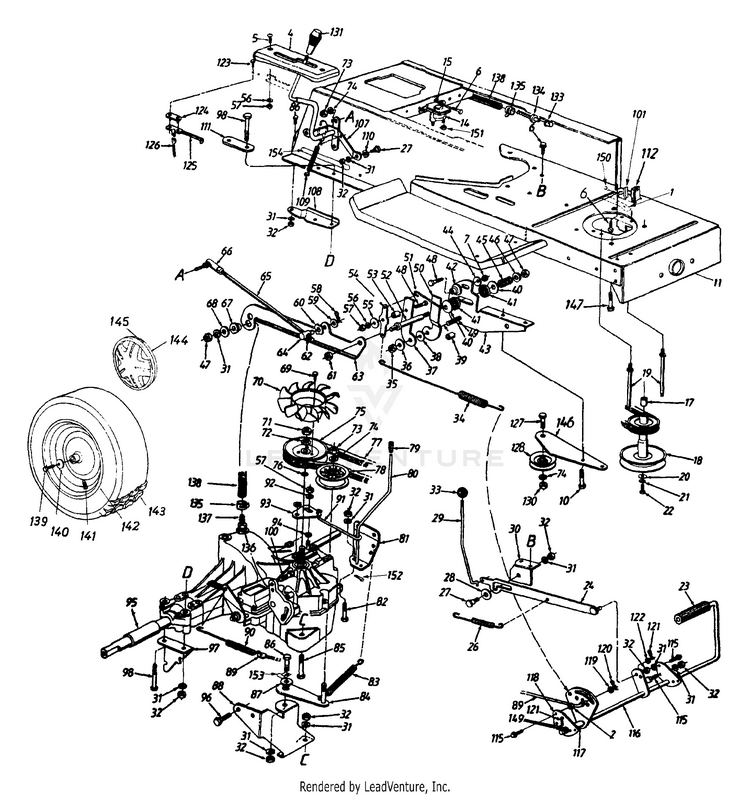

Drive, Wheels, Rear, Pedal Assembly

...
...
1
Spring Switch MTD-932-0750A
...
2
SEMS NUT 5/16-18 MTD-712-0265
...
4
HYDRO INDEX BRACKET MTD-931-1734
...
5
Pan Hd. Mach. Scr. 1/4-20 x .75" MTD-710-0924
...
6
Hex Wash. Hd. TT-Tap Scr. MTD-710-0599
...
7
Hex Nut 1/4-28 Thd. MTD-712-0138
...
8
L-Wash. 1/4" I.D. MTD-936-0329
...
10
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
11
LOWER FRAME MTD-783-0310F-0637
...
14
Solenoid MTD-925-1426A
...
15
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
17
Spacer MTD-750-0956
...
18
Engine Pulley MTD-756-0983B
...
19
Belt Guard Stud 4.75" Lg. MTD-711-1044A
...
20
Fl-Wash. 7/16" I.D. x 1.25" O.D. MTD-736-0322
...
21
L-Wash. 7/16" I.D. MTD-936-0171
...
22
Hex Bolt 7/16-20 x 1.25" Lg. MTD-710-3029
...
23
FOOT PAD MTD-735-0239A
...
24
BRAKE LOCKOUT BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0049-0637
...
26
BRAKE RETURN SPRING MTD-732-0728
...
27
Shld. Bolt .437" x .286" MTD-738-0296
...
28
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
29
BRAKE ROD LOCKOUT MTD-747-0608C
...
30
BRACKET MTD-17755A
...
31
L-Wash. 5/16" I.D. MTD-936-0119
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
THROTTLE KNOB MTD-720-0166
...
34
Neutral Return Spring MTD-932-0727
...
35
Hex Nut 5/16-24 Thd. MTD-912-0273
...
36
Fl-Wash. .344" I.D. x 1" O.D. MTD-736-3078
...
37
FLAT SCISSOR MTD-783-0092
...
38
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0362
...
39
SPACER MTD-750-0808
...
40
Bell-Wash. .4" I.D. x 1.13" O.D. MTD-936-0219
...
41
Friction Washer MTD-961-0196
...
42
CENTERING GAUGE SPACER MTD-750-0918
...
43
NEUTRAL RETURN BRACKET MTD-783-0095
...
44
SPRING WASHER BELL MTD-736-0270
...
45
COMPRESSION SPRING MTD-732-0718
...
46
Fl-Wash. .26" I.D. x .72" O.D. MTD-736-3092
...
47
Hex Nut 5/16-24 Thd. MTD-912-3057
...
48
Hex Bolt 1/4-28 x 1" Lg. (Gr. 5) MTD-710-0299
...
49
Rib Neck Bolt 5/16-24 x .84" Lg. MTD-710-1012
...
50
OFFSET SCISSOR MTD-783-0093
...
51
NEUTRAL RETURN ROD MTD-747-0887
...
52
FRICTION DISC STUD MTD-938-0879
...
53
SHOULDER SPACER MTD-748-0368
...
54
NEUTRAL RETURN LEVER MTD-783-0096
...
55
Fl-Wash. .265" I.D. x 1" O.D. MTD-736-3092
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
HEX NUT 1/4-20 MTD-912-0287
...
58
Hairpin Clip MTD-714-0104
...
59
Fl-Wash. .375" I.D. x .87" O.D. MTD-736-0262
...
60
Spring Wash. .39" I.D. MTD-736-0413
...
61
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
62
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
63
BRACKET-NEUTRAL MTD-783-0090A
...
64
Ferrule 3/8-24 Thd. MTD-911-0832
...
65
CONTROL ROD MTD-747-0365A
...
66
JOINT ASSEMBLY-BALL (LH) THREAD MTD-923-0351
...
67
Shld. Spacer.5" Dia. x .27" Lg. MTD-748-0234
...
68
Fl-Wash. .344" I.D. MTD-736-0159
...
69
SCREW #12-24 x .625 MTD-710-1189
...
70
Fan MTD-931-1449A
...
71
HEX NUT GRADE 2 MTD-912-0333
...
72
L-Wash. 1/2" I.D. MTD-736-0921
...
73
Hex Nut 3/8-24 Thd. MTD-712-0241
...
74
L-Wash. 3/8" I.D. MTD-736-0169
...
75
TRANSMISSION PULLEY MTD-756-0975
...
76
Wire Ring MTD-732-0729
...
77
V-Belt 1/2 x 77 10/30/00 & After MTD-954-0338
...
77
V-Belt Type A x 76.1 10/30/00 & Before MTD-954-0441
...
78
Fl-Idler Pulley 2.75" O.D. MTD-756-04224
...
79
Rod End Grip MTD-720-0238
...
80
BYPASS CONTROL LEVER MTD-747-0894
...
81
BRACKET-TRANS SUP (POWDER BLACK) MTD-783-0085-0637
...
82
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0528
...
83
EXTENSION SPRING MTD-932-0384
...
84
IDLER BRACKET ASSEMBLY MTD-983-0051
...
85
Hex Bolt 5/16-18 x 2" Lg. MTD-710-3103
...
86
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
87
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234
...
88
BRACKET-TRANS SUP (RH) MTD-783-0086A-0637
...
89
BRAKE ROD MTD-747-0886
...
90
Ext. Spring MTD-732-0716D
...
91
ACTUATOR BYPASS ROD MTD-747-0893
...
92
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
93
BRACKET-BYPASS ADJ MTD-983-0098
...
94
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
95
Sleeve .758" I.D. x 1" O.D. MTD-731-1086A
...
96
Hex. TT-Tap Scr. 5/16-18 x .62" MTD-710-0604A
...
97
BRACKET-TRANSMISSION RETAINER MTD-17994-0637
...
98
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
98
Hex Bolt 5/16-18 x 4.5" Lg. MTD-710-3195
...
99
EXTENSION SPRING MTD-HG-50384
...
100
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
101
Hex Wash. Hd. AB-Tap Scr. MTD-910-0224
...
107
SPEED CONTROL LEVER MTD-647-0008A
...
108
BRACKET-AXLE SUPPORT MTD-17668A-0637
...
108
BRACKET-AXLE SUPPORT MTD-17669A-0637
...
109
TENSION SPRING MTD-732-0433
...
110
Spr-Wash. .445" I.D. x .75" O.D. MTD-936-0141
...
111
Transaxle Mtg. Brkt. MTD-17840-0637
...
112
Safety Switch (Clutch) MTD-925-1657A
...
115
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
116
BRAKE PEDAL ASSEMBLY MTD-683-0123-0637
...
117
Spacer .63" I.D. MTD-750-0802
...
118
BRACKET-PEDAL MTD-17860-0637
...
119
Fl-Wash. .344" I.D. x .75" O.D. MTD-936-3008
...
120
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
121
Cotter Pin 1/8" Dia. MTD-714-0470
...
122
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
123
Hex AB-Tap Scr. #8 x .5" Lg. MTD-710-0227
...
124
Insulator Nut Plate MTD-926-0320
...
125
REVERSE SAFETY SWITCH MTD-725-1713
...
126
Extension Wire MTD-725-0139
...
127
Hex Bolt 3/8-16 x 1.5" Lg. MTD-710-0520
...
128
Idler Pulley MTD-756-04209
...
129
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
130
Hex Nut 3/8-16 Thd. MTD-712-0798
...
131
Shift Knob MTD-720-0218
...
133
Vent Cap MTD-731-1481
...
134
Plastic Vent MTD-731-1480
...
135
Clamp MTD-926-0324
...
136
O-RING MTD-721-0330
...
137
FITTING-HOSE MTD-731-1485
...
138
Fuel Line 18" Lg. MTD-751-0588-18
...
139
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
140
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
141
Air Valve MTD-934-0255
...
142
RIM ASSEMBLY (8.0 x 7.0 x .750) (Round and Square Shoulder) MTD-634-04369
...
143
Wheel Ass'y. Comp. (Round Shoulder) MTD-734-1675
...
143
Wheel Ass'y. Comp. (Square Shoulder) MTD-634-0104
...
143
Tire Only (Round Shoulder) MTD-734-1596
...
143
TIRE-20X8 MULTI TRAC (Square Shoulder) MTD-734-1730
...
144
Hub Cap (Gray) (Optional) MTD-734-1615A
...
144
CAP-HUB W/SPRIG BEIGE (Optional) MTD-934-1614A
...
144
HUB CAP-YELLOW (Optional) MTD-934-1788A
...
145
SPRING CLIP MTD-927-0425A
...
146
IDLER BRACKET (POWDER BLACK) MTD-783-0099-0637
...
147
Hex TT-Tap Scr. 3/8-16 x 1.25" MTD-710-1315
...
148
Spacer .32" I.D. x.75" O.D. (Used w/46" Deck) MTD-750-0258
...
149
L-Wash. 3/8" I.D. MTD-736-0169
...
150
Hex Washer Screw #10 -16 x .5 MTD-910-0224
...
151
Nut 1/4-20 MTD-712-0271
...
152
COTTER PIN-1/16 DIA x .75 MTD-714-0127
...
153
Clamp MTD-726-0272
...
154
SPEED CONTROL BRACKET MTD-783-0122
