Yard Machines 13AI608H352 (2002) Lawn Tractor

Model: 13AI608H352 (2002)

Back To Assemblies

Save Part Not Listed?
product name

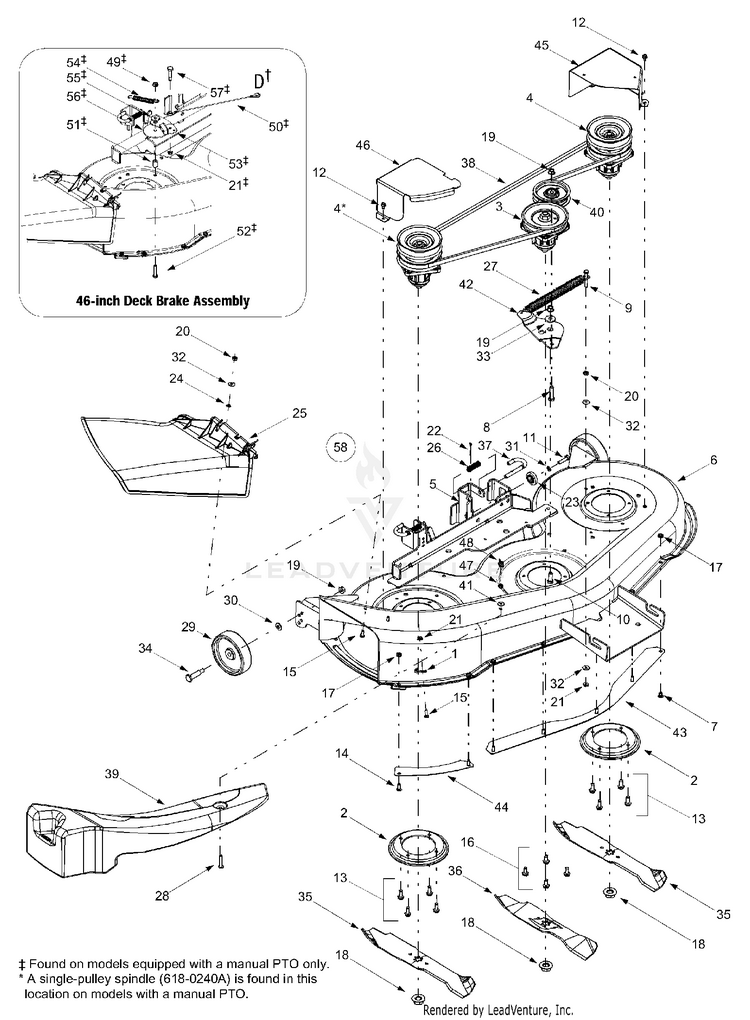

46 Cutting Deck

...
...
1
Retainer Hook Bracket MTD-96606
...
2
PLATE-SPINDLE MTD-17982-0637
...
3
Spindle Assembly, 5.00 Dia. MTD-918-0240C
...
3
Pulley Only MTD-756-1187
...
4
Double Pulley Spindle Assembly MTD-918-0241B
...
4
Pulley Only MTD-756-0603
...
5
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
6
46" DECK ASSEMBLY MTD-683-0265C
...
7
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
8
Hex Cap Screw, 3/8-16 x 1.5 MTD-710-0344
...
9
Hex Cap Screw, 1/4-20 x 2.0 MTD-710-0501
...
10
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
11
Hex Cap Screw, 5/8-18 x 1.25 MTD-710-0528
...
12
Self-tapping Screw,1/4-20 x .5 MTD-710-0599
...
13
Self-tapping Screw,15/16-18 x .875 MTD-710-0650
...
14
Hex Screw, 1/4-20 x .75 MTD-710-0703
...
15
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
16
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
17
Hex Sems Nut, 1/4-20 MTD-712-0271
...
18
HEX NUT MTD-712-0417A
...
19
Flange Lock Nut 3/8-16 MTD-912-0431
...
20
HEX NUT MTD-712-3006
...
21
LOCK NUT 1/4 MTD-912-3027
...
22
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
23
Gear, Deck Adjustment MTD-917-04074
...
24
Push Nut. .25 x .5 MTD-726-0233
...
25
CHUTE ASSEMBLY MTD-631-05229
...
26
Compression Spring MTD-932-0306A
...
27
Extension Spring 6.17" Lg. MTD-932-0594A
...
28
Screw, 1/4-20 x 1.5 MTD-710-0578
...
29
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
30
Bell Washer, .401 x .87 x .063 MTD-736-0105
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
SPRING WASHER BELL MTD-736-0270
...
33
Shld. Spacer .625" I.D. MTD-938-0347
...
34
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
35
46" BLADE (STAR) MTD-742-0611A-0637
...
36
14.88" BLADE (MULCH) (STAR) MTD-742-0612A-0637
...
37
Deck Release Pin MTD-747-1116
...
38
V-Belt MTD-954-0349
...
39
Mulch Plug MTD-731-1636
...
40
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
41
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
42
IDLER BRACKET MTD-783-0139B-0637
...
43
Center Deck Skirt MTD-783-0141
...
44
Skirt-Right Hand MTD-783-0142-0637
...
45
LH Belt Cover MTD-783-1348D
...
46
BELT COVER (RH) MTD-783-0805C
...
47
HEX NUT MTD-712-3006
...
48
WING NUT 1/4-20 MTD-712-3087
...
49
HEX FLANGE NUT MTD-712-3004A
...
50
Bracket Cable, 12" MTD-746-1107
...
51
Spacer, .385 x .625 x .70 MTD-750-0807
...
52
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
53
Deck Brake Brkt. Ass'y. MTD-97116
...
54
Extension Spring 3.97" Lg. MTD-932-0429A
...
55
Shoulder Spacer MTD-748-0234
...
56
FLAT WASHER .323 ID x 3 x .125 MTD-736-0416
...
57
SHOULDER SCREW MTD-738-0572
...
58
DECK ASSEMBLY KIT (w/o Mulch Kit) MTD-953-0872
...
58
DECK ASSEMBLY KIT (w/o Mulch Kit) MTD-753-0874
