Yard Machines 13AG619H022 (2003) Lawn Tractor

Model: 13AG619H022 (2003)

Back To Assemblies

Save Part Not Listed?
product name

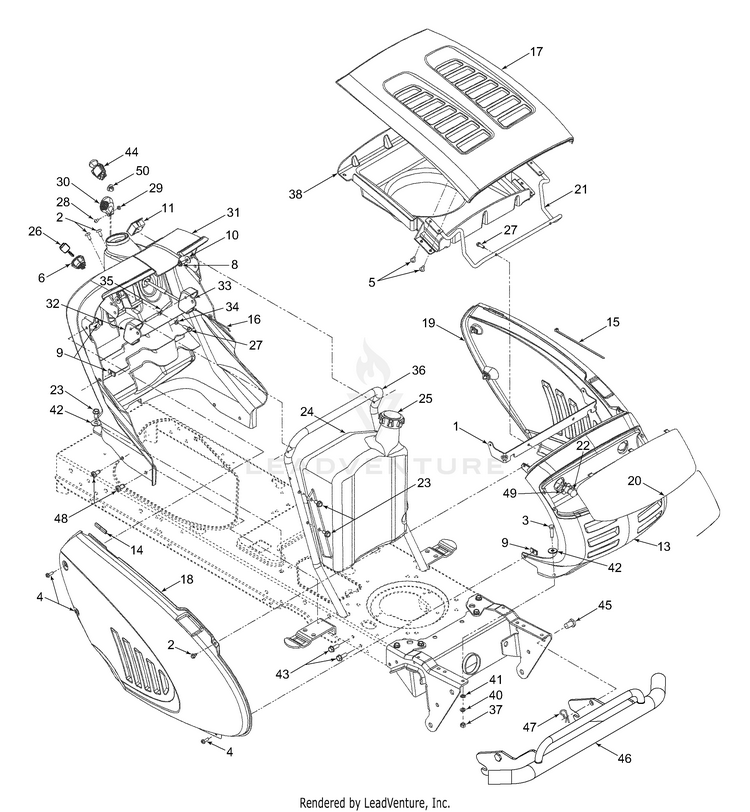

Hood Style 9

...
...
1
GRILLE: SUPPORT BRACKET MTD-783-1346A-0637
...
2
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
3
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
4
Phillips Pan Screw, 1/4-20 x.75 MTD-710-0924
...
5
Truss Phillips Screw, 1/4-20 x.625 MTD-710-1017
...
6
Ignition Switch MTD-925-1741
...
8
Self-tapping Screw, 1/4-20 x.75 MTD-710-0642
...
9
U-type Speed Nut, 1/4-20 MTD-712-0292
...
10
SPRING WASHER BELL MTD-736-0270
...
11
HOUR METER/SERVICE MINDER w/ Hour Meter MTD-925-06170B
...
xx
INDICATOR MONITOR w/ Ammeter MTD-725-1758
...
13
GRILLE MTD-731P2119A
...
14
Trim Strip, 4 MTD-731-0511
...
15
Cable Tie, 3/16 x.05 x 7.4 MTD-725-0157
...
16
Choke Cable 39" Lg. (Models with any B&S Twin) MTD-946-1085A
...
xx
Choke Cable 23" Lg. (Models with Kohler) MTD-946-1088
...
17
HOOD:3 STYLE MTD-783-0783A
...
18
Side Panel, RH MTD-783-0784A
...
19
SIDE PANEL (LH) 9 STYLE MTD-783-0785
...
20
LENS-9 STYLE MTD-731-2118A
...
21
HINGE ROD MTD-747-2138
...
22
Miniature Lamp 12V Socket Type MTD-925-0963
...
23
Self-tapping Screw, 5/16-18 x.625 MTD-710-0726
...
24
Fuel Tank 3 Gal. (Shown) MTD-751-0658E
...
xx
Fuel Tank 2 Gal. Not Shown MTD-751-0659D
...
25
TANK CAP MTD-751-0603B
...
26
Key MTD-925-1745A
...
xx
Key MTD-925-1745A
...
27
Self-tapping Screw, 1/4-15 x.75 MTD-710-0895
...
28
Truss Phillips Screw, #8-32 x.375 MTD-710-3217
...
29
Hex Nut, #8-32 MTD-712-0142
...
30
Throttle Control Knob MTD-731-1857
...
31
DASH PANEL W/NET (Models w/ Electric PTO) MTD-631-04038
...
xx
DASH PANEL (Models w/ Manual PTO) MTD-731-2122C
...
32
CRUISE LEVER MTD-931-04215
...
33
BRAKE LEVER MTD-931-04217
...
34
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
35
Brake/Cruise Pivot Rod MTD-747-1196
...
36
DASH SUPPORT TUBE MTD-749-1087C
...
37
HEX NUT 5/16-18 MTD-712-3010
...
38
HOOD BELLOW (Models with Kohler) MTD-731-2269A
...
xx
HOOD BELLOW (Models with B&S OHV V-Twin) MTD-731-2270A
...
xx
HOOD PLENUM (Models with B&S Opposed Twin) MTD-731-2271
...
xx
Hood Plenum (Models with B&S OHV Single) (Models with B&S OHV Single) MTD-NA
...
?39
Ratchet Clip MTD-726-3046
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Speed Nut,.3125 MTD-726-0201
...
42
Flat Washer,.349 x 1.0 x.063 MTD-736-3078
...
43
Screw, 5/16-18 x.88 (Grade 5) MTD-710-0650
...
44
PTO SWITCH (BLACK KNOB) TEXT SYM If Equipped MTD-925-04174A
...
45
Clevis Pin If Equipped MTD-911-0332
...
46
BUMPER KIT If Equipped MTD-OEM-190-679
...
47
Internal Cotter Pin If Equipped MTD-714-0145
...
48
Screw, 5/16-18 x.75 MTD-710-1611B
...
49
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
50
Choke Plug MTD-731-1999
...
xx
HEADLIGHT HARNESS MTD-929-0469B
...
xx
HARNESS ASSEMBLY (Models with Hour Meter & Electric PTO) MTD-629-1067
...
xx
HARNESS ASSEMBLY (Kohler) (Models with Hour Meter & Electric PTO) MTD-629-1068
...
xx
Tractor Wire Harness (Models with Hour Meter & Manual PTO) MTD-929-1071
...
xx
HARNESS ASSEMBLY (Models with Ammeter & Manual PTO) MTD-629-04051
