Yard Machines 13AF660G352 (1999) Lawn Tractor

Model: 13AF660G352 (1999)

Back To Assemblies


product name

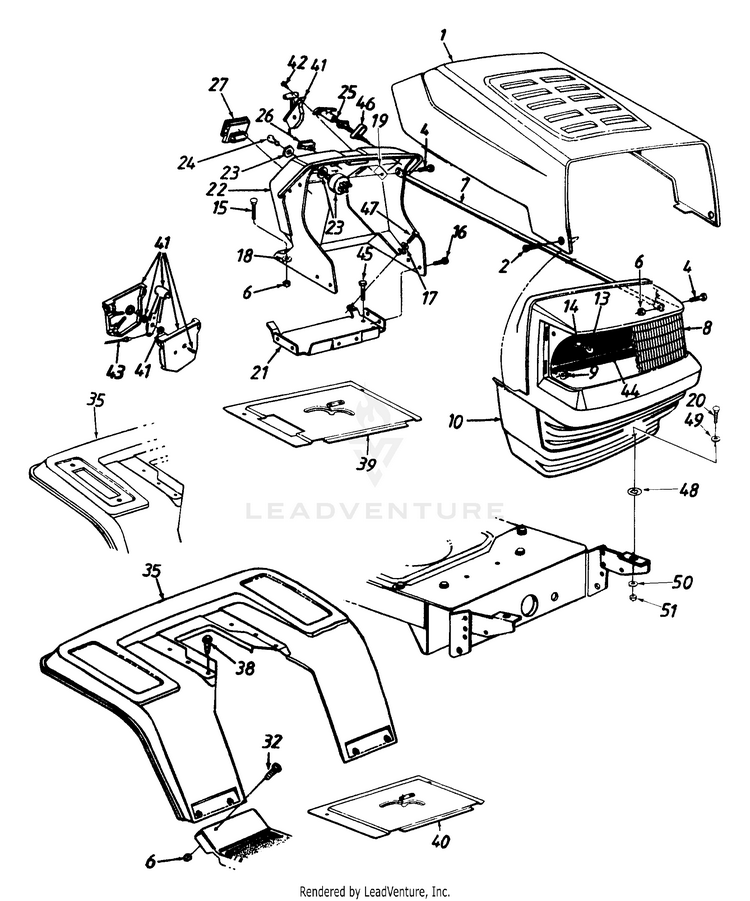

Hood Style 0

...
...
1
HOOD-STY O W/LOUVERS MTD-783-0250

...
2
Shoulder Bolt, .375 x .125 MTD-938-0952A

...
4
SCREW 1/4-20 x .620 GR5 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list MTD-710-0751

...
6
Hex Sems Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list MTD-712-0271

...
7
Grille Support Rod MTD-749-0812



...
9
LOCK NUT 1/4 MTD-912-3027

...
10
GRILLE-10 STYLE MTD-931-1097G

...
13
Miniature Lamp 12V Socket Type MTD-925-0963

...
14
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A

...
15
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703

...
16
Hex Washer Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
17
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173

...
18
Bolt Retainer 1/4" I.D. MTD-726-0233

...
19
SPEED NUT 1/4-20 MTD-712-0185

...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008

...
21
GAS TANK SUPPORT BRKT. MTD-17632A

...
22

...
xx
DASH PANEL MTD-731-1337A

...
23
Ignition Switch MTD-925-0267B


...
25
Choke Control 23" MTD-946-0616A

...
xx
Choke Control 38" Lg. MTD-746-0614A

...
xx
CHOKE CONTROL 20" MTD-746-0720

...
xx
CHOKE CONTROL CABLE 29'' MTD-746-3021

...
26
Light Switch (Optional) MTD-925-0634

...
27
Ammeter (Optional) MTD-925-0925

...
32
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286

...
?34
FENDER-RR W/FRAME MTD-17870C

...
35
FENDER-RR MTD-17871B

...
38
Hex Wash. Hd. AB-Tap Scr. 5/16 x MTD-710-0726

...
39
SHIFT COVER MTD-17954B-0637

...
40
Shift Cover MTD-17286B-0637

...
41
Throttle Box Ass'y. MTD-831-0823A

...
42
Truss Mach. AB-Tap Scr. #10 x .5" MTD-710-0779A

...
43
Throttle Control Wire 18.5" MTD-946-0638

...
xx
Throttle Wire MTD-946-0634

...
xx
Throttle Control Wire 18.5" MTD-946-0638

...
44
LABEL-REFLECTIVE MTD-777X40318

...
45
Hex Washer Tap Scr .5/16-18 x .5" Lg. MTD-710-0603

...
46
CLIP-CHOKE RETAINER MTD-17782

...
47
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642

...
48
Speed Nut MTD-726-0201

...
49
Fl-Wash. .34" I.D. x 1"Lg. MTD-736-3078

...
50
Lock Wash. 5/16" I.D. MTD-936-0119

...
51
Hex Nut 5/16-18 Thd. MTD-710-3010

...
xx
HEADLIGHT HARNESS (Not Shown) MTD-929-0469B

...
xx
MUFFLER ASSEMBLY Engine 10.5, 11.5, 12, 12.5 & 13 H.P. B&S MTD-951-0302

...
xx
CONDUIT L-NUT For muffler MTD-712-0250
Schematic Image Zoomed
