product name

Yard Machines 13AC26JD000 (2017) Lawn Tractor

Model: 13AC26JD000 (2017)

Back To Assemblies

Save Part Not Listed?
product name

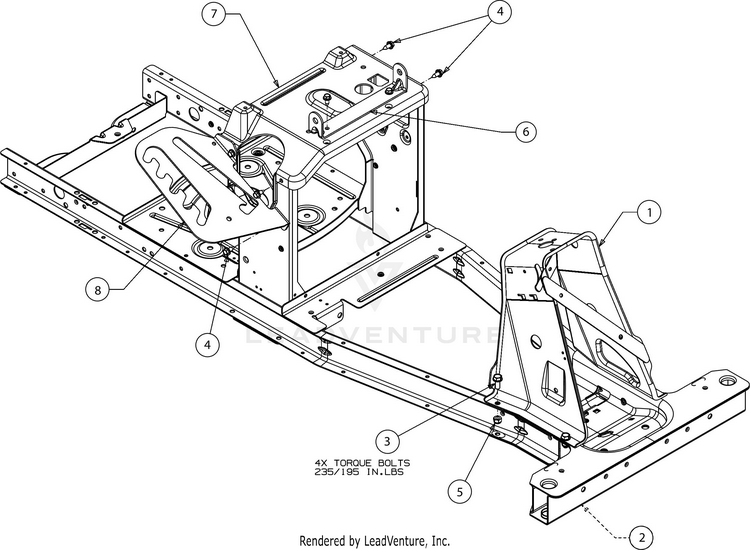

Frame

...
...
1
STEER PEDESTAL ASSEMBLY MTD-683-05167-0637
...
2
FRAME ASSEMBLY MTD-683-05189A
...
3
SCREW 5/16-18 x .750 GR8 MTD-710-06194
...
4
SCREW 1/4-20X.625 MTD-710-1652
...
5
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
6
SEAT PIVOT BRACKET (POWDER BLACK) MTD-783-13996-0637
...
7
SEAT PAN (POWDER BLACK) MTD-783-13995-0637
...
8
DECK LIFT BRACKET MTD-783-08260-0637
Schematic Image Zoomed
