Yard Machines 13A4662F129 (2002) Lawn Tractor

Model: 13A4662F129 (2002)

Back To Assemblies

Save Part Not Listed?
product name

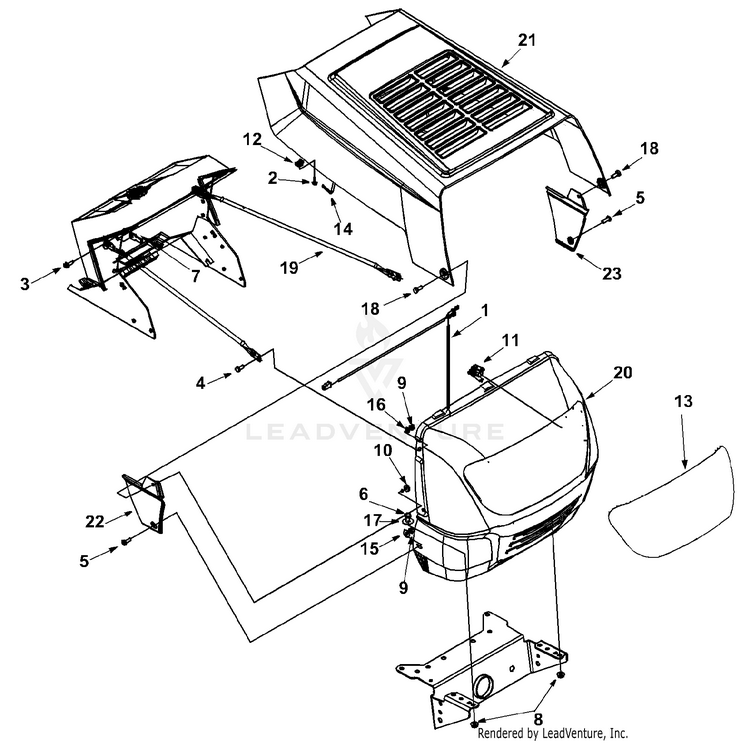

Hood Style 2

...
...
1
HEADLIGHT HARNESS MTD-929-0469B
...
2
Truss. Mach. Scr. #10-24 x .75" MTD-710-0589
...
3
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
4
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
5
Pan Hd. Mach. Scr. 1/4-20 x .75" MTD-710-0924
...
6
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
7
SPEED NUT 1/4-20 MTD-712-0185
...
8
HEX FLANGE NUT MTD-712-3004A
...
9
HEX NUT MTD-712-3006
...
10
LOCK NUT 1/4 MTD-912-3027
...
11
SQ HEADLIGHT SOCKET MTD-925-1651
...
xx
Miniature Lamp 12V Socket Type (Not Shown) MTD-925-0963
...
12
U-TYPE SPEED NUT MTD-926-0130
...
13
KIT-SERVICE FOR 731-1503A MTD-753-06310
...
14
HOOD SPRING MTD-732-0699
...
15
SPRING WASHER BELL MTD-736-0270
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Fl-Wash. .349" I.D. x 1.0" O.D. MTD-736-3078
...
18
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
19
SUPPORT-GR MTD-749-0722B
...
20
GRILL:2 STYLE MTD-783-04979
...
21
HOOD-STY O W/LOUVERS MTD-783-0250
...
22
SIDE PANEL (RH) STY MTD-783-0366
...
23
SIDE PANEL (LH) STY 2 MTD-783-0367
