Yard Machines 13A4065-700 (2004) Lawn Tractor

Model: 13A4065-700 (2004)

Back To Assemblies

Save Part Not Listed?
product name

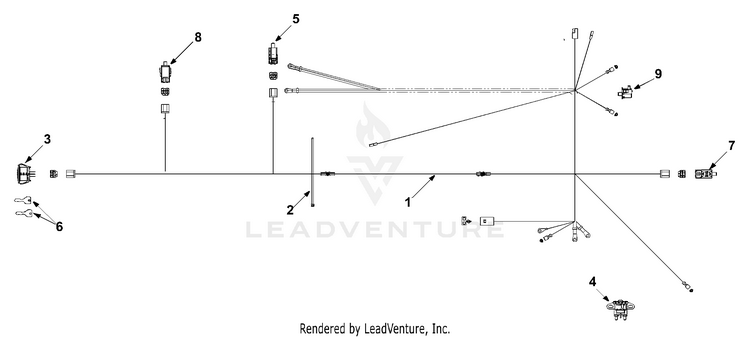

Electrical

...
...
1
HARNESS ASSEMBLY MTD-629-04004B
...
2
Cable Tie MTD-725-0157
...
3
Key Switch MTD-925-04019
...
4
Solenoid MTD-925-1426A
...
5
Safety Switch MTD-925-1657A
...
6
Key MTD-925-1745A
...
7
SEAT SWITCH MTD-925-1747
...
8
Plunger Safety Switch MTD-925-3164A
...
9
SNAP MOUNT SWITCH MTD-925-3166
