Yard Machines 13A4065-700 (2004) Lawn Tractor

Model: 13A4065-700 (2004)

Back To Assemblies

Save Part Not Listed?
product name

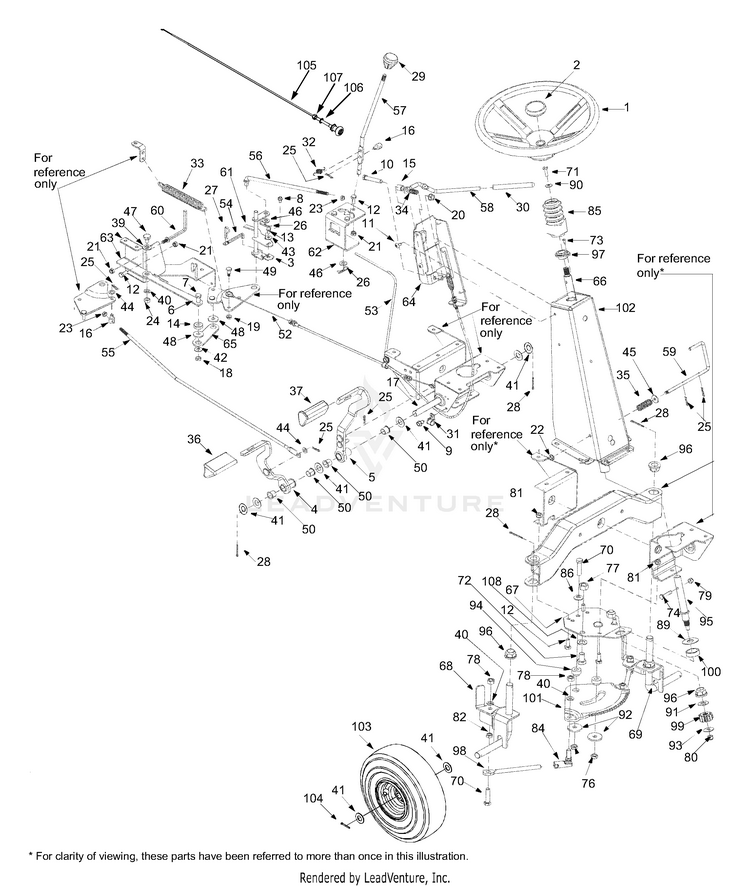

Controls, Steering, Wheels Front

...
...
1
Steering Wheel MTD-631-04028
...
2
Steering Wheel Cap MTD-731-04040
...
3
SHAFT ASSEMBLY-PIVOT MTD-647-0055
...
4
PEDAL ASSEMBLY-VARI MTD-683-0432
...
5
BRAKE PEDAL ASSEMBLY (POWDER BLACK) MTD-683-0433-0637
...
6
BRAKE ASSEMBLY-IDLER MTD-683-0592
...
7
Hex Bolt 3/8-24 x 1.25" MTD-710-0191
...
8
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
9
TT Screw 5/16-18 x 0.625" MTD-710-0604A
...
10
Hex Bolt 3/8-16 x 2.5" MTD-710-0859
...
11
AB Screw 1/4-14 x 0.625" MTD-710-1017
...
12
Hex Bolt MTD-710-1681
...
13
Hex Bolt 1/4-20 x 0.50" MTD-710-3013
...
14
Spacer MTD-711-0242
...
15
Spacer MTD-711-0396
...
16
Ferrule MTD-711-1155
...
17
SHAFT .62 MTD-711-1531
...
18
HEX LOCK NUT 3/8-2 MTD-912-0296
...
19
LOCK NUT 1/4 x 28 MTD-712-0380
...
20
Flange Lock Nut 3/8-16 MTD-912-0431
...
21
Nylon Lock Nut MTD-712-0692
...
22
Flange Lock Nut 5/16-18 MTD-712-0714
...
23
Jam Nut 5/16-18 MTD-712-3007
...
24
HEX NUT 3/8-16 GR5 MTD-712-3017
...
25
Cotter Pin MTD-714-0104
...
26
Click Pin MTD-714-0145
...
27
Hairpin Clip MTD-714-0149B
...
28
Cotter Pin MTD-714-0470
...
29
Knob MTD-920-0232
...
30
Clutch Grip MTD-720-0269
...
31
Clamp MTD-726-0272
...
32
EXTENSION SPRING MTD-732-0445
...
33
Extension Spring 6.17" Lg. MTD-932-0594A
...
34
COMPRESSION SPRING MTD-732-1167
...
35
COMPRESSION SPRING MTD-732-3091
...
36
PAD MTD-735-0283
...
37
Brake Pedal Pad MTD-735-3049A
...
39
Flat Washer.53 x 1.0 x .032 MTD-736-3013
...
40
Lock Washer 3/8 MTD-736-0169
...
41
Flat Washer MTD-736-0187
...
42
FLAT WASHER .38X.88 MTD-736-0267
...
43
SPRING WASHER BELL MTD-736-0270
...
44
Thrust Washer MTD-736-0314
...
45
FLAT WASHER MTD-736-0701
...
46
FLAT WASHER MTD-736-0734
...
47
SHOULDER SCREW MTD-738-0183
...
48
Shld. Spacer .625" I.D. MTD-938-0347
...
49
Shoulder Screw 1/4-28 x .375 MTD-738-0826
...
50
NYLINER BEARING MTD-741-0495
...
52
Deck Cable MTD-946-1127
...
53
BRAKE CABLE MTD-746-1129
...
54
SHIFT ROD MTD-747-1228A
...
55
CONTROL ROD VA MTD-747-1240
...
56
CONTROL ROD SHI MTD-747-1249
...
57
SHIFT ROD MTD-747-1254
...
58
PTO LEVER MTD-747-1255
...
59
BRAKE ROD LOCKOUT MTD-747-04024
...
60
ROD-KEEPER MTD-747-1262
...
61
SHIFT BRACKET MTD-783-1142
...
62
BRACKET-SHIFT IND MTD-783-1253
...
63
BRACKET MTD-783-1287
...
64
CONTROL BRACKET MTD-783-1293
...
65
BRACKET MTD-783-1307
...
66
STEERING TUBE ASSEMBLY MTD-650-0007
...
67
STEERING BRACKET ASSEMBLY MTD-683-0033A
...
68
FRONT AXLE ASSEMBLY (RH) MTD-683-0178A
...
69
FRONT AXLE ASSEMBLY (LH) MTD-683-0179A
...
70
Hex Bolt 3/8-24 x 1.5" MTD-710-0459A
...
71
Hex Bolt 5/16-18 x 1.0" MTD-710-0643
...
72
SCREW 1/2-13 x .75 MTD-710-0689
...
73
AB Screw #10-16 x 0.625" MTD-710-0837
...
74
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
76
Jam Lock Nut 3/8-24 MTD-712-0116
...
77
HEX NUT MTD-712-0206
...
78
Hex Nut 3/8-24 MTD-712-0241
...
79
Hex Lock Nut 1/4-20 MTD-712-0324
...
80
Hex Lock Nut 5/16-24 MTD-712-0411
...
81
Hex Lock Nut MTD-712-0692
...
82
Jam Nut MTD-712-0711
...
84
Ball Joint MTD-923-0156
...
85
BELLOWS-STRG POST MTD-731-04387
...
86
Bell Washer MTD-736-0105
...
89
WASHER .628 x 1.56 x .03 MTD-736-0196
...
90
Bell Washer .340 x .872 x .060 MTD-736-0242
...
91
FLAT WASHER .510 x .995 MTD-736-0272
...
92
Flat Washer 3/8 x 1.37 MTD-736-0320
...
93
Flat Washer .344 x 1.0 x .063 MTD-736-3078
...
94
SPACER MTD-738-0541
...
95
STEERING END MTD-738-3089A
...
96
FLANGE BEARING MTD-941-0225
...
97
FLANGE BEARING MTD-741-0356A
...
98
TIE ROD MTD-747-0955
...
99
PINION GEAR MTD-948-0290
...
100
SPACER MTD-950-0532
...
101
STEERING GEAR SEGMENT MTD-783-1302
...
102
COLUMN BRACKET ASSEMBLY MTD-683-0591
...
103
WHEEL ASSEMBLY (11 x 4-4) MTD-634-0147
...
xx
WHEEL ASSEMBLY (11 x 4-4) Not shown MTD-634-0147
...
xx
TUBELESS VALVE Not shown MTD-934-0255
...
xx
Flange Bearing .632 ID Not shown MTD-741-0487C
...
xx
FLANGE BUSHING Not shown MTD-941-0706
...
104
Cotter Pin MTD-714-0115
...
105
CHOKE CONTROL 29" MTD-746-1089
...
106
Lock Washer MTD-736-0148
...
107
HEX NUT 3/8-16 GR5 MTD-712-3017
...
108
Flat Washer, .53 x .93 x .050 MTD-736-0160
