Yard Machines 13A4065-700 (2004) Lawn Tractor

Model: 13A4065-700 (2004)

Back To Assemblies

Save Part Not Listed?
product name

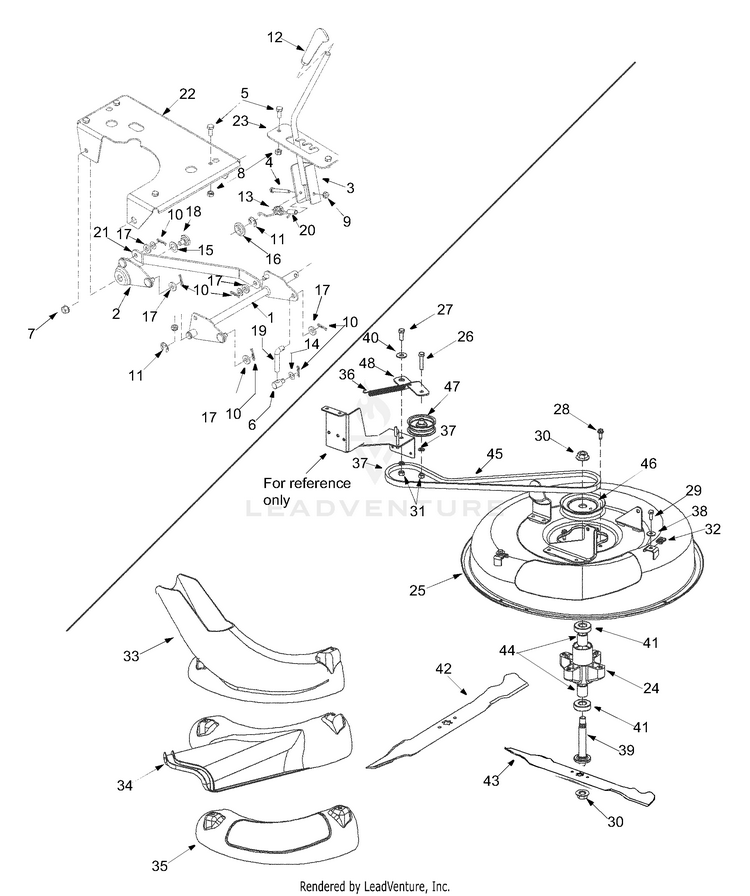

Deck & Lift Assembly

...
...
1
LIFT SHAFT ASSEMBLY MTD-683-0441
...
2
PIVOT BRACKET ASSEMBLY MTD-683-0442
...
3
BRACKET ASSEMBLY-HNDL LIFT MTD-683-0448
...
4
Hex Bolt 1/4-20 x 2.25 MTD-710-0641
...
5
Hex Bolt M8-1.25: 20 MTD-710-1681
...
6
Ferrule 3/8-24 Thd. MTD-911-0832
...
7
Flange Lock Nut 3/8-16 MTD-912-0431
...
8
Hex Lock Nut M8-1.25 MTD-712-0692
...
9
LOCK NUT 1/4 MTD-912-3027
...
10
Hairpin Clip MTD-714-0104
...
11
E-Ring MTD-716-0106A
...
12
HANDLE GRIP MTD-731-2509
...
13
TORSION SPRING MTD-732-1020
...
14
Thrust Washer .375 x .70 x .030 MTD-736-0314
...
15
FLAT WASHER MTD-936-0336
...
16
FLANGE WASHER MTD-736-0341B
...
17
Flat Washer .407 x .812 x .135 MTD-736-3010
...
18
Shoulder Screw .625 x .17: 3/8-16 MTD-738-0281
...
19
LIFT ADJUSTMENT LINK MTD-747-1247
...
20
Spacer MTD-750-0566A
...
21
LINK LIFT BRACKET MTD-783-1136
...
22
HANGAR BRACKET MTD-783-1138
...
23
INDEX BRACKET MTD-783-1143
...
24
BLADE SPINDLE HOUSING MTD-619-0020
...
25
42" DECK ASSEMBLY MTD-683-0439
...
26
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
27
Hex Bolt 3/8-16 x 1.0 MTD-710-0514
...
28
TT Screw 5/16-18 x 0.875 MTD-710-0650
...
29
WING BOLT M8-1.25 x 20MM MTD-710-04041
...
30
HEX NUT MTD-712-0417A
...
31
HEX NUT 3/8-16 GR5 MTD-712-3017
...
32
U-TYPE SPEED NUT MTD-726-0365
...
33
CHUTE-ELBOW 60.5CMDK LUV MTD-731-2361A
...
34
Side-Discharge Chute MTD-731-2477
...
35
Mulch Plug MTD-731-2505
...
36
Extension Spring MTD-732-0814
...
37
Lock Washer MTD-736-0169
...
38
FLAT WASHER MTD-736-0701
...
39
Spindle Shaft MTD-738-0933
...
40
SHOULDER SPACER MTD-938-0968
...
41
BALL BEARING MTD-741P0919B
...
42
BLADE (BAGGING ) (If equipped) MTD-942-0667
...
43
24" BLADE (3N1) (STAR) MTD-742-0760A-0637
...
44
Spacer MTD-750-1000
...
45
Belt: V Type MTD-954-0495
...
46
Deck Pulley MTD-756-0969
...
47
Flat Idler Pulley MTD-756-04224
...
48
IDLER BRACKET MTD-783-1122
Schematic Image Zoomed
