Yard Machines 13A4065-129 (2003) Lawn Tractor

Model: 13A4065-129 (2003)

Back To Assemblies

Save Part Not Listed?
product name

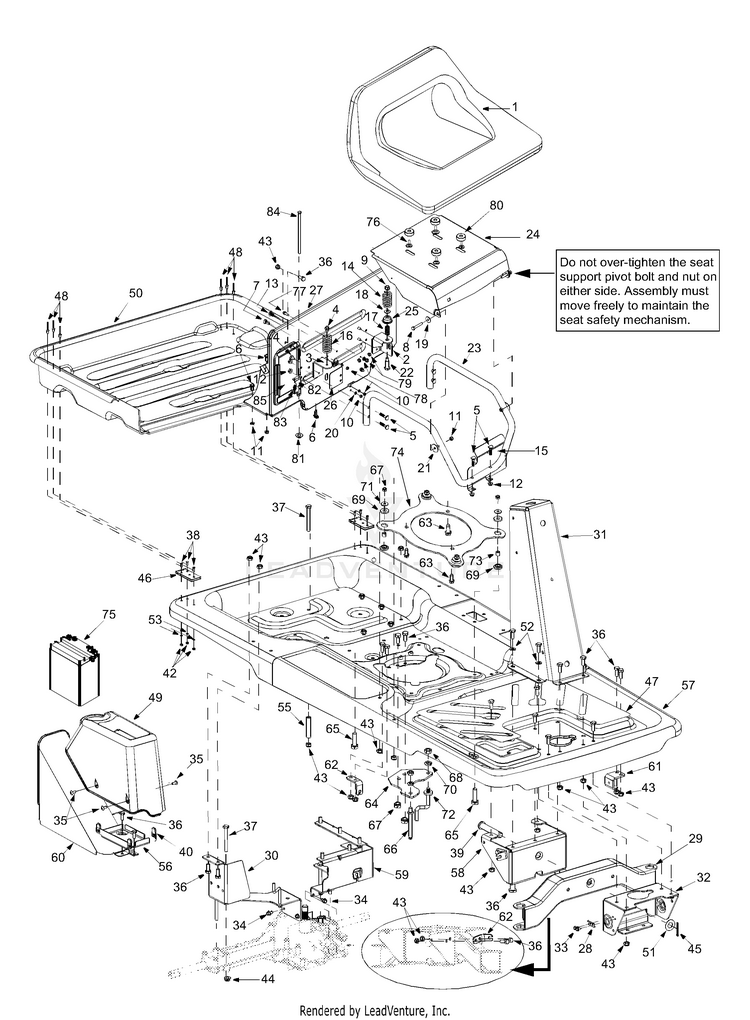

Frame, Seat, Front Axle

...
...
1
MEDIUM BACK SEAT MTD-757P06245
...
2
BRACKET ASSEMBLY-SUPPORT MTD-683-0575
...
3
BRACKET ASSEMBLY-SUPPORT MTD-683-0576
...
4
TT Screw 5/16-18 x 0.625" MTD-710-0604A
...
5
Carriage Bolt 5/16 x 1.5" MTD-710-1250
...
6
Hex Bolt M8-1.25: 20 MTD-710-1681
...
7
Special Screw M6-1: 16 MTD-710-1690
...
8
SCREW M8-1.25 x 45 MTD-710-1703
...
9
Flange Lock Nut 3/8-16 MTD-912-0431
...
10
HEX NUT MTD-712-0689
...
11
Hex Lock Nut M8-1.25 MTD-712-0692
...
12
HEX FLANGE NUT MTD-712-3004A
...
13
Ratchet Clip MTD-726-3046
...
14
COMPRESSION SPRING MTD-732-0735A
...
15
Engine Heat Deflector MTD-783-04184
...
16
SPRING-COMP 1.314 OD x 3"L MTD-732-0996
...
17
COMPRESSION SPRING MTD-732-0997
...
18
Bell Washer .375 x .870 x .063 MTD-736-0105
...
19
Bushing, Shoulder, .320 ID x .135 MTD-936-0289
...
20
LOCK WASHER MTD-736-0648
...
21
FLAT WASHER MTD-736-0743
...
22
Shoulder Screw MTD-738-1014
...
23
SEAT SUPPORT TUBE MTD-749-1264
...
24
BRACKET:SEAT:W/CHOKE MTD-783-04005
...
25
SPACER CUP MTD-783-0733
...
26
Bag Switch Cover MTD-783-04279
...
27
Seat Support Bracket MTD-783-04278
...
28
Switch Plate MTD-17962
...
29
PIVOT BAR ASSEMBLY MTD-683-0142
...
30
BRACKET ASSEMBLY MTD-683-0581
...
31
COLUMN BRACKET ASSEMBLY MTD-683-0591
...
32
BRACKET ASSEMBLY MTD-683-0593
...
33
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
34
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
35
Machine Screw MTD-710-0642
...
36
Hex Screw M8-1.25: 20 MTD-710-1681
...
37
SCREW M8-1 x 70 MTD-710-1708
...
38
SCREW M4-1 x 12 MTD-710-1752
...
39
Clevis Pin MTD-711-1165
...
40
SPEED NUT 1/4-20 MTD-712-0185
...
42
HEX NUT MTD-712-0640
...
43
Hex Lock Nut MTD-712-0692
...
44
Flange Lock Nut Important: Torque: 19.8-26.6 n.-m. or 175-235 in.-lbs. MTD-712-0714
...
45
Cotter Pin MTD-714-0470
...
46
HINGE-TRAY MTD-723-0491
...
47
FOOT PAD A MTD-723-0604A
...
48
Rivet MTD-728-04000
...
49
BATTERY COVER MTD-731-04013
...
50
BAG TRAY MTD-731-2360
...
51
Flat Washer .64 x 1.24 x .06 MTD-736-0187
...
52
Flat Washer 8.4 x 16 MTD-736-0700
...
53
LOCK WASHER MTD-736-0765
...
55
SPACER MTD-750-1293
...
56
BATTERY SUPPORT BRACKET MTD-783-04004-0689
...
57
FRAME-MAIN MTD-783-1081A
...
58
SUPPORT BRACKET PIV MTD-783-1097
...
59
SUPPORT BRACKET (LH) MTD-783-1101
...
60
CHUTE BRACKET MTD-783-1148
...
61
BRACKET-STOP PIVOT MTD-783-1260
...
62
CABLE BRACKET MTD-783-1292
...
63
TT Sems Screw 3/8-16 x 1.0 MTD-710-0654A
...
64
KEEPER BRACKET MTD-783-1294
...
65
SCREW M8-1.25X30 MTD-710-1683
...
66
GUARD PIN MTD-711-1065
...
67
Lock Nut M8-1.25 MTD-712-0692
...
68
HEX NUT 5/16-18 MTD-712-3010
...
69
Engine Mount: Gromm. MTD-722-0153
...
70
Lock Wash. 5/16" I.D. MTD-936-0119
...
71
FLAT WASHER MTD-736-0701
...
72
BELT KEEPER ROD MTD-747-1292
...
73
SPACER MTD-950-0539
...
74
PLATE-MOUNT MTD-783-1120
...
75
BATTERY MTD-753-0607
...
76
Self-Tapping Screw 3/8-16 x 1.250 MTD-710-1315
...
77
Self-Tapping Screw 1/4-20 x 0.75 MTD-710-0642
...
78
Lock Washer MTD-736-0222
...
79
Hex Sems Nut 1/4-20 MTD-712-0271
...
80
SPACER MTD-738-04008
...
81
PUSH NUT MTD-726-0106
...
82
Bag Hinge Bracket MTD-783-04238
...
83
Torsion Spring MTD-732-04094
...
84
Hinge Pin MTD-711-04133
...
85
Bag Chute Door Assembly MTD-683-04068
