Yard Machines 13A326JC700 (2017) Lawn Tractor

Model: 13A326JC700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

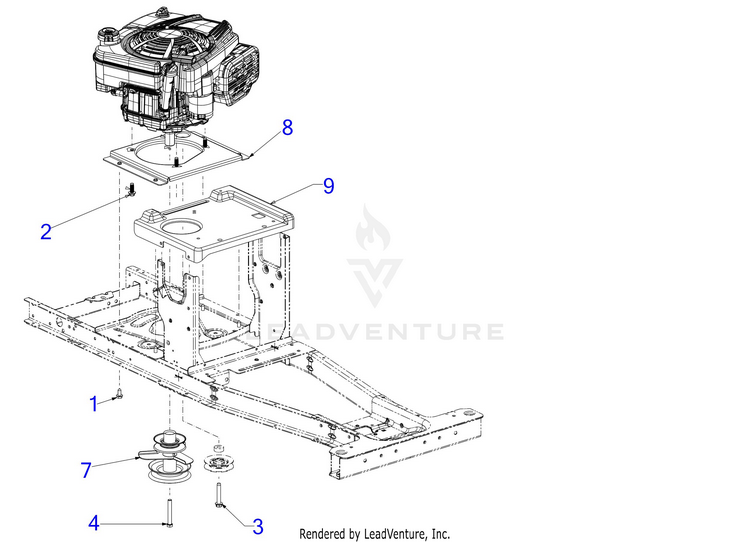

Engine Accessories

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 3/8-16 x 1 MTD-710-04683C
...
3
SCREW 3/8-16 x 2.250 MTD-710-05446
...
4
SCREW 3/8-24 x 2.75 GR5 MTD-710-1273
...
7
PULLEY-4.46 DIA/3.39 DIA MTD-756-05002
...
8
ENGINE PLATE MOUNT MTD-783-07403-0637
...
9
SEAT PLATE 24" MTD-783-08115-0637
...
xx
OIL:SAE 10W30 MTD-NSOIL
...
xx
GENUINE FACTORY PARTS® 32 oz 10W30 oil Retail Package Part MTD-490-000-F044
