Yard Machines 13A326JC700 (2017) Lawn Tractor

Model: 13A326JC700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

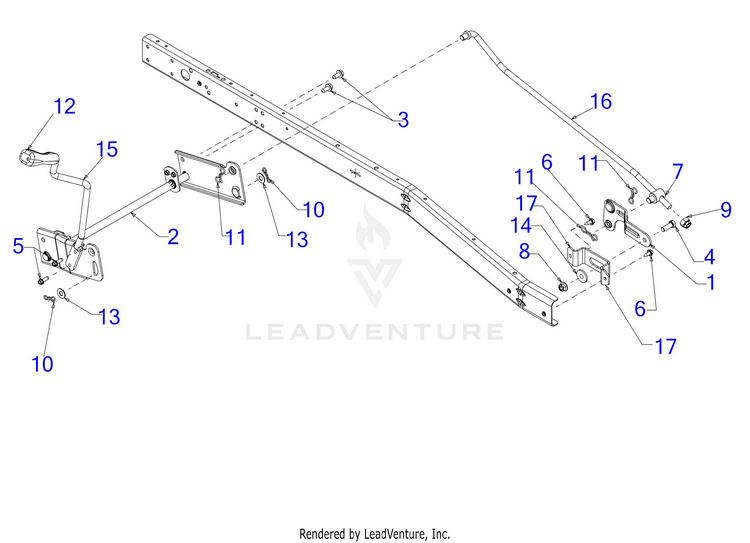

Deck Lift

...
...
1
FRONT BRACKET ASSEMBLY(POWDER BLACK) MTD-683-05011A-0637
...
2
LIFT SHAFT ASSEMBLY MTD-683-05018-0637
...
2
PEDAL SUPPORT BRACKET (Not Shown) MTD-783-04536B
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
5
SCREW 1/4-20 x .750 MTD-710-0642
...
6
SCREW 1/4-20X.625 MTD-710-1652
...
7
FERRULE MTD-711-05690C
...
8
NUT MTD-712-04065
...
9
NUT MTD-712-04243
...
10
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
11
PIN:COTTER MTD-714-04043
...
12
HANDLE GRIP MTD-720-0311
...
13
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
14
SHOULDER SPACER MTD-938-0347
...
15
Deck Lift Rod MTD-747-05576
...
16
DECK LINK ROD MTD-747-06009
...
17
DECK HANGER BRACKET (LH) MTD-783-08073B-0637
