Yard Machines 13A326JC700 (2017) Lawn Tractor

Model: 13A326JC700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

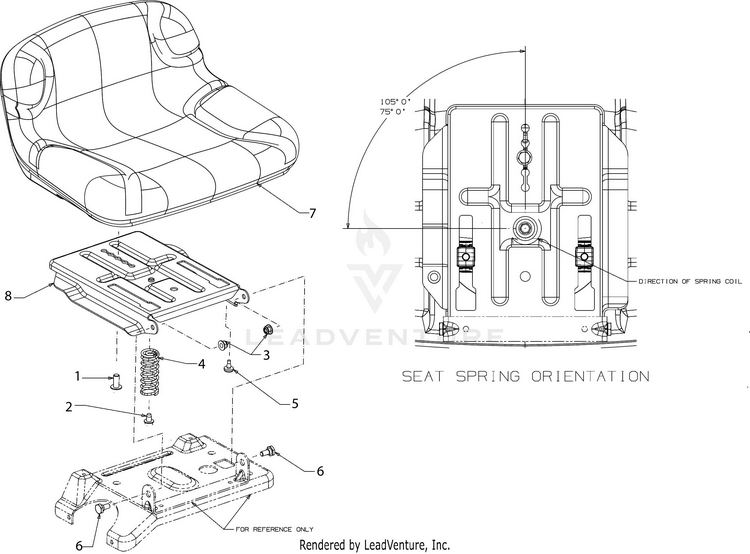

Seat

...
...
1
SCREW 3/8-16 x .875 GR5 MTD-710-04482
...
2
SCREW 5/16-18 x .500 MTD-710-0607
...
3
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
4
SEAT SPRING MTD-732-04905
...
5
Bumper, Rubber MTD-735-0199A
...
6
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
7
LOW BACK SEAT, BLACK (3 PT) MTD-757-05230
...
8
MANUAL SEAT ADJUSTMENT BRACKET MTD-783-07213A-0637
