Yard Machines 13A326JC700 (2017) Lawn Tractor

Model: 13A326JC700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

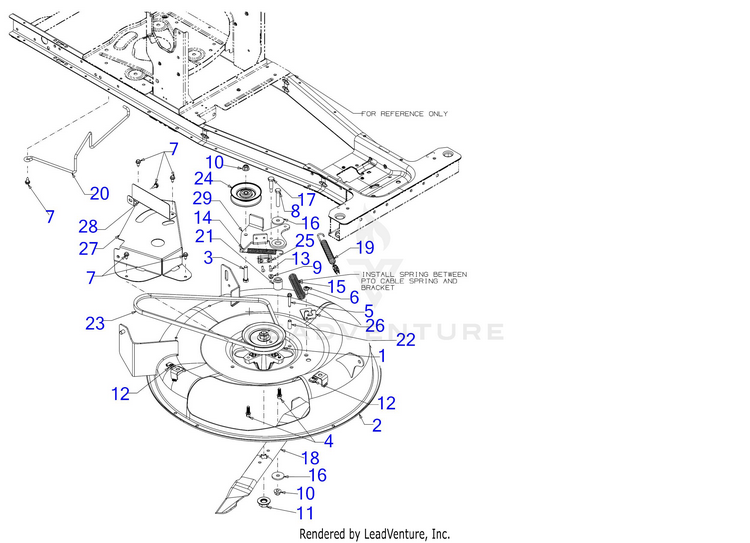

Deck

...
...
1
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-918-06032
...
2
24" MOWER DECK (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-983-05008B-0637
...
3
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
4
SCREW 5/16-18 X .875 MTD-710-06322
...
5
SCREW 1/4-20 x 1.50" MTD-710-0778
...
6
SCREW 5/16-18 x .750 MTD-710-1611B
...
7
SCREW 1/4-20X.625 MTD-710-1652
...
8
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
9
FLANGE LOCK NUT MTD-712-04064
...
10
NUT MTD-712-04065
...
11
HEX NUT MTD-712-0417A
...
12
U-Nut 5/16-18 Thd. MTD-726-0211
...
13
POP RIVET MTD-928-0173
...
14
EXTENSION SPRING MTD-932-0470A
...
15
SPRING MTD-732-0583
...
16
WASHER MTD-736-0320
...
17
SHOULDER SCREW MTD-938-0572
...
18
24" BLADE (3N1) (STAR) MTD-742-0760A-0637
...
19
PTO CABLE MTD-946-05009
...
20
DECK BELT KEEPER MTD-747-06421
...
21
SHOULDER SPACER 18MM x 5.2MM MTD-750-04859C
...
22
SPACER MTD-750-0566A
...
23
V-BELT A x 43.5 MTD-954-05001
...
23
GENUINE FACTORY PARTS® 30" Mini CR-12 Deck Belt 754-05001, 954-05001 Retail Packaged Part MTD-490-501-F065
...
24
PULLEY-3.54" DIA MTD-756-05004
...
25
SPINDLE BRAKE PAD MTD-761-04017
...
26
ENGAGEMENT CABLE BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-06243
...
27
SPINDLE COVER 24" MTD-783-08136B-0637
...
28
DECK SHIELD (LH) MTD-783-08151-0637
...
29
IDLER BRACKET DECK MTD-783-08756
