Yard Machines 13A326JC700 (2017) Lawn Tractor

Model: 13A326JC700 (2017)

Back To Assemblies

Save Part Not Listed?
product name

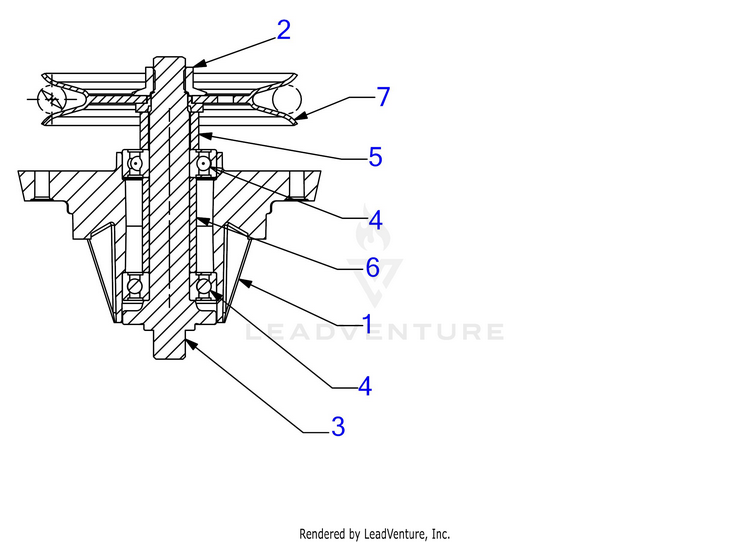

Spindle

...
...
1
DECK SPINDLE HOUSING (W/O FTG) MTD-719-07293-M
...
2
FLANGE NUT 5/8-18 MTD-712-05134
...
3
SPINDLE SHAFT MTD-738-0933
...
4
BALL BEARING MTD-741P0919B
...
5
SPACER .820X1.15X.730 MTD-748-0433
...
6
SPACER- .792 x 1.060 x 1.860 MTD-750-04936
...
7
PULLEY MTD-756-0969
...
xx
SPINDLE ASSEMBLY MTD-918-06032
