Yard Machines 13A326JC700 (2016) Lawn Tractor

Model: 13A326JC700 (2016)

Back To Assemblies

Save Part Not Listed?
product name

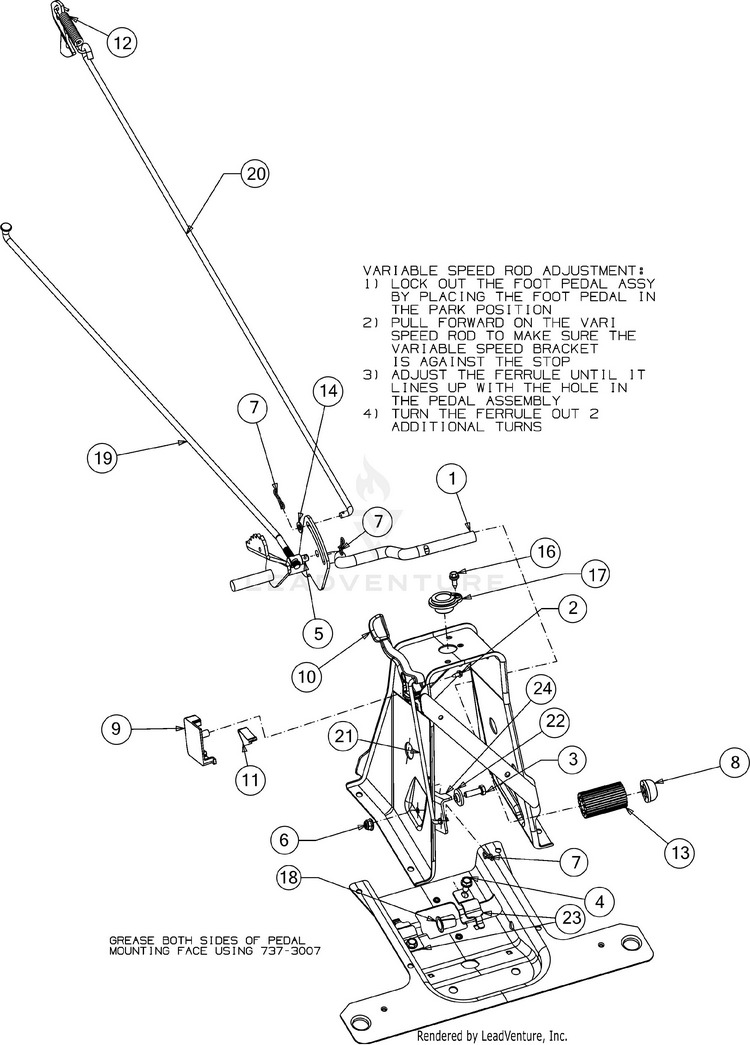

Pedals

...
...
1
BRAKE PEDAL ASSEMBLY MTD-683-05017B
...
2
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
3
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
FERRULE 3/8-24 x .375 MTD-711-06103
...
6
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
7
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
8
PUSH CAP MTD-726-0214
...
9
6 SPEED CONTROL COVER MTD-731-08656B
...
10
6 SPEED LEVER MTD-731-08743B
...
11
SHIFT SPRING MTD-732-04937
...
12
EXTENSION SPRING .59 OD x 4.0 MTD-732-05464A
...
13
FOOT PAD 2.5 LG" MTD-735-04279
...
14
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
16
SHOULDER SCREW MTD-738-04184A
...
17
FLANGE BEARING MTD-741-0356A
...
18
FLANGE BEARING .626 x .938 x .875 MTD-741-05135
...
19
VARIABLE SPEED ROD MTD-747-05506
...
20
BRAKE ROD MTD-747-06033A
...
21
SPEED SELECT ROD MTD-747-06449
...
22
SHOULDER SPACER MTD-748-0234
...
23
BRAKE SHAFT STRAP MTD-783-05940
...
24
SPEED LATCH BRACKET MTD-783-08116C
