Yard Machines 13A326JC700 (2016) Lawn Tractor

Model: 13A326JC700 (2016)

Back To Assemblies

Save Part Not Listed?
product name

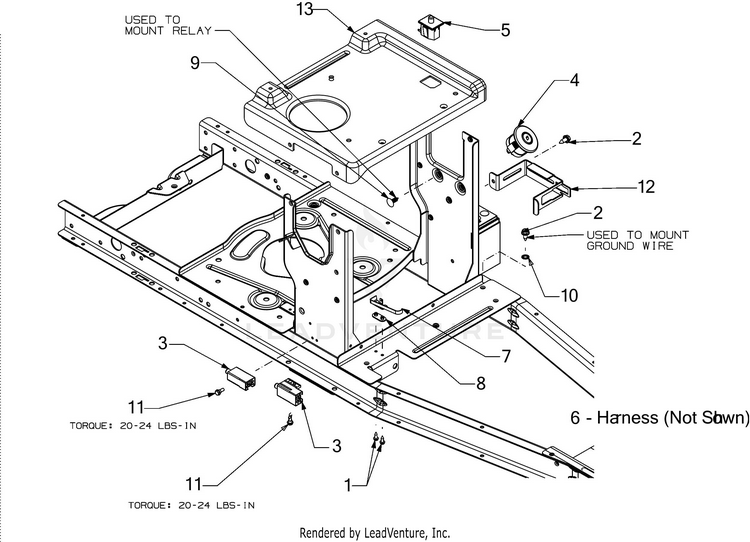

Electrical

...
...
1
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
2
SCREW 1/4-20X.625 MTD-710-1652
...
3
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
4
3 POSITION KEY SWITCH MTD-925-04659
...
5
SEAT SWITCH MTD-925-05013
...
6
HARNESS (6SPD/ELEC) MTD-925-06044B
...
7
SPRING SWITCH MTD-725-1643
...
8
INSULATOR PLATE MTD-926-0320
...
9
RATCHET CLIP .250 MTD-726-3046
...
10
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
11
SHOULDER SCREW MTD-738-04237A
...
12
BATTERY TRAY MTD-783-08015A-0637
...
13
SEAT PLATE 24" MTD-783-08115-0637
