Yard Machines 13A326JC700 (2016) Lawn Tractor

Model: 13A326JC700 (2016)

Back To Assemblies

Save Part Not Listed?
product name

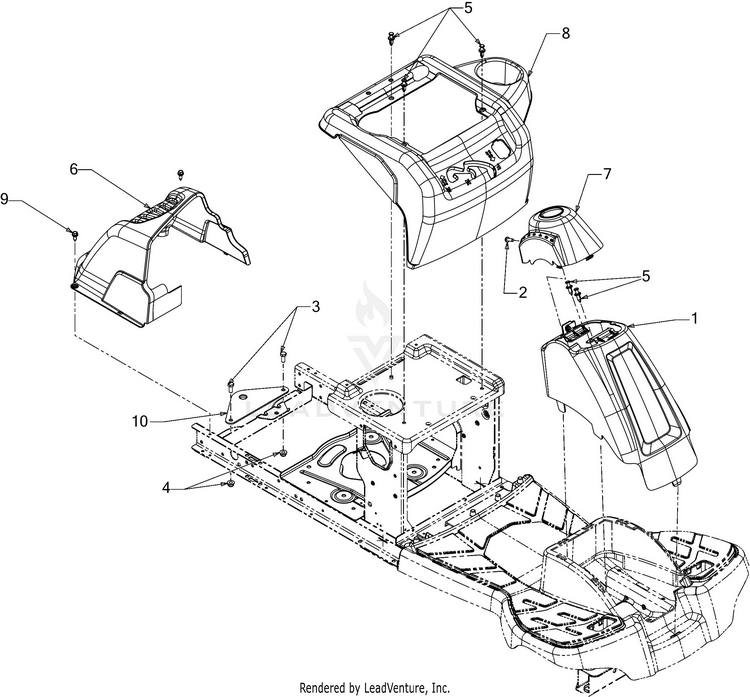

Fender

...
...
1
COLUMN COVER ASSEMBLY (MTD RED) MTD-631-05038
...
1
U NUT Not Shown MTD-712-04092
...
2
SCREW 1/4-20X.75 MTD-710-0924
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
5
PLASTIC RIVET MTD-728-0199
...
6
DRIVE COVER MTD-731-09318
...
7
COLUMN STEERING CAP MTD-731-09382
...
8
FENDER (MTD RED) MTD-931-09396B
...
9
SHOULDER SCREW MTD-738-04184A
...
10
HITCH PLATE MTD-783-07208A-0637
