Yard Machines 13A326JC700 (2015) Lawn Tractor

Model: 13A326JC700 (2015)

Back To Assemblies

Save Part Not Listed?
product name

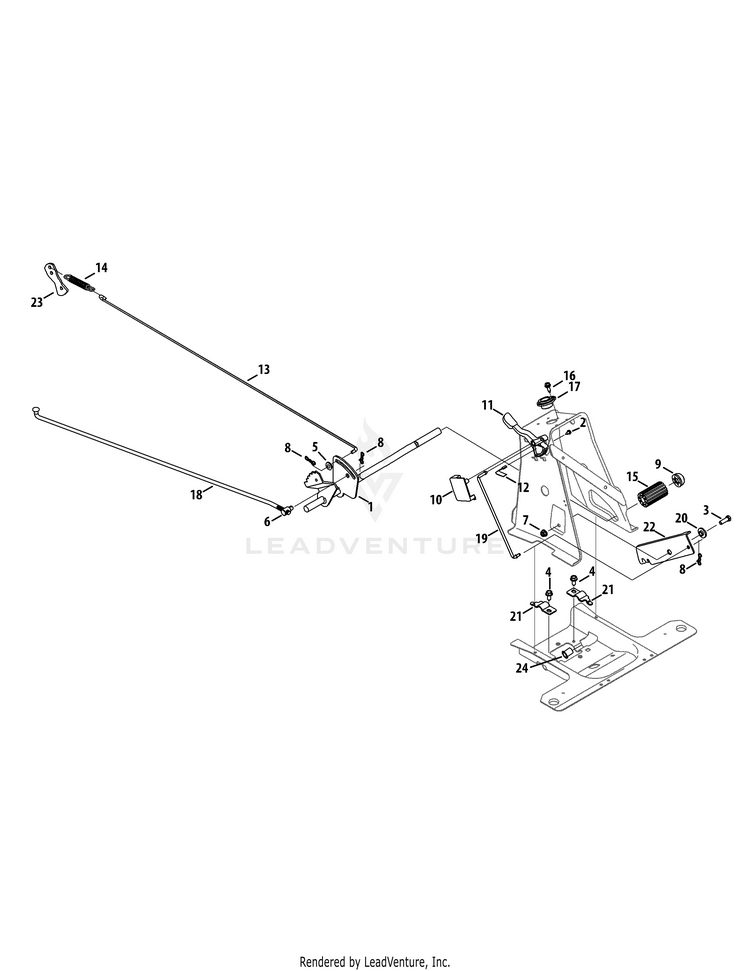

Pedal Controls

...
...
1
BRAKE PEDAL ASSEMBLY (POWDER BLACK) MTD-683-05017B-0637
...
2
Screw, #10-16:0.500 MTD-910-0224
...
3
Hex Head Scerw, 5/16-18:1.00 MTD-710-0376
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
6
Ferrule 3/8-24 X .375 Dia. MTD-711-06103
...
7
Flange Lock Nut, 5/16-18 MTD-712-04063
...
8
Bow-Tie Cotter Pin, 72 MTD-714-04040
...
9
Push Cap, 5/8 MTD-726-0214
...
10
6 SPEED CONTROL COVER MTD-731-08656B
...
11
Speed Lever, 6-SPEED MTD-731-08743B
...
12
Shift Spring MTD-732-04937
...
13
Brake Rod MTD-747-06033A
...
14
Extension Spring, .59 OD x 4.00 LG MTD-732-0716D
...
15
Foot Pad, 2.5" LG. MTD-735-04279
...
16
Shoulder Screw, .368 X.113, 1/4-20 MTD-738-04184A
...
17
Steering Col. Bearing, .880 ID X 1.36 MTD-741-0356A
...
18
Variable Speed Control Rod MTD-747-05506
...
19
Speed Selector Control Rod MTD-747-06449
...
20
Shoulder Spacer MTD-748-0234
...
21
Pedal Strap Support Bracket, 5/8 MTD-783-05940
...
22
SPEED LATCH BRACKET MTD-783-08116C-0637
...
23
Brake lever Bracket MTD-717-0772B
...
24
Flange Bearing, .626 x .938 x .875 MTD-741-05135
