Yard Machines 13A326JC700 (2014) Lawn Tractor

Model: 13A326JC700 (2014)

Back To Assemblies

Save Part Not Listed?
product name

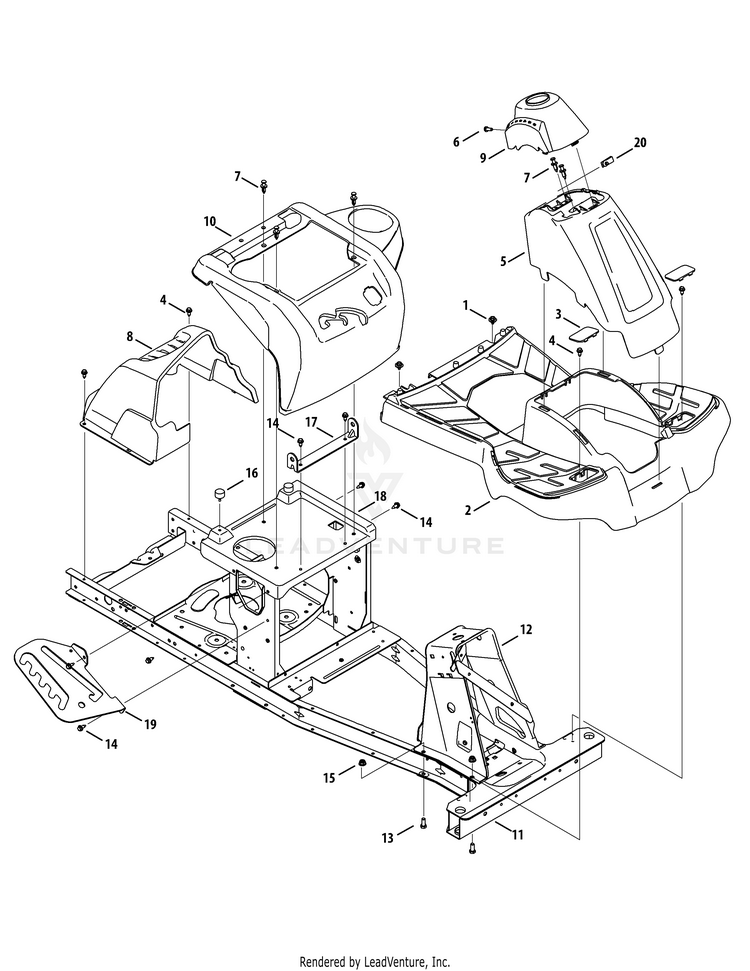

Frame & Fender

...
...
1
Screw, 1/4-20 x .500 MTD-710-05073
...
2
RUNNING BOARD MTD-931-09604
...
3
RUNNING BOARD PLUG MTD-731-08753B
...
4
Shoulder Screw, .368 X.113: 1/4-20 MTD-738-04184A
...
5
Column Cover (MTD Red) MTD-631-05038
...
6
Machine Screw, 1/4-20, 0.750 MTD-710-0924
...
7
Rivet, .3125 MTD-728-0199
...
8
Drive Cover MTD-731-09318
...
9
Steering Column Cap (MTD Red) MTD-731-09382
...
10
FENDER (MTD RED) MTD-931-09396B
...
11
FRAME ASSEMBLY (POWDER BLACK) MTD-683-05015-0637
...
12
COLUMN ASSEMBLY (POWDER BLACK) MTD-683-05019-0637
...
13
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
14
Tap Screw, 1/4-20, .625 MTD-710-1652
...
15
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
16
Bumper, .62 Dia. x .50 MTD-735-05006
...
17
SEAT PIVOT BRACKET (POWDER BLACK) MTD-783-13996-0637
...
18
Seat Plate MTD-783-08115-0637
...
19
De ck Lift Index Bracket MTD-783-08260-0637
...
20
U-type Speed Nut, 1/4-20 MTD-712-04092
