product name

Yard Machines 13A2775S000 (2015) Lawn Tractor

Model: 13A2775S000 (2015)

Back To Assemblies

Save Part Not Listed?
product name

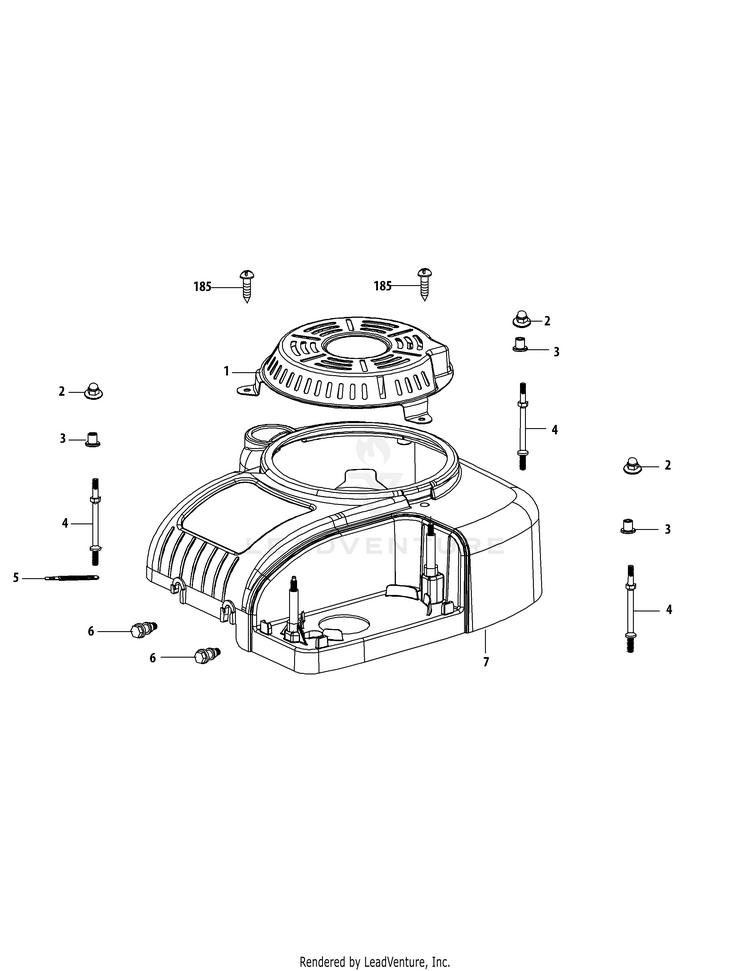

4P90JUC Engine Shroud

...
...
1
Debris Shield MTD-951-12205
...
2
Nut MTD-712-04290
...
3
Engine Shroud Spacer MTD-750-05320
...
4
Starter / Shroud Stud M6×99 MTD-951-14454
...
5
FLEXIBLE CLAMP MTD-951-11622A
...
6
Hook Bolt MTD-710-05305
...
7
Air Shield MTD-951-14455
...
185
Self-Tapping Bolt 5.5×25 MTD-710-05303
