Yard Machines 13A2775S000 (2015) Lawn Tractor

Model: 13A2775S000 (2015)

Back To Assemblies

Save Part Not Listed?
product name

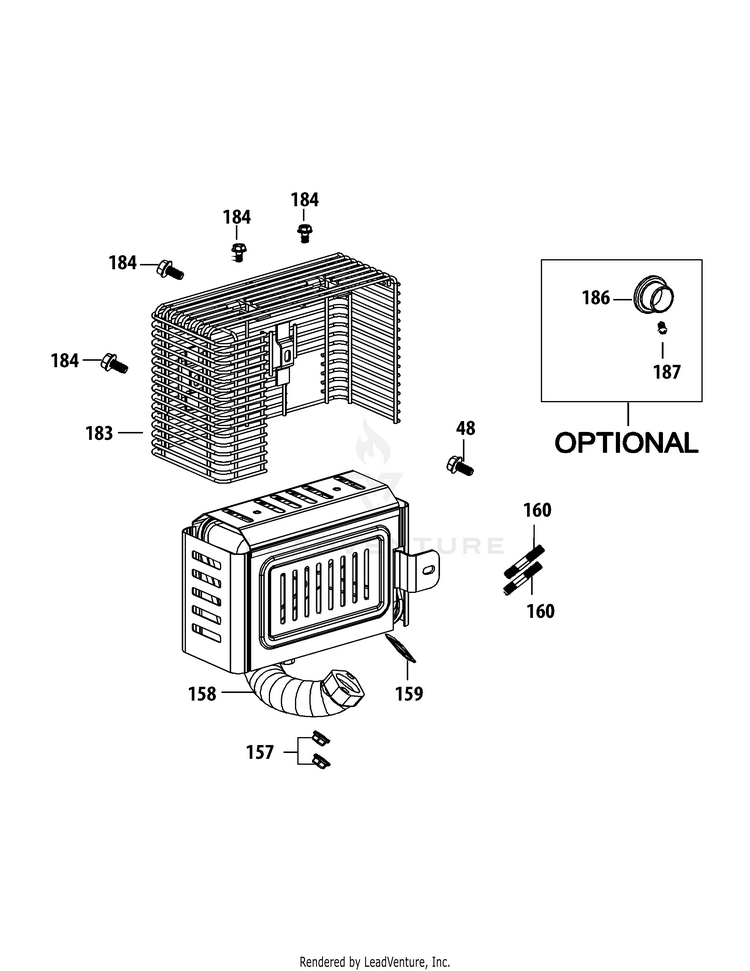

4P90JUC Muffler Assembly

...
...
48
Bolt M6×14 MTD-710-04916
...
157
Nut M8 MTD-712-04219
...
158
Muffler Assembly MTD-951-14468
...
159
Exhaust Pipe Gasket MTD-951-12271
...
160
Muff Stud M8×47 MTD-951-14459
...
160
Muffler Stud Assembly MTD-951-14464
...
183
Wire Mesh Shield MTD-951-12278
...
184
Bolt M6×12 MTD-710-05051
...
186
Spark Arrestor MTD-951-12329
...
187
Spark Arrestor Screw MTD-710-05344
Schematic Image Zoomed
