Yard Machines 13A226JD000 (2012) Lawn Tractor

Model: 13A226JD000 (2012)

Back To Assemblies

Save Part Not Listed?
product name

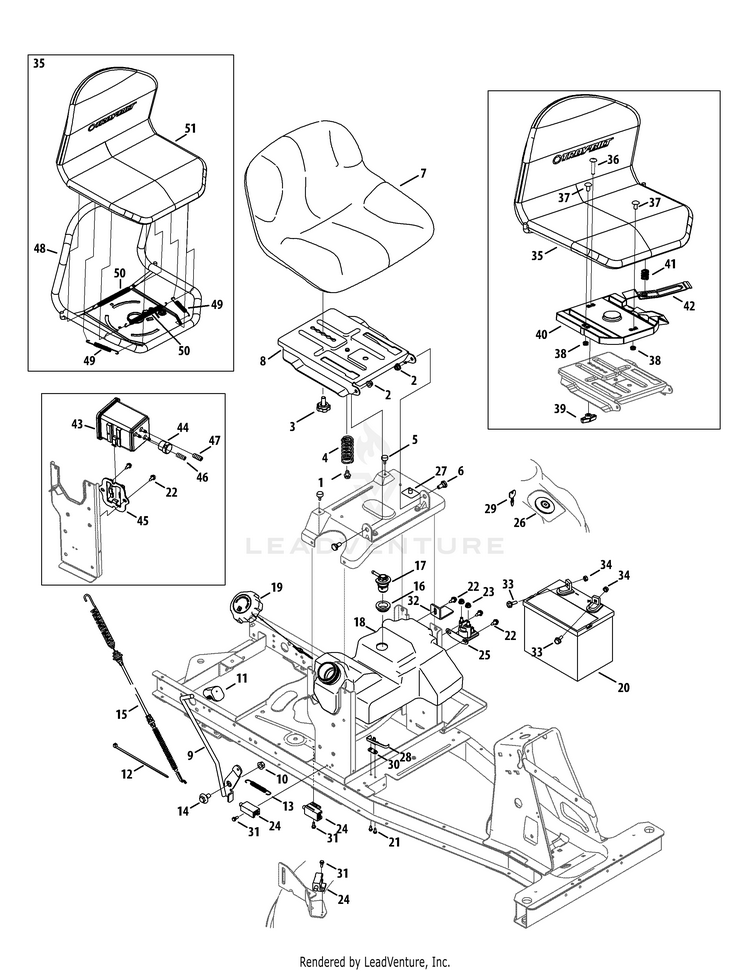

Seat, Fuel Tank & Electrical

...
...
1
Tap Screw, 5/16-18, 0.500 MTD-710-0607
...
2
Flange Lock Nut, 5/16-18 MTD-712-04063
...
3
Knob, 3/8-16, .875 MTD-720-04009A
...
4
Seat Spring MTD-732-04905
...
5
Bumper, .62 DIA X .3 MTD-735-0271A
...
6
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
7
MED BACK SEAT, BLACK (3 PT) MTD-757-05229
...
8
Seat Pivot Bracket MTD-783-07213A-0637
...
9
PTO Handle Assembly MTD-683-04754-0637
...
10
Flange Lock Nut, 3/8-16 MTD-712-04065
...
11
Handle Grip, 3/8 MTD-720-04049A
...
12
Cable Tie, 3/16 X .05 X 7.4 MTD-725-0157
...
13
EXTENSION SPRING .50 OD x 4.646 LG MTD-732-04956
...
14
Shoulder Bolt, .500 X .270:3/8-16 MTD-738-04554
...
15
PTO Cable MTD-946-04802A
...
16
Rubber Grommet MTD-735-04081
...
17
Rollover Valve MTD-751-12118
...
18
FUEL TANK ASSEMBLY MTD-651P08861
...
19
FUEL CAP W/12"TETHER VENTED MTD-951-12179C
...
20
BATTERY MTD-925-1707D
...
21
Screw, #8 MTD-710-0227
...
22
Tap Screw, 1/4-20, .625 MTD-710-1652
...
23
Flange Lock Nut, 1/4-20 MTD-712-04064
...
24
Interlock Switch MTD-725-04363
...
25
12V SOLENOID MTD-725-04439B
...
26
Three-Way Key Switch MTD-925-04659
...
27
Seat Switch MTD-925-05013
...
28
Switch Spring MTD-725-1643
...
29
Key MTD-925-1745A
...
30
Insulator Plate MTD-926-0320
...
31
Shoulder Screw, #10-32, .500 MTD-738-04237A
...
32
HOLD DOWN BRACKET MTD-783-07384-0637
...
33
Screw, Shoulder, .250 x .150 MTD-738-1132
...
34
Nut, Sems, 1/4-20 MTD-712-0271
...
35
Seat (not used in this application) MTD-NA
...
36
Carriage Bolt, 3/8-16 x 1.75 (not used in this application) MTD-NA
...
37
Carriage Bolt, 3/8-16 x .75 (not used in this application) MTD-NA
...
38
Nut, Jam, 3/8-16 (not used in this application) MTD-NA
...
39
Wing Knob, 3/8-16 (not used in this application) MTD-NA
...
40
Seat Pan Support (not used in this application) MTD-NA
...
41
Compression Spring, .845 OD x 1.00 (not used in this application) MTD-NA
...
42
Seat Bracket (not used in this application) MTD-NA
...
43
CARBON CANISTER (If equipped) MTD-951-10589
...
44
Vent Filter Canister MTD-951-10590
...
45
CARBON CANISTER ADAPTER BRACKET MTD-951-10610
...
46
Fuel Hose, White MTD-751-10749-30
...
47
Fuel Hose, Yellow MTD-751-10750-48
...
48
Seat Frame Assembly (not used in this application) MTD-NA
...
49
Extension Spring, .48 OD x 5.00 LG (not used in this application) MTD-NA
...
50
Extension Spring, 7.91 LG (not used in this application) MTD-NA
...
51
Seat Cover (not used in this application) MTD-NA
...
xx
Wiring Harness (not shown) MTD-725-06041
...
xx
FUSE-15 AMP (not shown) MTD-725-04009
