Yard Machines 13A226JD000 (2012) Lawn Tractor

Model: 13A226JD000 (2012)

Back To Assemblies

Save Part Not Listed?
product name

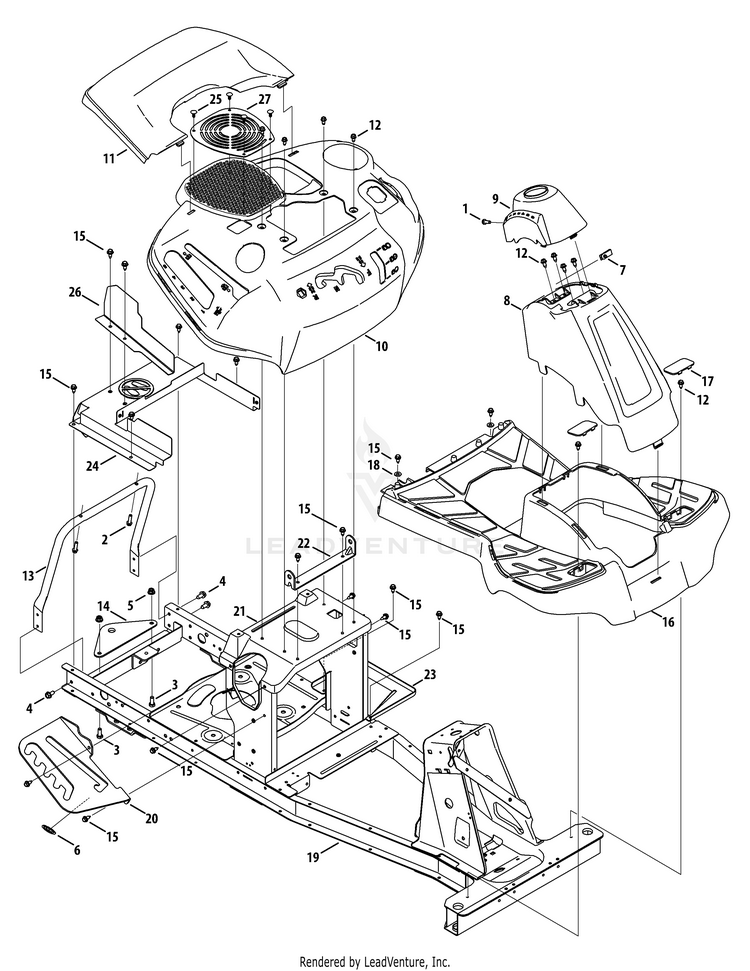

Frame & Fender

...
...
1
Machine Screw, 1/4-20, 0.750 MTD-710-0924
...
2
Hex Screw, 1/4-15, 1.000 MTD-710-1241
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Flange Locknut, 5/16-18 MTD-712-04063
...
6
Speed Nut MTD-726-0221
...
7
U-type Speed Nut, 1/4-20 MTD-712-04092
...
8
COLUMN COVER MTD-731-08633
...
9
Steering Column Cap MTD-731-08635
...
10
FENDER ASSEMBLY MTD-631-04655
...
11
REAR COVER MTD-731-08620A
...
12
Shoulder Screw, .368 X.113: 1/4-20 MTD-738-04184A
...
13
Rear Cover Support Tube MTD-749-04932-0637
...
14
HITCH PLATE MTD-783-07208A-0637
...
15
Tap Screw, 1/4-20, .625 MTD-710-1652
...
16
RUNNING BOARD MTD-731-08528A
...
17
RUNNING BOARD PLUG MTD-731-08753B
...
18
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
19
FRAME ASSEMBLY (POWDER BLACK) MTD-683-04751-0637
...
20
DECK LIFT BRACKET MTD-783-08260-0637
...
21
SEAT PAN (POWDER BLACK) MTD-783-13995-0637
...
22
SEAT PIVOT BRACKET (POWDER BLACK) MTD-783-13996-0637
...
23
Battery Tray MTD-783-07215-0637
...
24
DRIVE COVER MTD-783-07302
...
25
Clip, .250 Dia., (MTD Eng. 4P90JUA) Not Used in this application MTD-726-3046
...
26
CARBURETOR SHIELD Not Used in this application MTD-783-07388A
...
27
SCREEN COVER Not Used in this application MTD-783-07402-0637
